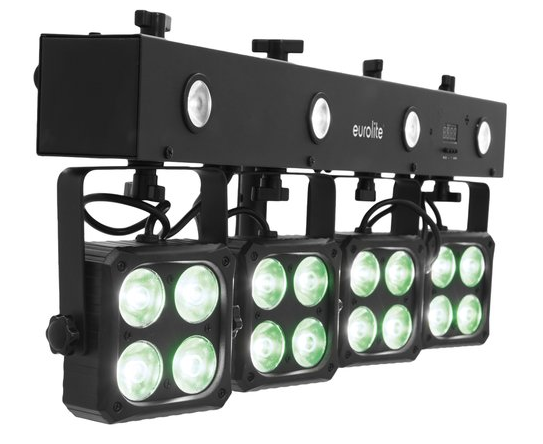

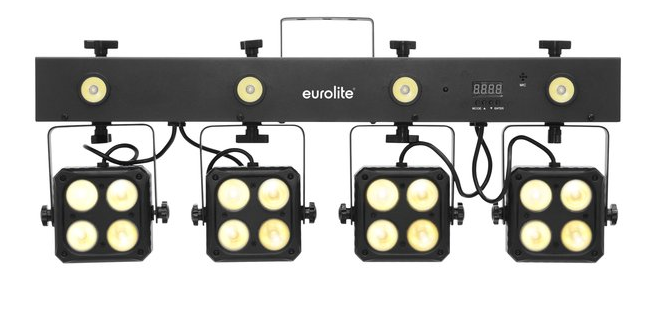

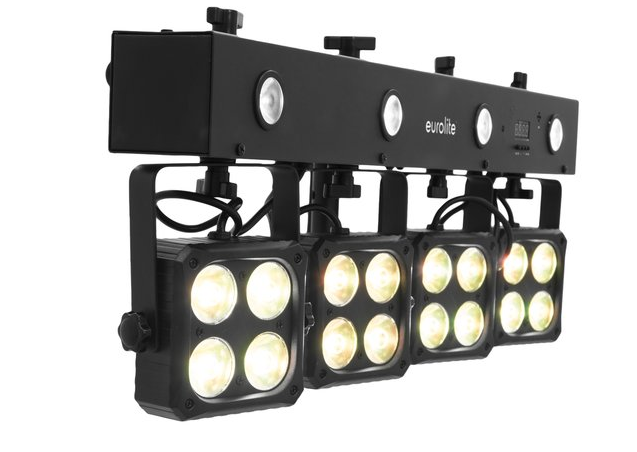

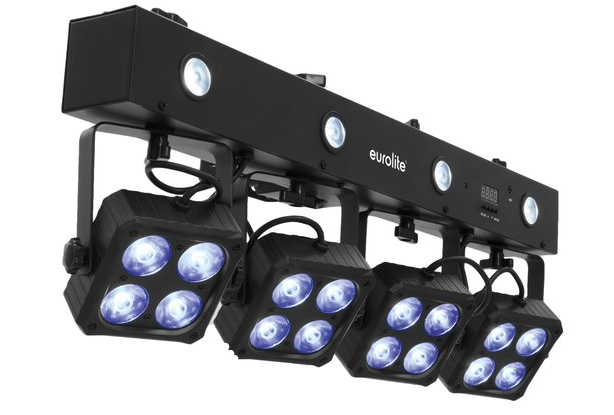

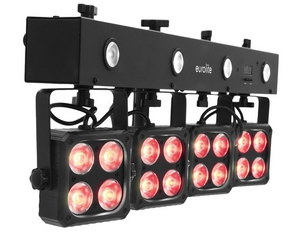

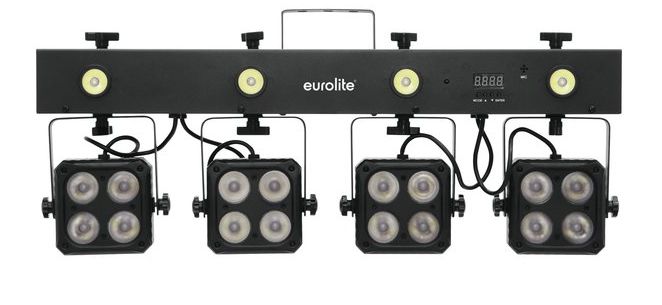

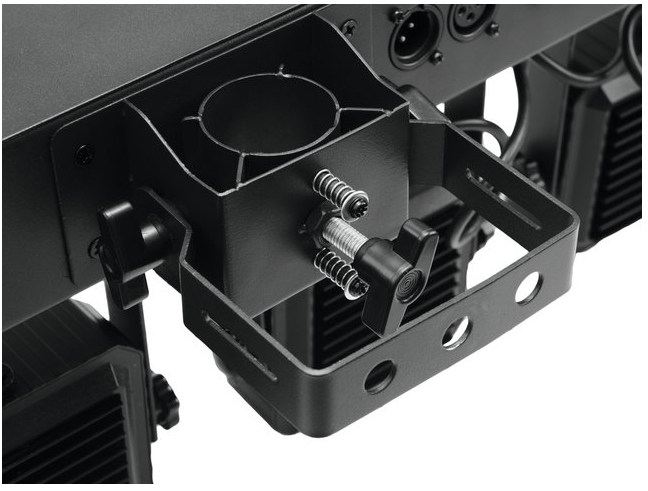

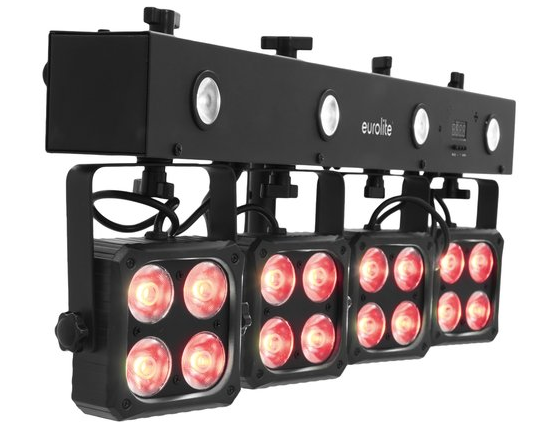

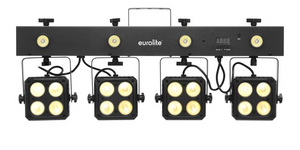

- Crossbar with integrated DMX control unit and stand sleeve
- Ultra-light ideally suited for mobile use
- Ideal for bands, stages or solo entertainers
- Suited for installation on a speaker stand (not included) or truss

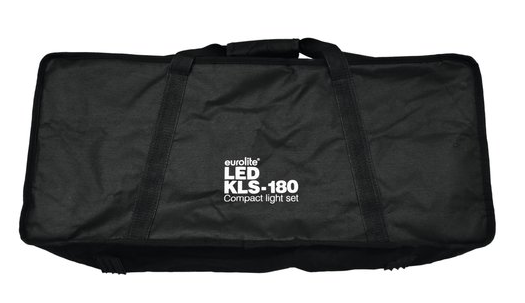

- Comes pre-assembled with practical transport bag

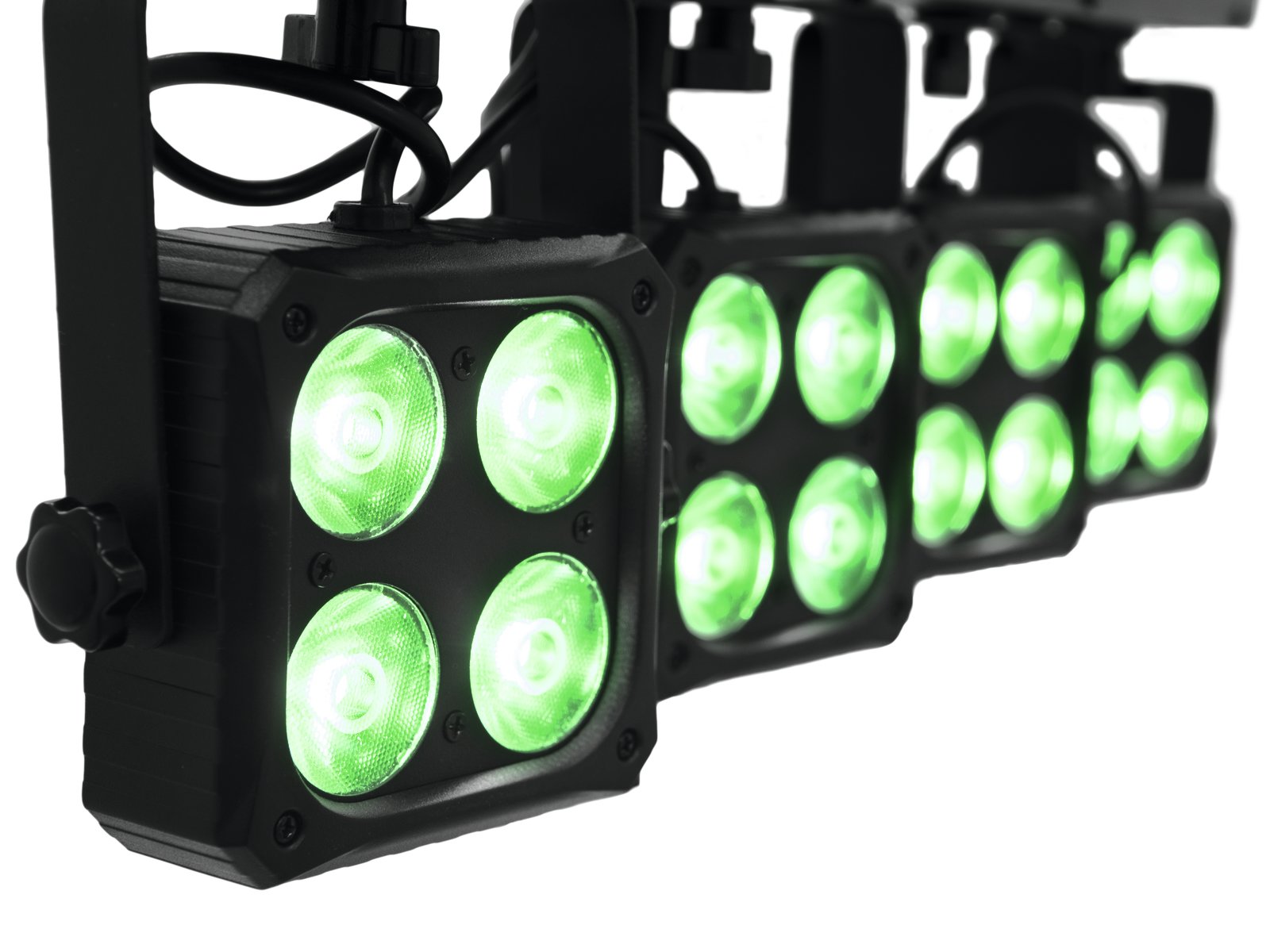

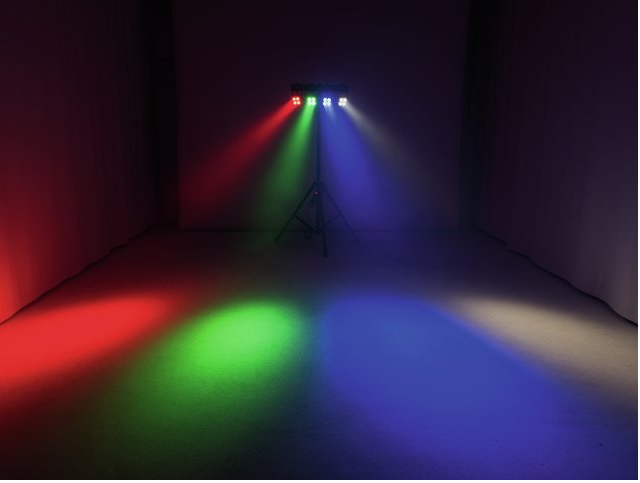

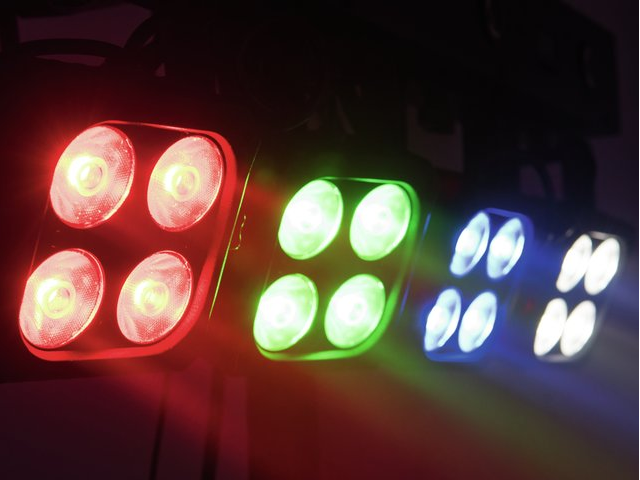

- 4 powerful 4in1 LEDs per spot provide for an exquisite RGBW color mix

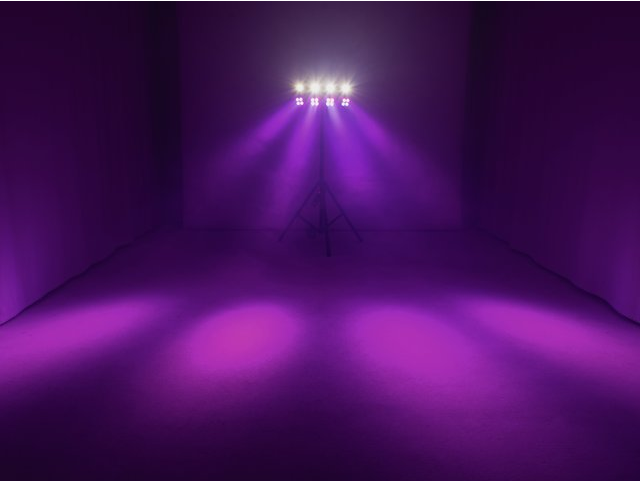

- Strobe effect with 4 white 1 W LEDs
- Movable and tiltable spotlights
- Via DMX, each spot can be individually controlled
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Sound-control via built-in microphone, microphone sensitivity adjustable
- Supports QuickDMX - the wireless DMX-system from Eurolite
- Built-in phantom fed socket for QuickDMX receiver (see accessories)
- 3, 4, 8 or 21 DMX channels selectable
- Functions: RGBW color mixture, color presets, built-in programs, strobe effects with variable speed, dimmer, sound-control, Master/Slave operation

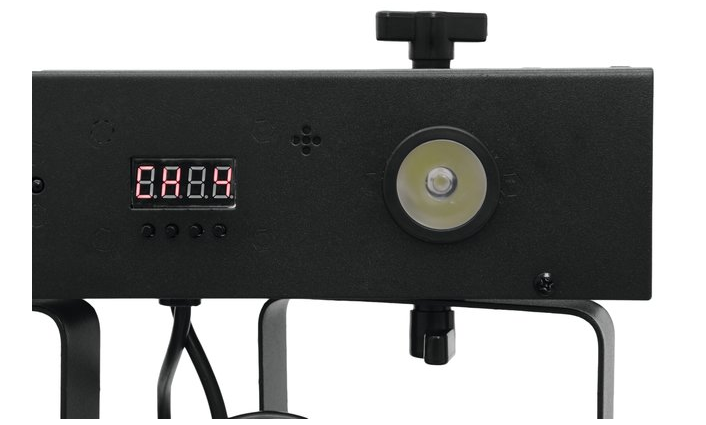

- Addressing and setting via control panel with 4-digit LED display

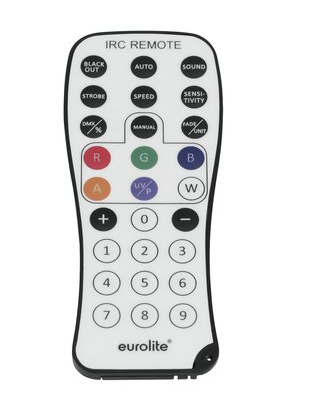

- Additional controlling possibility via the EUROLITE IR-7 remote control, included in delivery
- Black lacquered metal version with movable mounting bracket
- Especially low-noise operation due to convection cooling
- IEC terminals for power linking up to 8 units
- LED: Spot 4 x separate controlling each with 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix)
- LED: Strobe effect separate controlling 4 x high-power 1 W CW
- Control: IR remote control; QuickDMX via 5-pin XLR (M) mounting version (optional); Stand-alone; Sound to light via Microphone; DMX; preprogrammed in EASY SHOW
- Projection: flicker-free
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 80 W |
| IP classification: | IP20 |

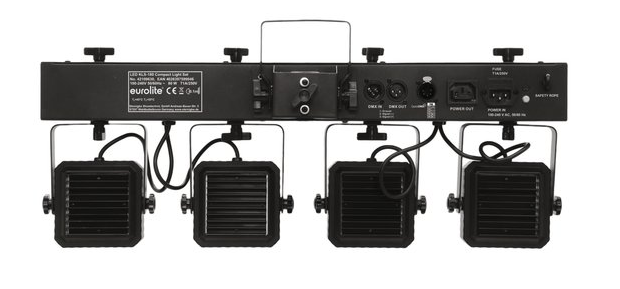

| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| LED: | Spot 4 x high-power 8 W 4in1 QCL RGBW (homogenous color mix) |
| Strobe effect 4 x high-power 1 W CW | |
| DMX channels: | 3; 4; 8; 21 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | passivcooling by convection |
| Control: | IR remote control |
| QuickDMX via 5-pin XLR (M) mounting version (optional) | |
| Stand-alone | |
| Sound to light via Microphone | |
| DMX | |
| preprogrammed in EASY SHOW | |
| Beam angle (1/2 peak): | 9° |
| Beam angle (1/10 peak): | 18° |
| Housing color: | Black |
| Width: | 60.5 cm |
| Height: | 23 cm |
| Depth: | 14 cm |
| Weight: | 4.85 kg |
| Remote control | |
| Battery: | 1 x Button cell 3.0 V CR2025 lithium manganese built-in |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
PACKAGING UNITS
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4026397599046 | 5,50 kg | 66cm x 19cm x 29cm |
