Martin JEM ZR35

Prezzo di listino
€913,00
Prezzo scontato
€913,00
Prezzo di listino
Esaurito
Prezzo unitario
per
Imposte incluse.

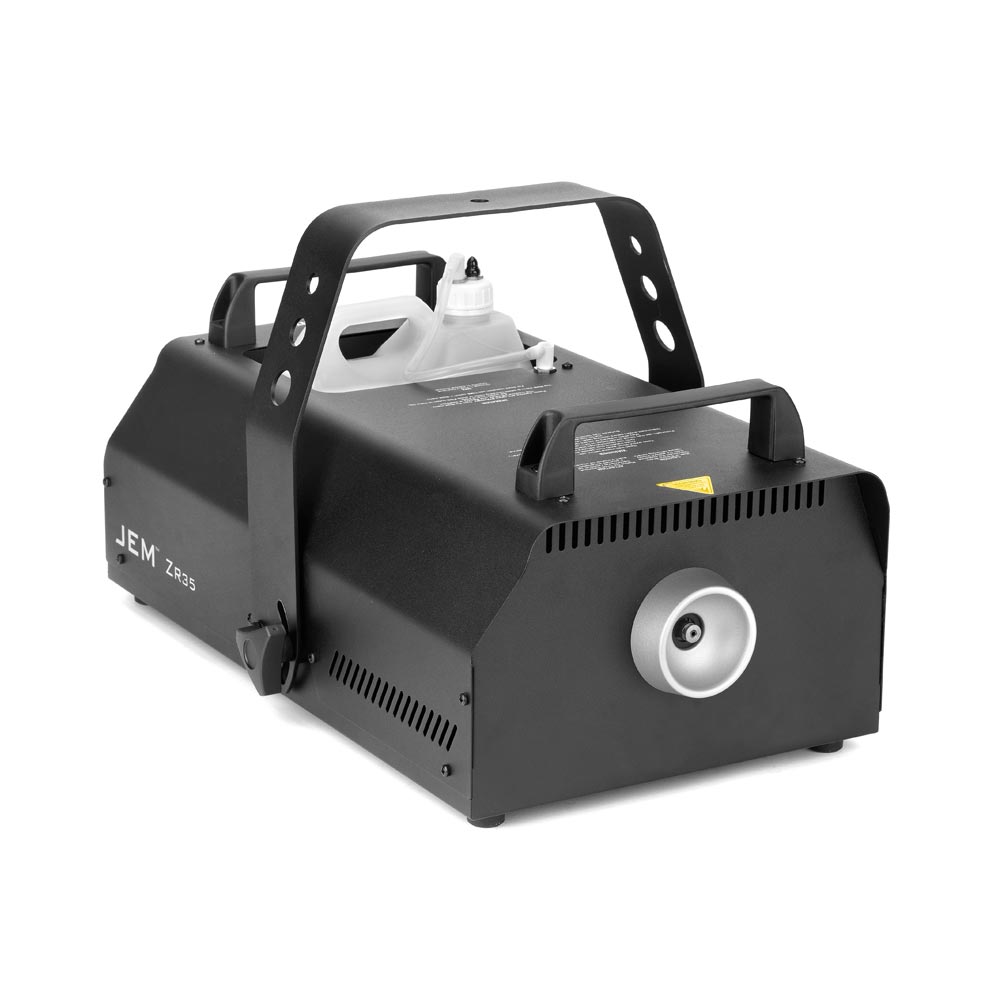

The JEM ZR35 is a mid-sized fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its powerful 1500 W heat exchanger, the JEM ZR35 produces a fantastic peak output ideal for mid to large-sized venues and stages in both install and rental markets.The rugged yet weight optimized JEM ZR35 also features variable output control for more subtle effects and is fully up-to-date with and integrated digital remote control, DMX and RDM.The entire JEM ZR range is compatible with a wide range of JEM Pro-Fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.

  • High endurance mid-sized fog machine
  • Exceptional performance and output
  • Various control options via digital remote, DMX and RDM

FEATURES

  • Robust roadworthy design

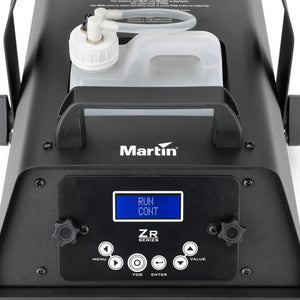

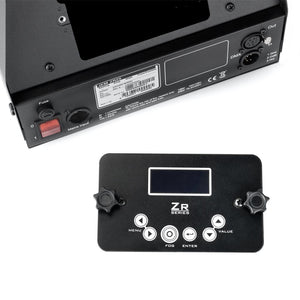

  • Integrated Digital Remote Control
  • DMX with RDM
  • Floor standing or truss mounting (hanging bracket included)
  • 1500 W heat exchanger
  • 800 m³ (28,252 ft.³) per minute fog output
  • Variable output control for subtle effects
  • Continuous effect output
  • Compatible with a wide range of JEM Pro-Fog fluids

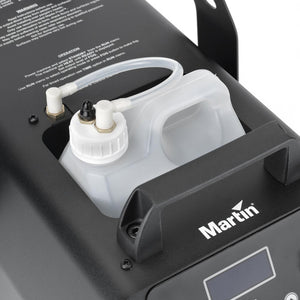

  • 4 l Fluid reservoir with quick-connect fitting (compatible with 5 l bottle)
  • Easy external fluid connection
  • Optional Ducting Kit

SPECIFICATIONS

PHYSICALLength: 590 mm (23.3 in.)Width: 395 mm (15.6 in.)Height: 264 mm (10.4 in.)Height with hanging bracket: 333 mm (13.9 in.)Weight, dry: 15.1 kg (33.3 lbs.)Weight, filled: 19.1 kg (42.1 lbs.)

PERFORMANCECoverage volume: 800 m3 (28,252 ft3) per minuteFluid consumption (max.): 140 ml per minuteMaximum operating time, maximum output, 4 l of fluid: 1.25 hoursReady time: 9-minutesContinuous effect output

CONTROL AND PROGRAMMINGControl options: Integrated digital remote control, DMX, master/slave link modeControl parameters: Continuous or timer-controlled outputFog: Variable output control, 0-100%DMX channels: 1External fluid control: Fluid sensingDMX compliance: ANSI E1.11 - USITT DMX512-ARDM compliance: ANSI/ESTA E1.20 RDM

CONSTRUCTIONHousing: Steel and aluminumColor: BlackHeat exchanger: 1500 W, thermally protectedFluid pump: Oscillating piston, high pressureFluid management: Fluid out sensing, sealed for transportationFluid reservoir: 4 or 5 l drop-in reservoir with quick-connect fittingRemote Control: Integrated Digital Remote with 3 m (9.84 ft.) cable, 3-pin XLRExternal Fluid Control: Fluid sensingHanging bracket: Integrated yoke with safety attachment point

INSTALLATIONMounting: Standing or hangingOrientation: Up to +/-40° from horizontalClearance around machine: 100 mm (4 in.)

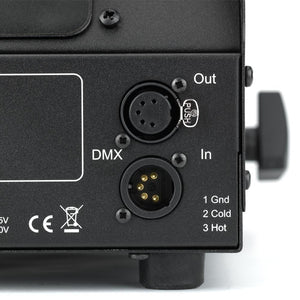

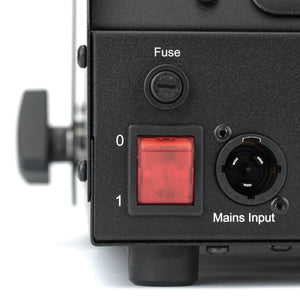

CONNECTIONSAC Power: Neutrik PowerCON TRUE1DMX, link mode in/out: 5-pin locking XLRRemote control: 3-pin locking XLRFirmware: AVR socket

ELECTRICALEU Model:

AC power: 220-240 V nominal, 50/60 Hz
Main fuse: 10 AT (slow blow), 250 V
Typical power and current: 1500 W, 6.8 A*
US Model:
