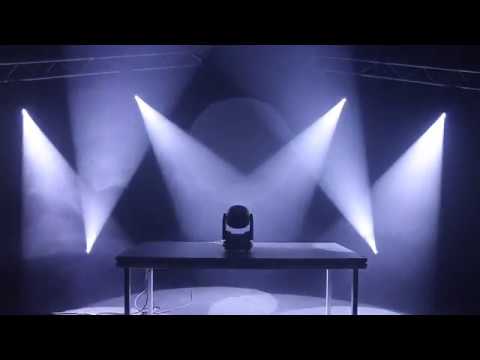

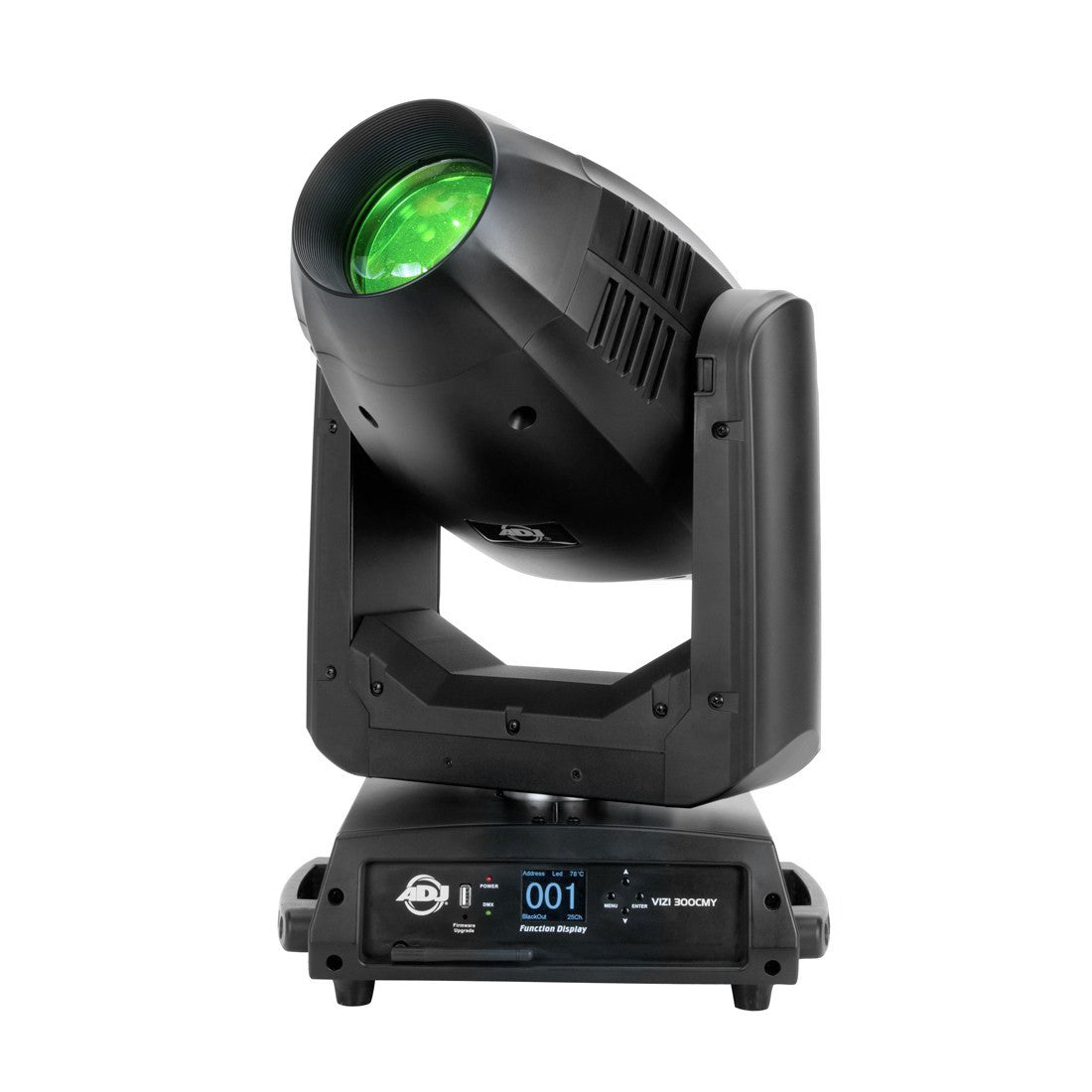

The Vizi CMY 300 is ADJ’s next generation LED Hybrid moving head. It uses a specially designed 300W LED engine that offers massive output for most large venues and event productions. It is a great hybrid utility fixture as it acts as a beam, spot and wash all-in-one with a massive zoom range from 8 to 46-degrees. This allows for designers to get maximum effects from one fixture without having to crowd truss in an installation with multiple fixtures. It also allows for less fixtures to be packed in a truck for production events. What’s more, is it comes in a smaller footprint than most other movers in its class. Plus, the Vizi CMY 300 offers a CMY color mixing so designers can custom make colors to create a one-of-a-kind lightshow. The fixture has a built-in antenna with ADJ's WiFLY EXR wireless DMX that transmits a signal up to 2500 feet / 700M (line of sight).

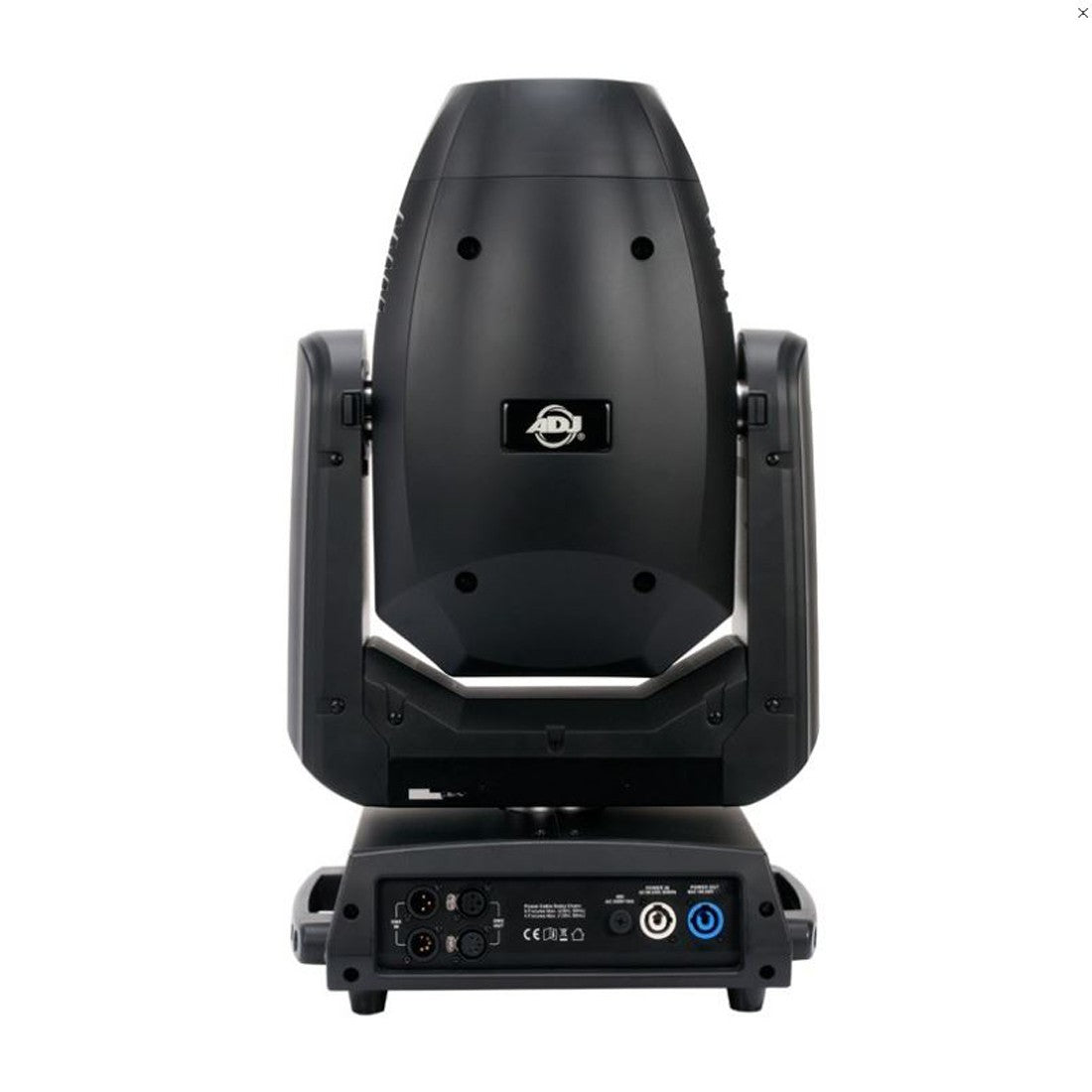

The Vizi CMY3 00 offers motorized focus, motorized zoom, two rotating prisms (one 6-facet linear & one 3-facet circular), 2 GOBO wheels (1 wheel fixed metal & one wheel rotating/replaceable GOBOs). There is a full color function display on the front panel, with the rear panel offering locking power In/Out connections and 3-pin & 5-pin DMX connections. Under the hood, the Vizi CMY 300 offers a modular design making servicing and GOBO replacement easier than ever before.
Specifications: Source • Cold White LED Engine • Lamp Wattage: 300W • Average Lifetime: 50,000 hrs • Color Temperature : 7800K • CRI: 74
Optics • Beam Angle: 8°-46° • 16bit Motorized Focus • 16bit Motorized Zoom • 2 rotating, layering Prisms : 3-facet circular & 6-facet linear prism • 16bit prism Indexing • Linear Frost filter • 16bit Motorized Iris
Control • Operational Mode: DMX Control • 3 DMX Channel Modes: 24, 26 or 38 Channels • RDM compatible (Remote Device management) • 16bit Dimmer • 5 Dimmer Curves • Various strobe effects • Display: Color display with 4-button function menu • 16bit Pan 540° • 16bit Tilt 270° • Built-In WiFly EXR Wireless DMX

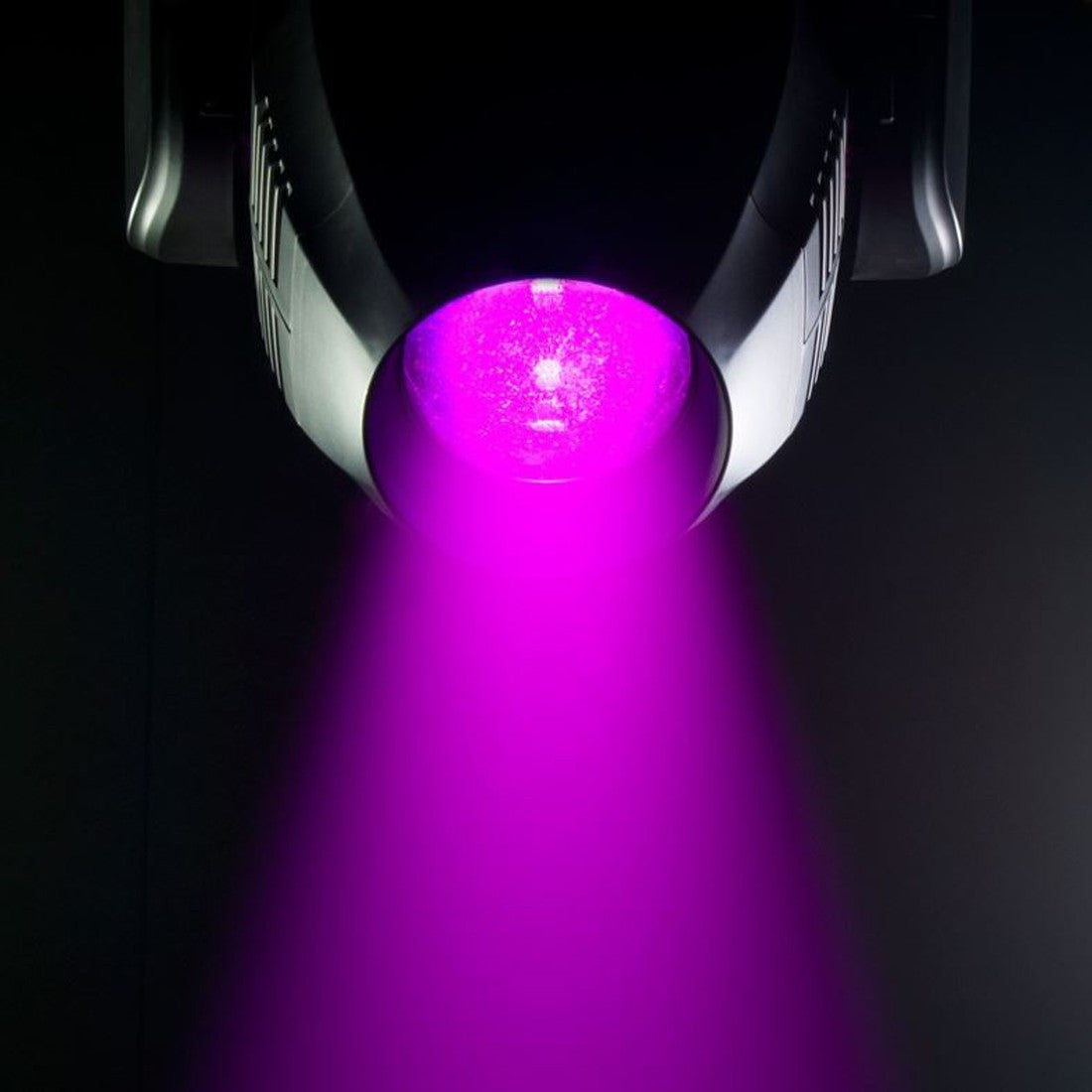

Colors • 16bit CMY Color mixing • 30 CMY Color Presets • 1 additional Color Wheel with 6 colors + CTB + CTO + UV + White • Color Indexing
Gobos • Gobo Wheel 1 with 8 static Gobos + 1 beam reducers + Open • Gobo Wheel 2 with 7 rotating/replaceable Gobos + Open • 16bit Gobo Indexing
Construction • PVC molding • Includes Quicklock Omega Brackets
Electrical • Power voltage: AC100-240V, 50/60Hz (Multi-voltage) • Power consumption: 410W
Connections • 3-& 5pin Locking DMX In/Out connections • Locking Power In/Out connections
Dimensions & Weight • Dimension (WxLxH): 378,6 x 410,9 x 618,8mm • Weight: 23 kg. |
