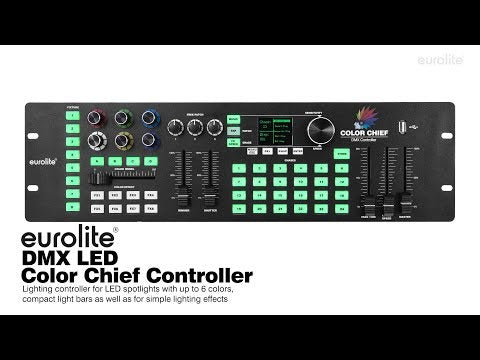

DMX lighting desk with innovative control concept for LED spotlights
- Easy control of LED spotlights with up to 6 colors, light bars as well as simple lighting effects
- For 8 devices or device groups, each with up to 4 segments
- Each device can occupy up to 30 channels
- Quick and easy programming
- Eurolite KLS systems and LED spotlights already in the library
- Additional fixtures can be configured manually
- 8 color effects directly selectable
- 3 additional channels available per fixture (e.g. for rotations)
- Color wheel selection and simulation
- 24 memory spaces for scenes and chases
- Several chases can be run simultaneously
- USB port for data storage of lighting programs
- Sound control via audio signal or TAP button
- Master dimming, fade time and run time easily adjustable
- 3-pin XLR connector
- Firmware update via USB
- Desktop console
- Control: Sound to light via Microphone; Sound to light via RCA (f) mounting version; DMX
- Housing design: (19") 48.3 cm rack installation 3 U
| Power supply: | 100-240 V AC, 50/60 Hz 9 V DC 800 mA |
| Power consumption: | 10 W |
| IP classification: | IP20 |
| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Programs: | 24 Sequences |
| DMX channels: | Output 240 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | Sound to light via Microphone |
| Sound to light via RCA (f) mounting version | |
| DMX | |
| Color: | Black |
| Housing color: | Black |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Width: | 48.3 cm |
| Height: | 8.5 cm |
| Depth: | 13.35 cm |
| Weight: | 2.25 kg |
PACKAGING UNITS
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4026397617023 | 2,55 kg | 57cm x 17cm x 12cm |
| 4 | 4026397617030 | 10,95 kg | 59cm x 38cm x 27cm |
