Controller with color & motion effects (28 fixtures, 18 control channels each)
- DMX controller for DMX light effect units such as moving heads, scanners and LED spot lights with RGBW color mixture
- 512 DMX channels can be assigned and inverted as desired to 32 control channels (softpatch)
- For 28 fixtures with 18 control channels each
- USB port for storing program data
- Quick programming thanks to 9 integrated movement patterns and 7 color effects (PAN/TILT position, fade time and running time adjustable)
- 32 programmable chases with 100 scenes each can be stored
- Manual, time-controlled or sound-controlled chase running mode
- 32 programmable scenes
- 2 DMX fixture levels can be controlled, each with up to 18 channels
- 16 DMX channel faders
- 2 jog wheels for pan/tilt
- Blackout function
- Sound control via built-in microphone
- Backlit LCD (2 x 16 characters)
- RDM support (DMX address setup and identify)
- 3-pin XLR connector
- Firmware update via USB
- Desktop console
- Rack installation with 3 units
- Control: DMX
- Housing design: (19") 48.3 cm rack installation 3 U
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 2.70 W |
| IP classification: | IP20 |

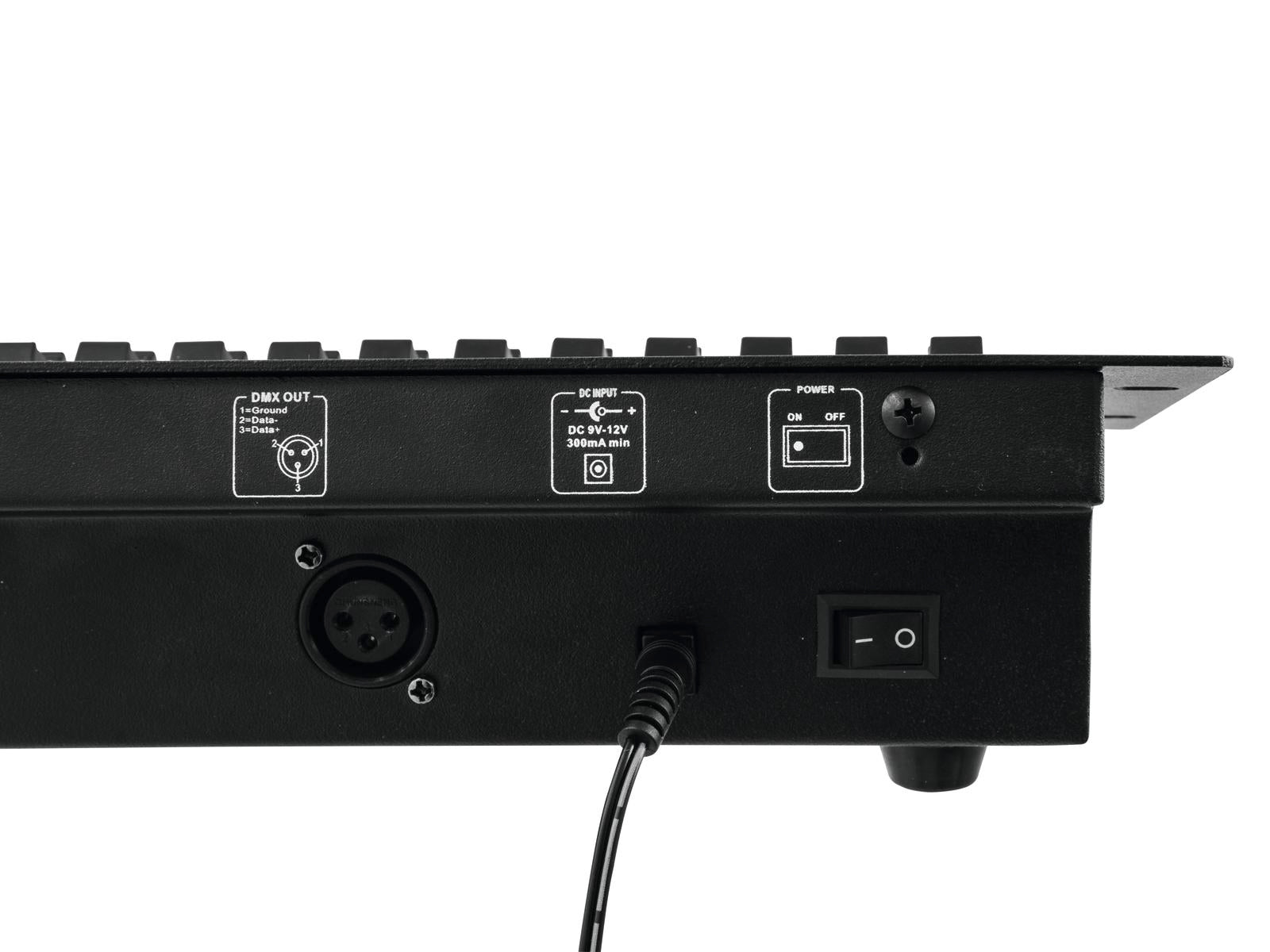

| Power connection: | Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided) |
| Programs: | 32 Sequences each with 600 Scenes |
| DMX channels: | Output 512 |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Control: | DMX |
| Housing color: | Black |
| Available storage media: | USB devices (FAT 32) |
| USB port: | Typ A |
| Housing design: | (19") 48.3 cm rack installation 3 U |
| Width: | 48.3 cm |
| Height: | 8.9 cm |
| Depth: | 13 cm |
| Weight: | 2.39 kg |
PACKAGING UNITS
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4026397511352 | 2,78 kg | 58cm x 18cm x 13,5cm |
| 4 | 4026397511369 | 11,80 kg | 60cm x 38cm x 31cm |
