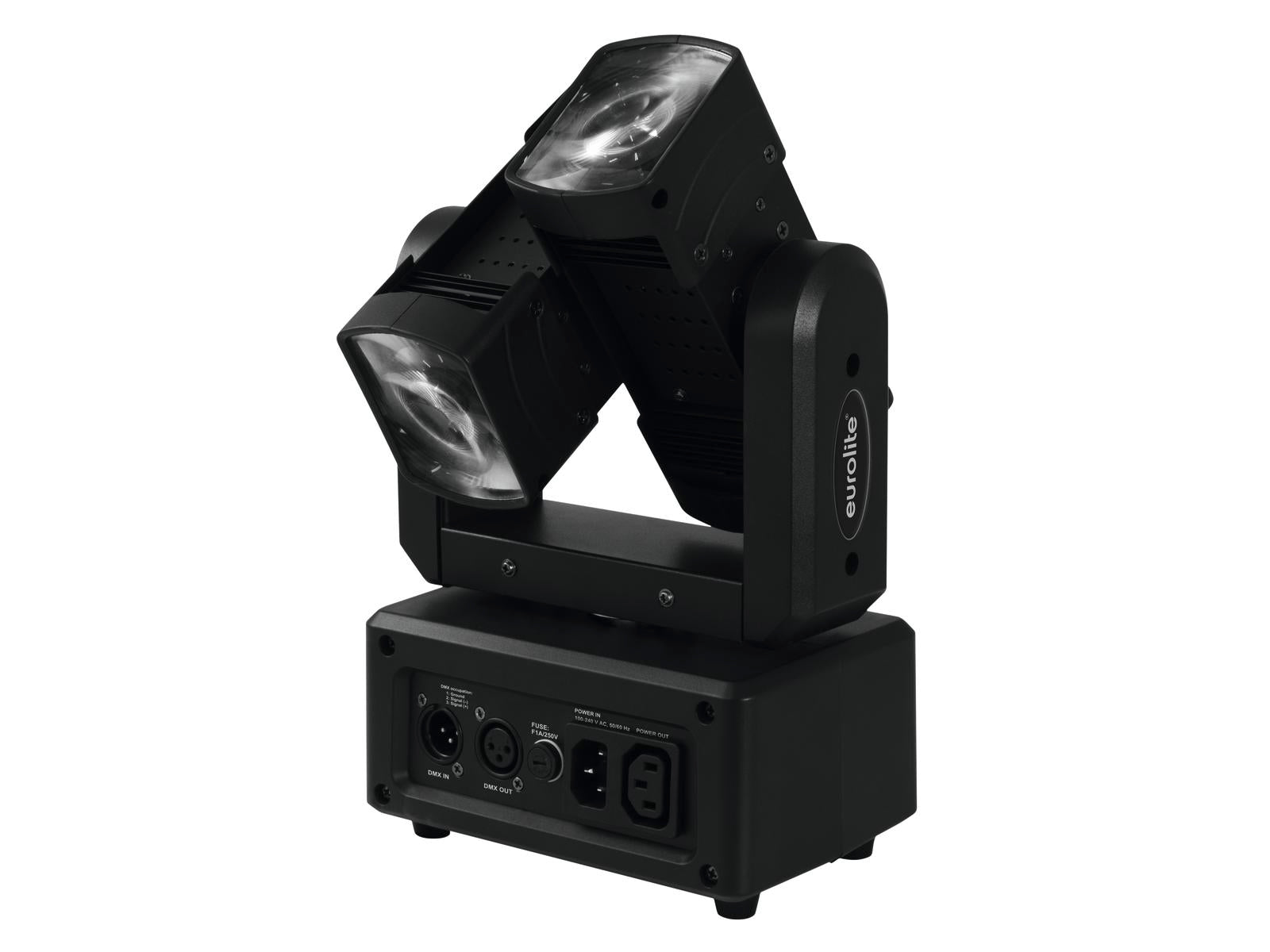

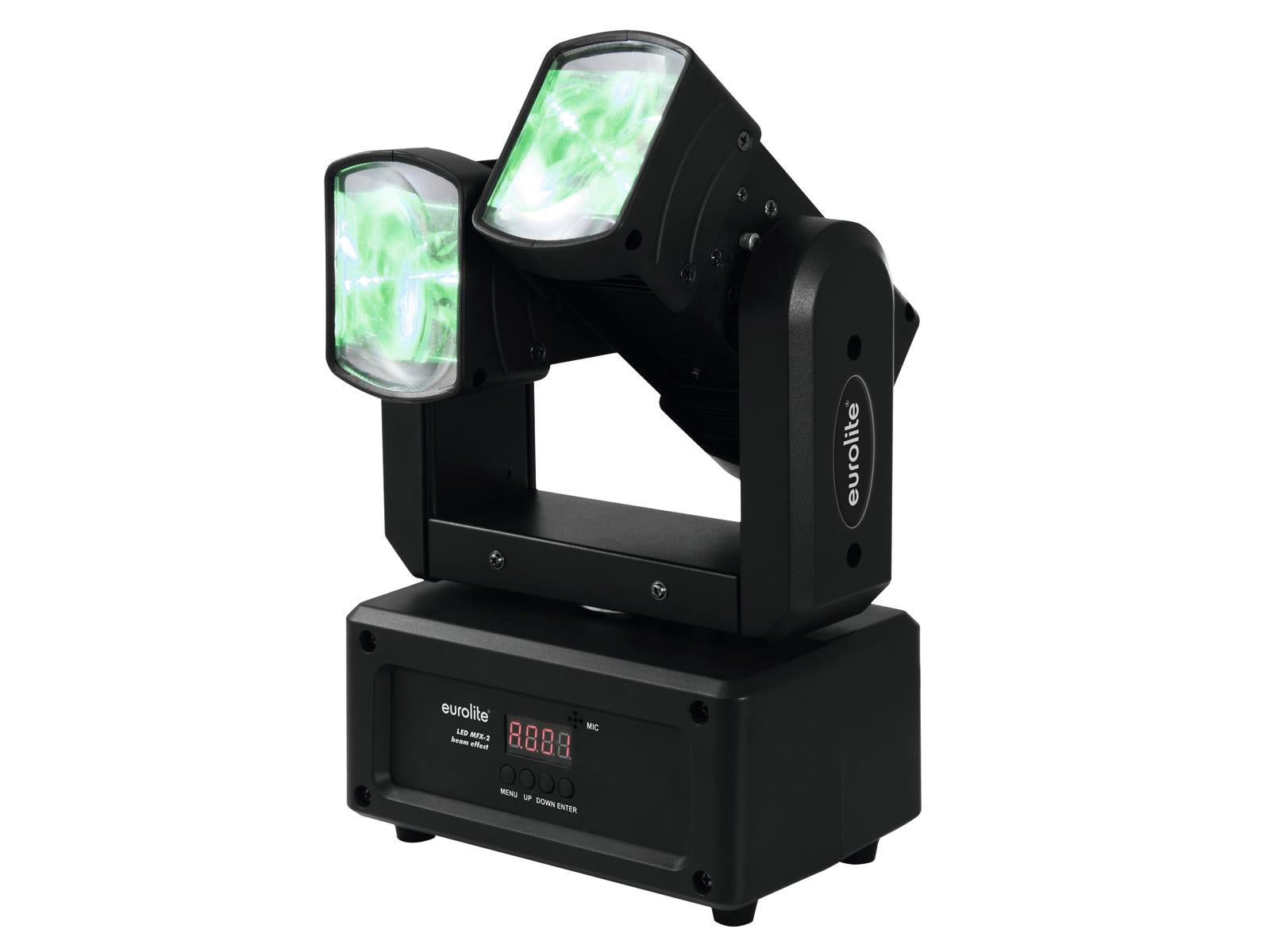

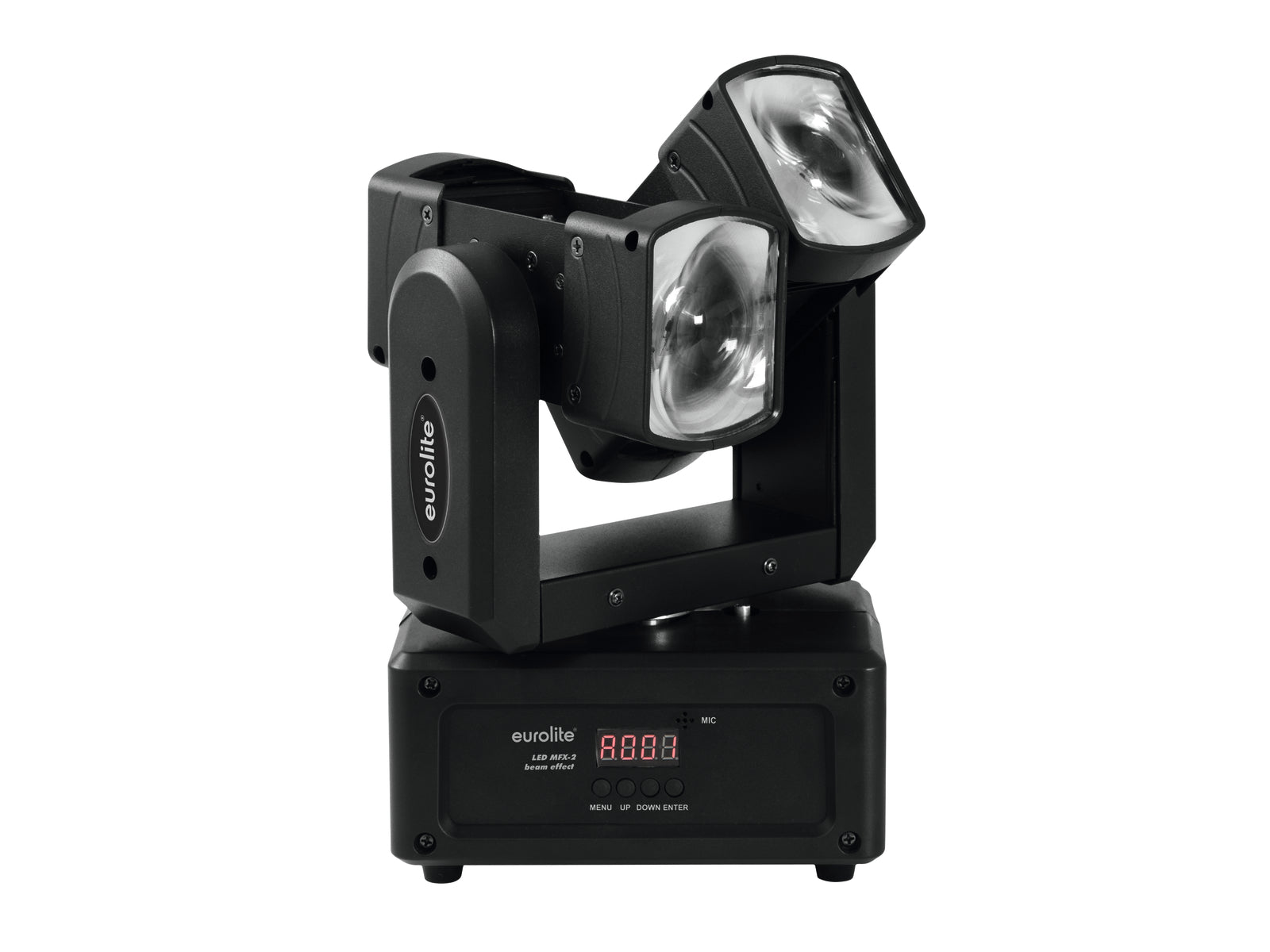

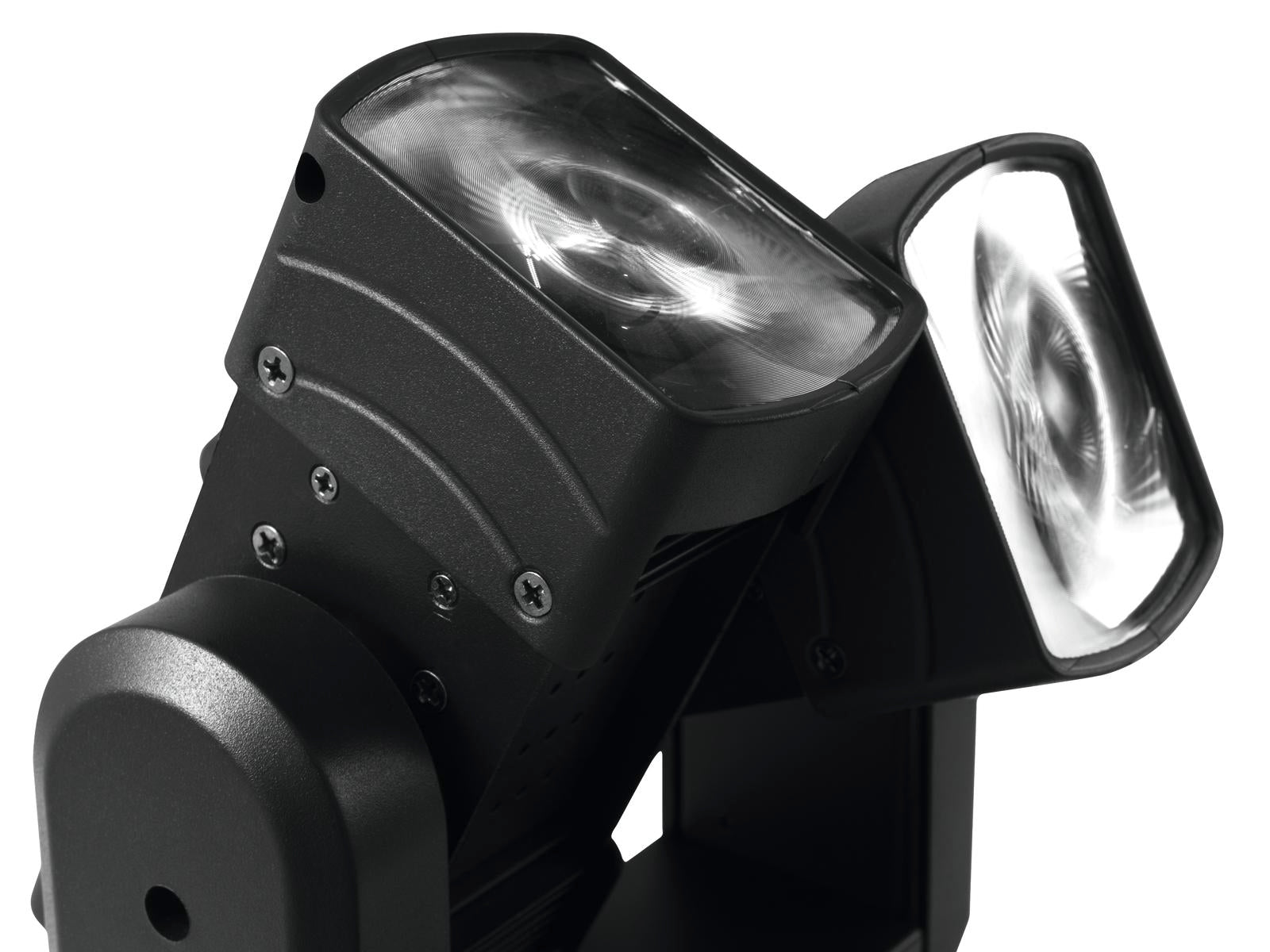

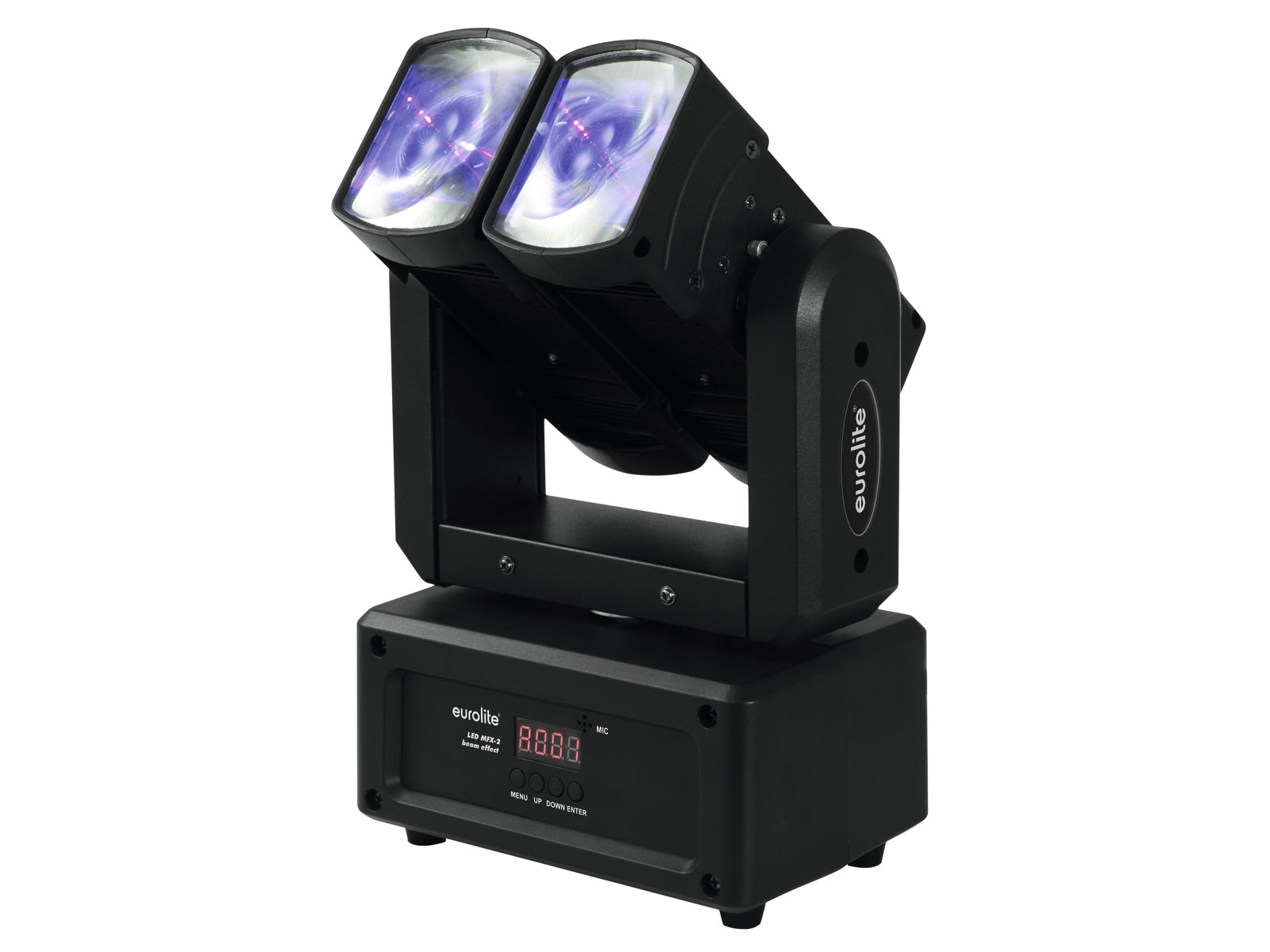

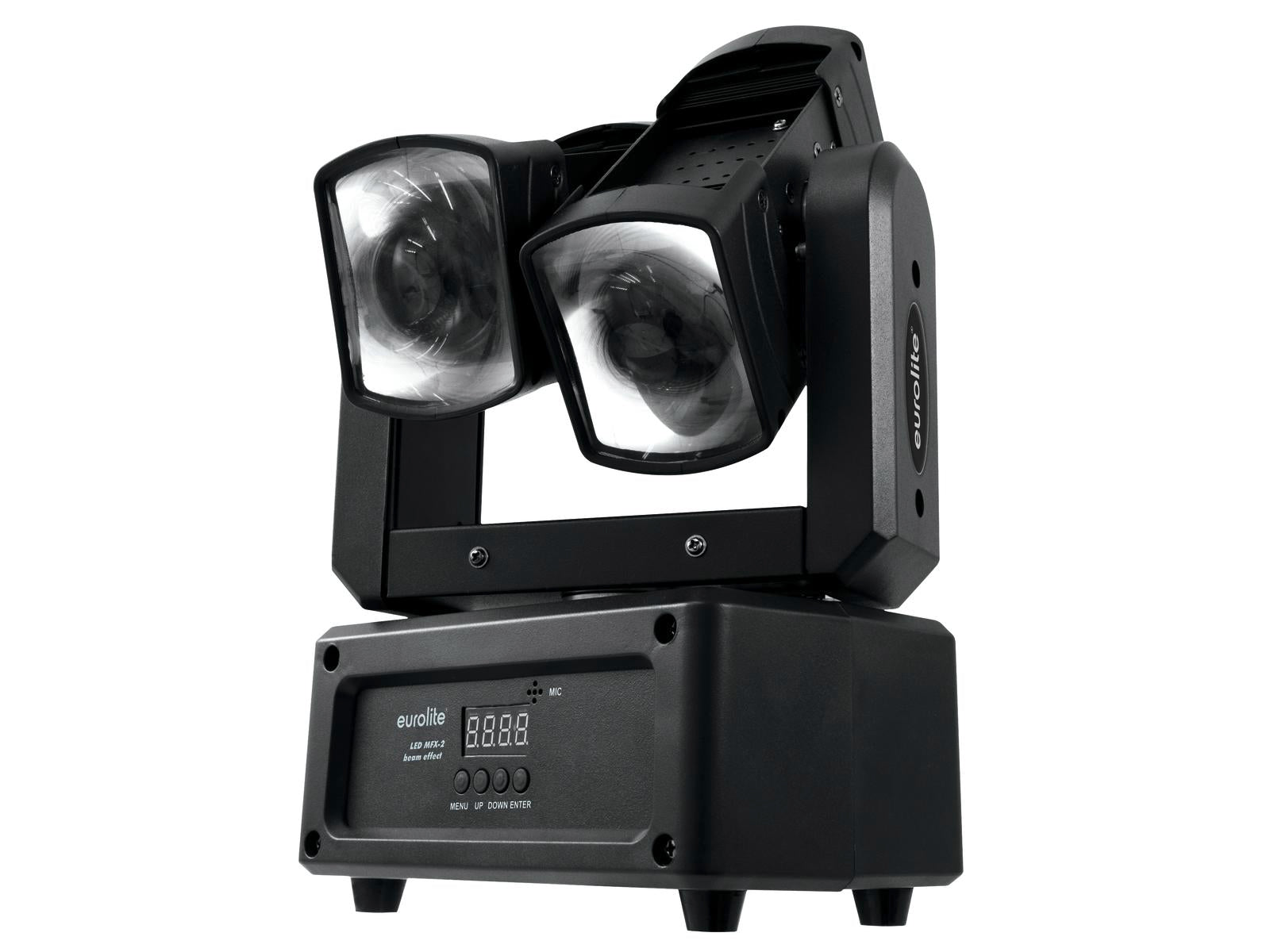

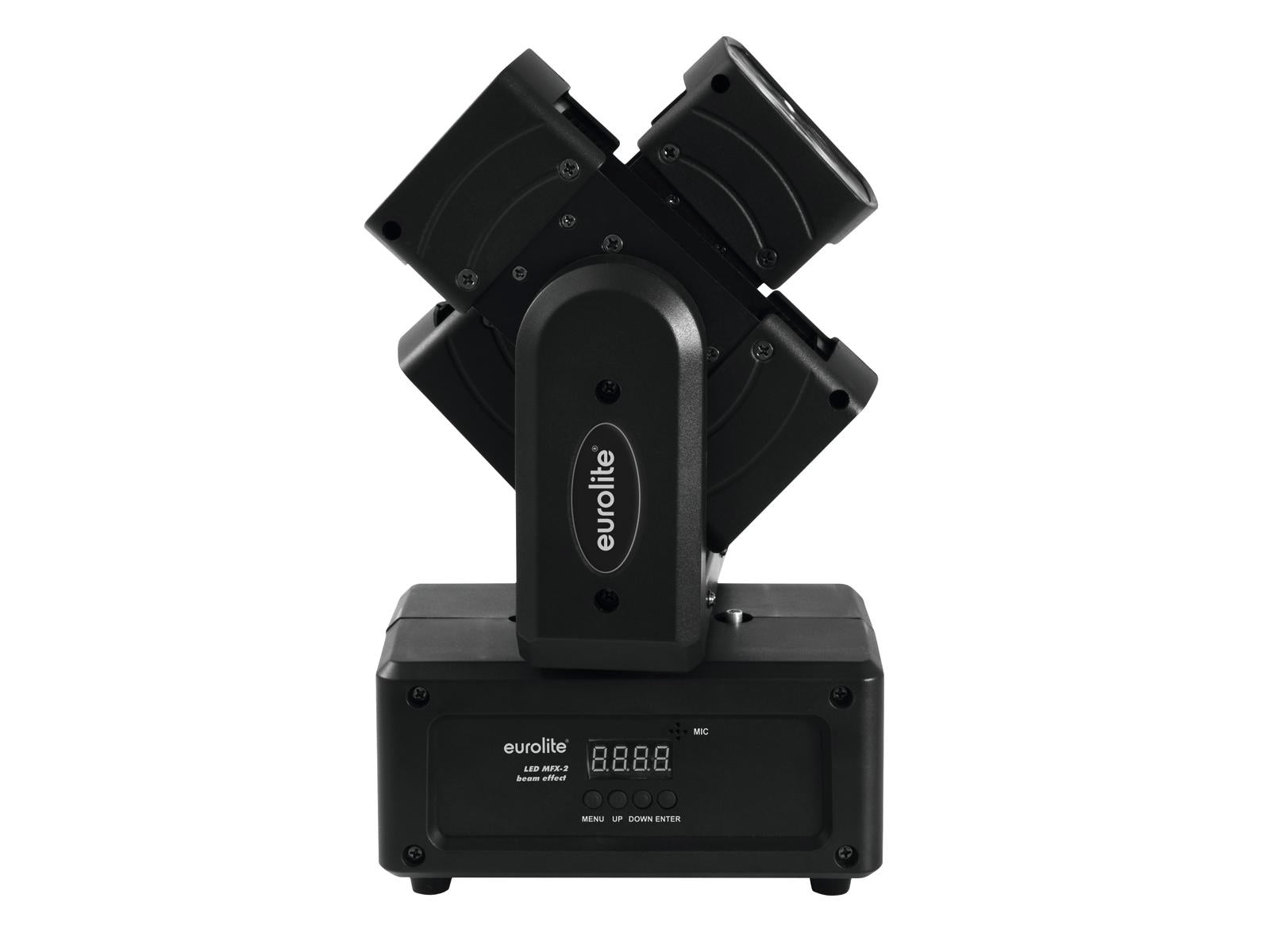

Small Moving Effect with 2 LED heads and 4 beams with unlimited PAN/TILT
- With Infinity function for unlimited PAN and TILT movement
- TILT movement for each LED head separately and steplessly adjustable
- Equipped with four 10 W quadcolor LEDs with RGBW colors
- Narrow beam angle
- Compact lightweight
- 21 or 28 DMX channels selectable
- Functions: Colored beams in R, G, B and W, auto mode, sound control, color presets, Master/Slave function, built-in programs
- Stepless RGBW color mixture
- Dimmer
- Strobe effect with adjustable speed
- Random strobe effect
- Exact positioning via 16 bit PAN/TILT movement resolution
- DMX-controlled operation or stand-alone operation with Master/Slave function
- Sound-controlled via built-in microphone

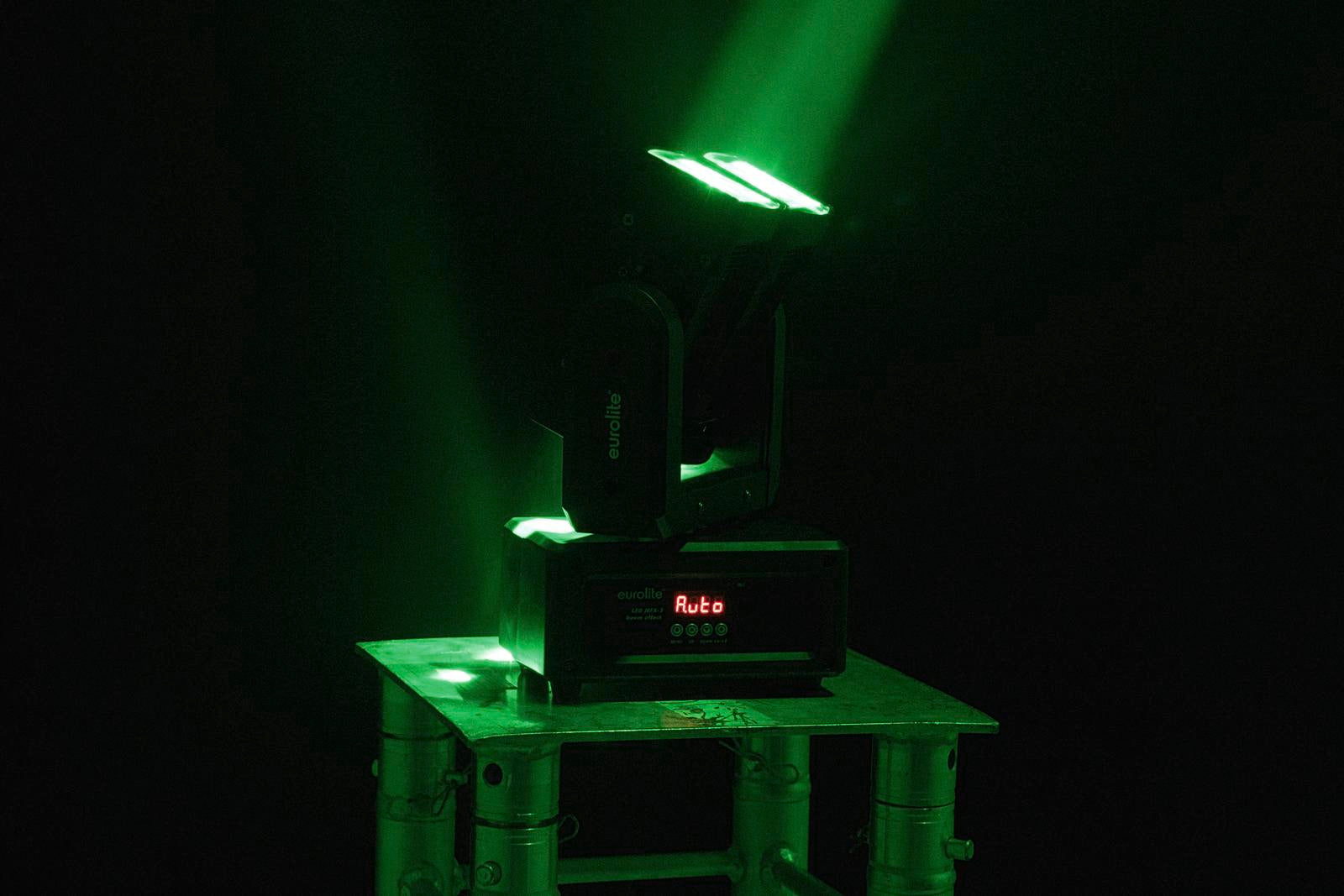

- Addressing via control panel with 4-digit LED display
- Switch-mode power supply for operation between 100 and 240 volts
- Feed-through output allows to power up to 8 devices
- Ready for connection with power cord and safety plug
- LED: 4 x high-power 10 W 4in1 QCL RGBW
- Control: Stand-alone; Sound to light via Microphone; DMX
- Projection: flicker-free

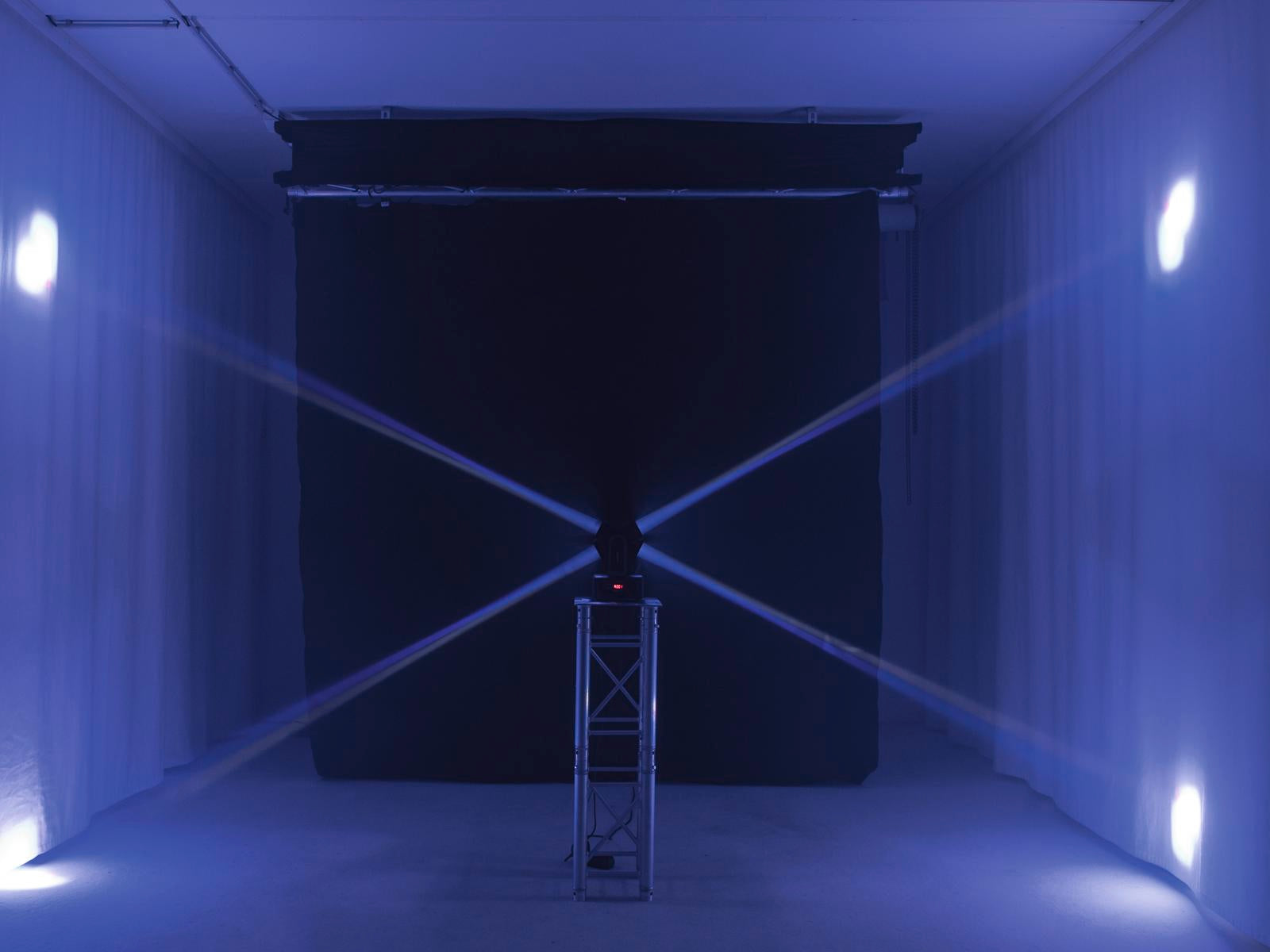

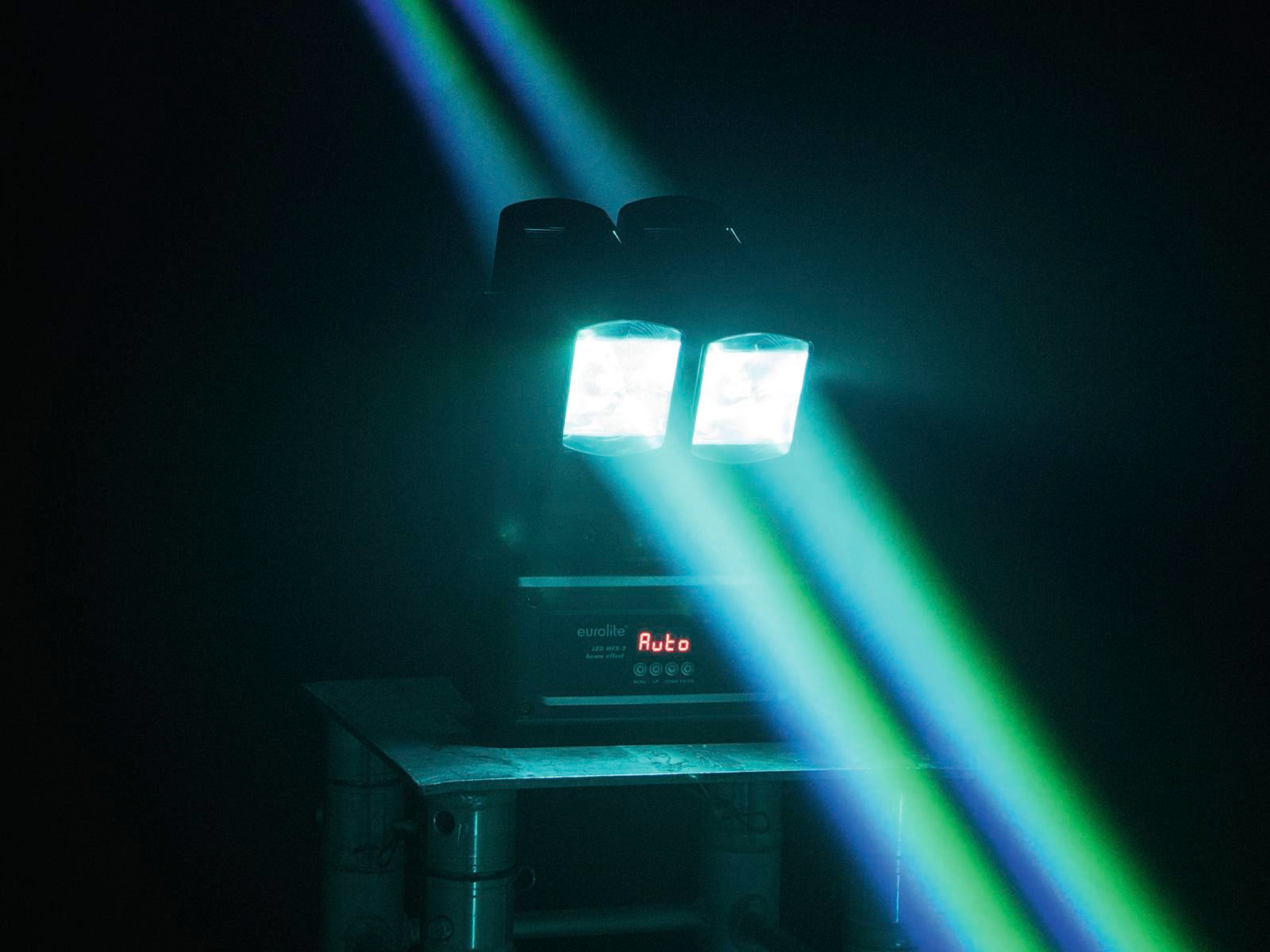

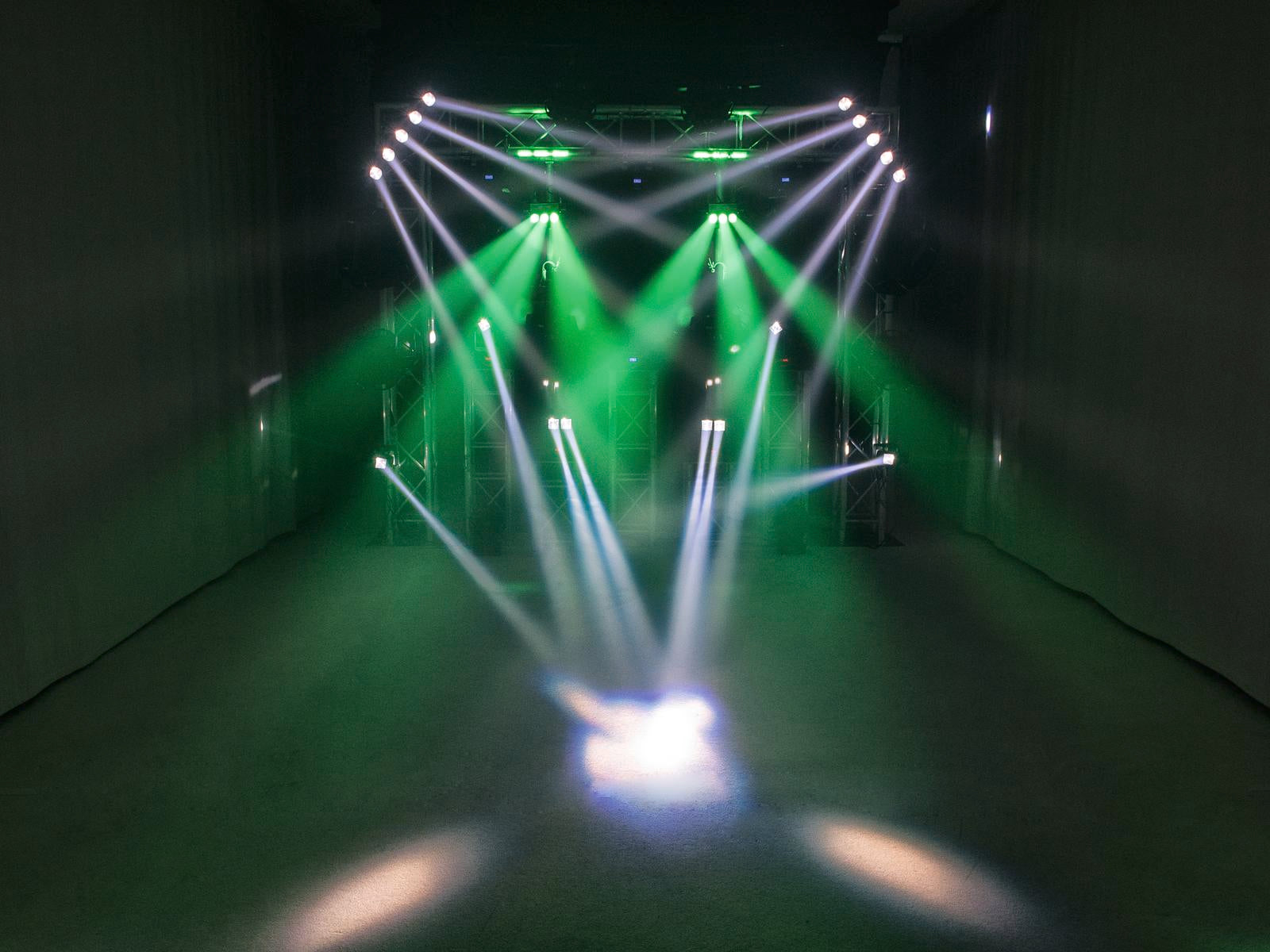

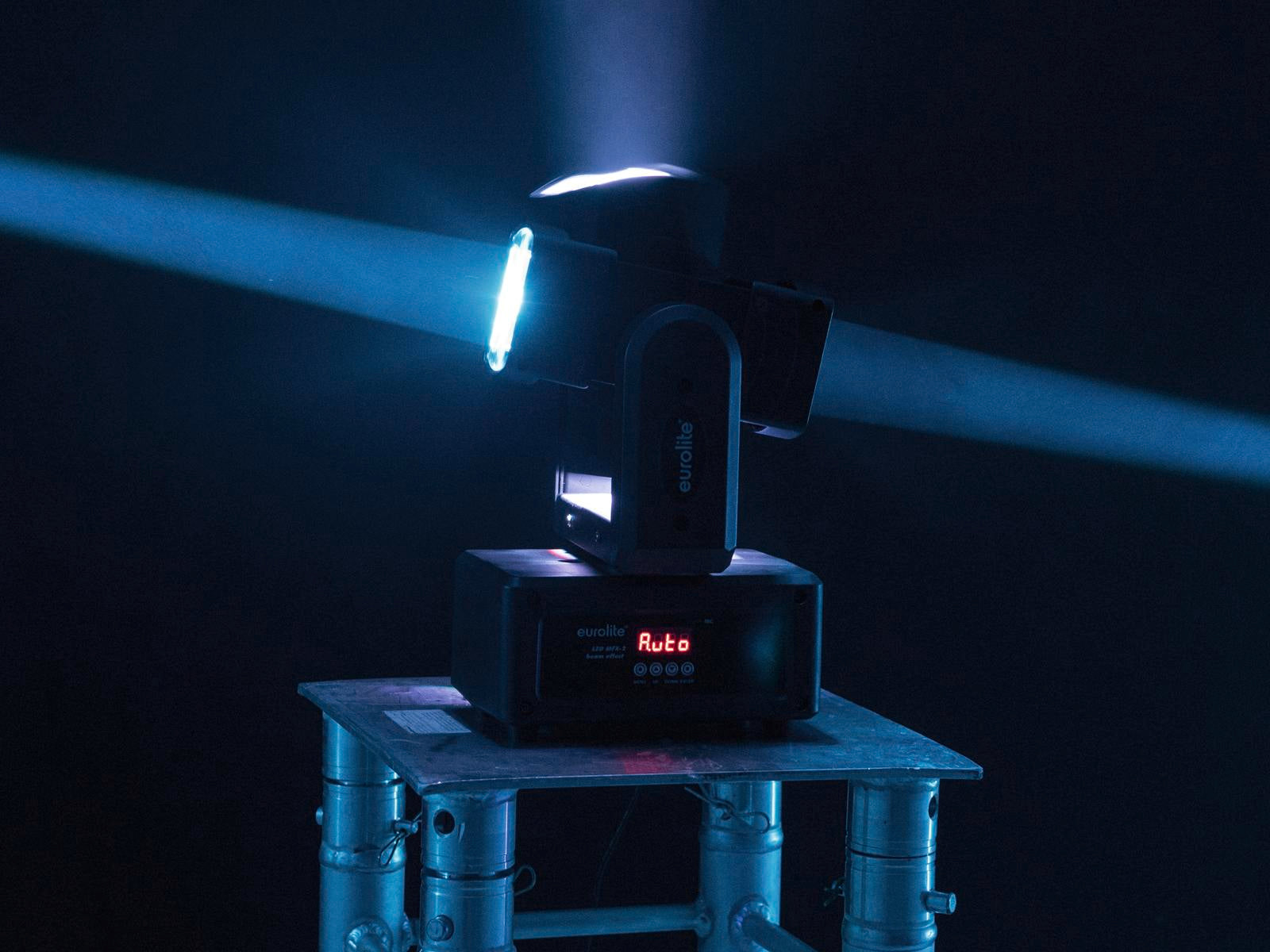

- Effect: Multi beam effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 55 W |
| IP classification: | IP20 |

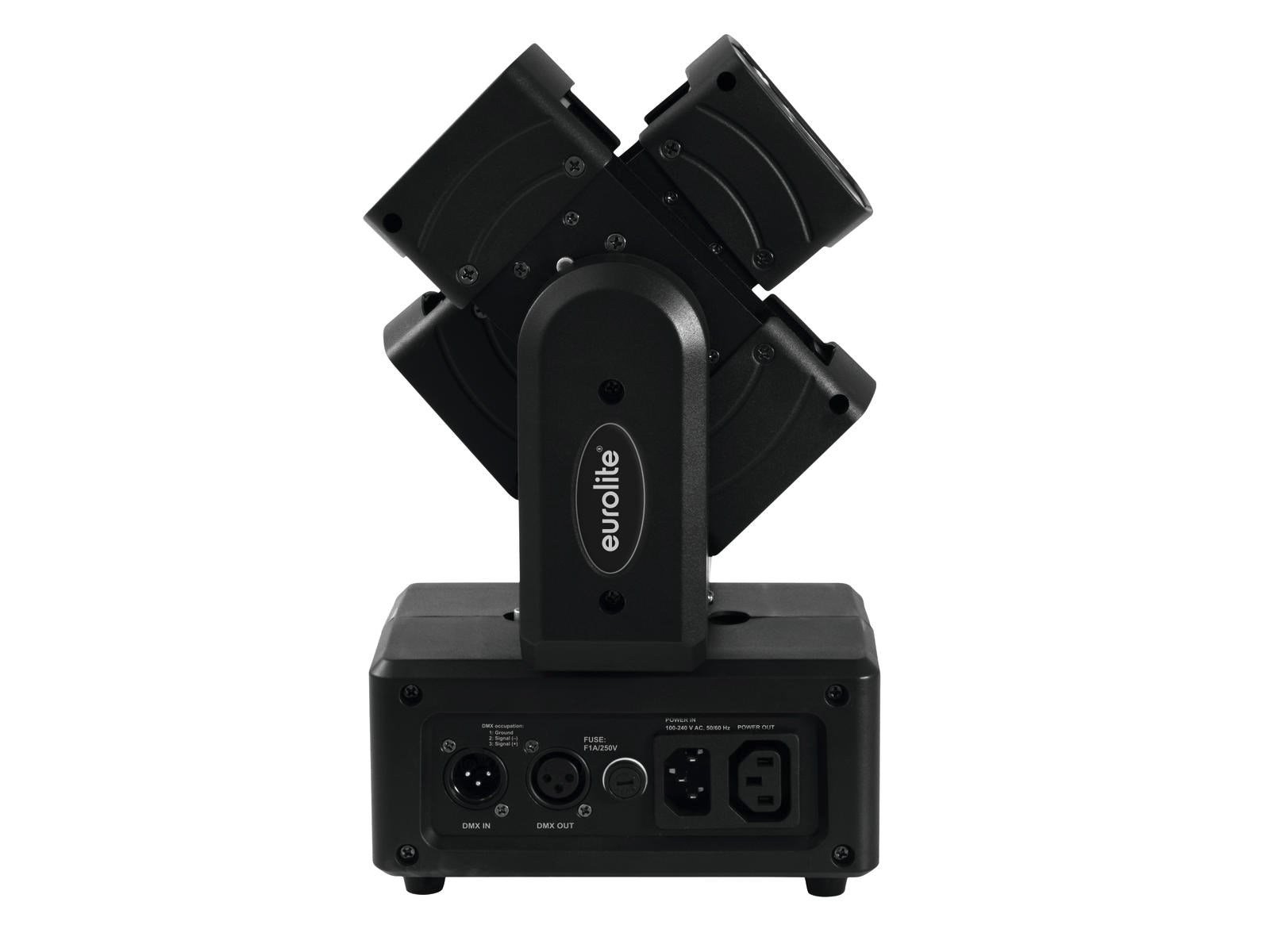

| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| Power output: | 1 x IEC connector (F) mounting version |
| LED: | 4 x high-power 10 W 4in1 QCL RGBW |
| Max. TILT movement: | Exact positioning (16 bit resolution) plus infinity |
| Max. PAN movement: | Exact positioning (16 bit resolution) plus infinity |
| Flash rate: | 0 - 18 Hz |
| DMX channels: | 21; 28 |
| DMX input: | 1 x 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone |
| Sound to light via Microphone | |
| DMX | |
| Beam angle (1/2 peak): | 2° |
| Illuminance in Lux (lx): | R red 3m: 913 lx, 6m: 182 lx |
| G green 3m: 915 lx, 6m: 228 lx | |
| B blue 3m: 252 lx, 6m: 63 lx | |
| CW 3m: 936 lx, 6m: 232 lx | |
| Housing color: | Black |
| Width: | 12 cm |
| Height: | 35 cm |
| Depth: | 19.6 cm |
| Weight: | 3.10 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
PACKAGING UNITS
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4026397571486 | 3,60 kg | 37cm x 18cm x 27,5cm |
| 4 | 4026397571608 | 15,85 kg | 57cm x 39,5cm x 40cm |
