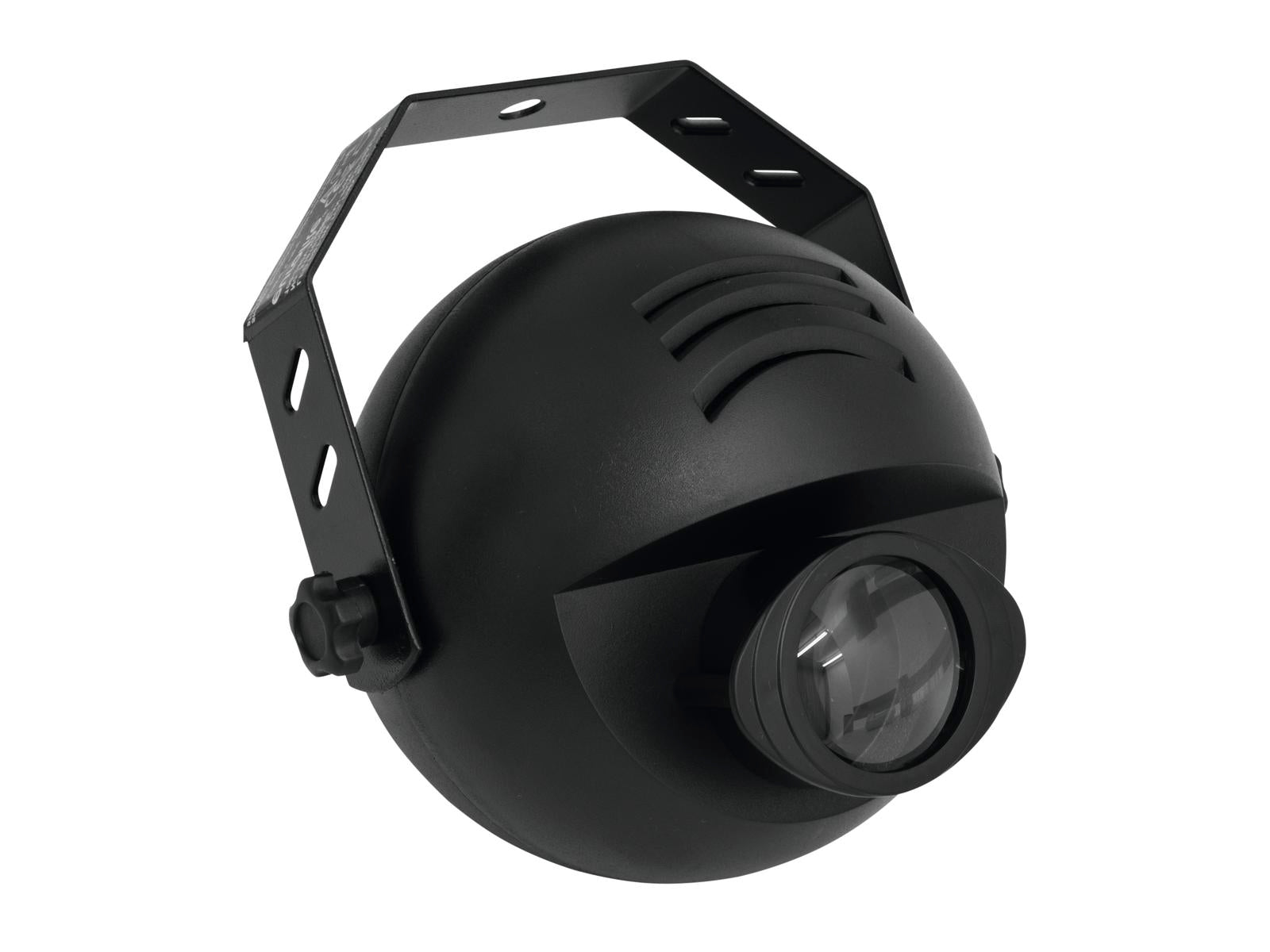

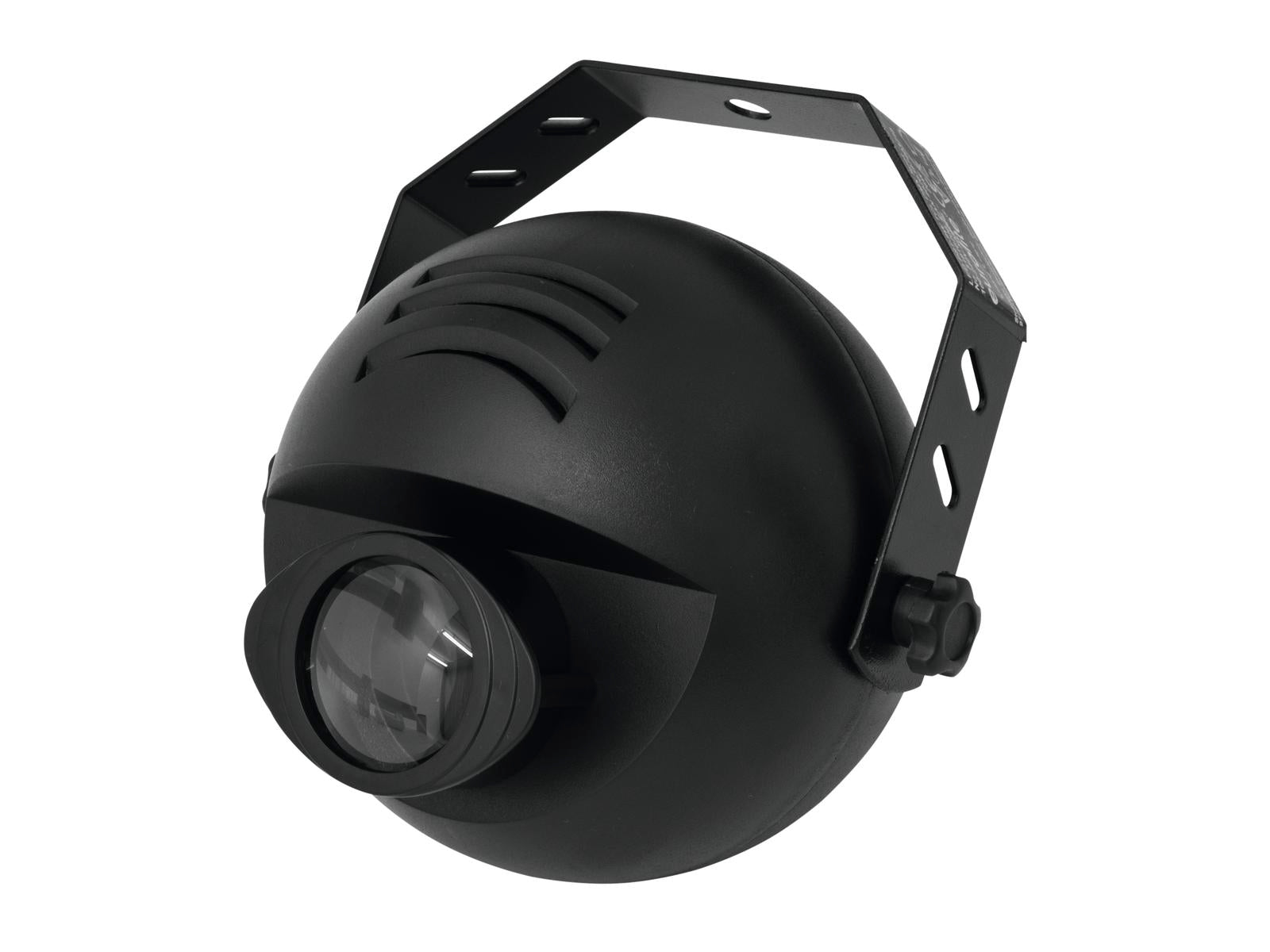

Narrow-beam pinspot with 9 W 3in1 LED in RGB and DMX
- DMX connection via optional 3.5 mm adapter cable
- 1.3 m jack-jack cable with 3.5 mm stereo jack plugs for connecting one spot with another included in the delivery
- Dimmer and strobe settings via DMX
- Internal programs, color change speed and strobe effect adjustable via DIP switches
- Master/Slave function
- Fixed installation is recommended
- Ready for connection via power cord with safety-plug
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 1 x high-power 9 W 3in1 TCL RGB (homogenous color mix)
- Control: Stand-alone; DMX; Master/slave function
- Effect: Strobe effect
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 9 W |
| IP classification: | IP20 |
| Power connection: | Fixed Power supply cord with safety plug |
| LED: | 1 x high-power 9 W 3in1 TCL RGB (homogenous color mix) |
| Flash rate: | 1 - 10 Hz |
| DMX channels: | 5 |

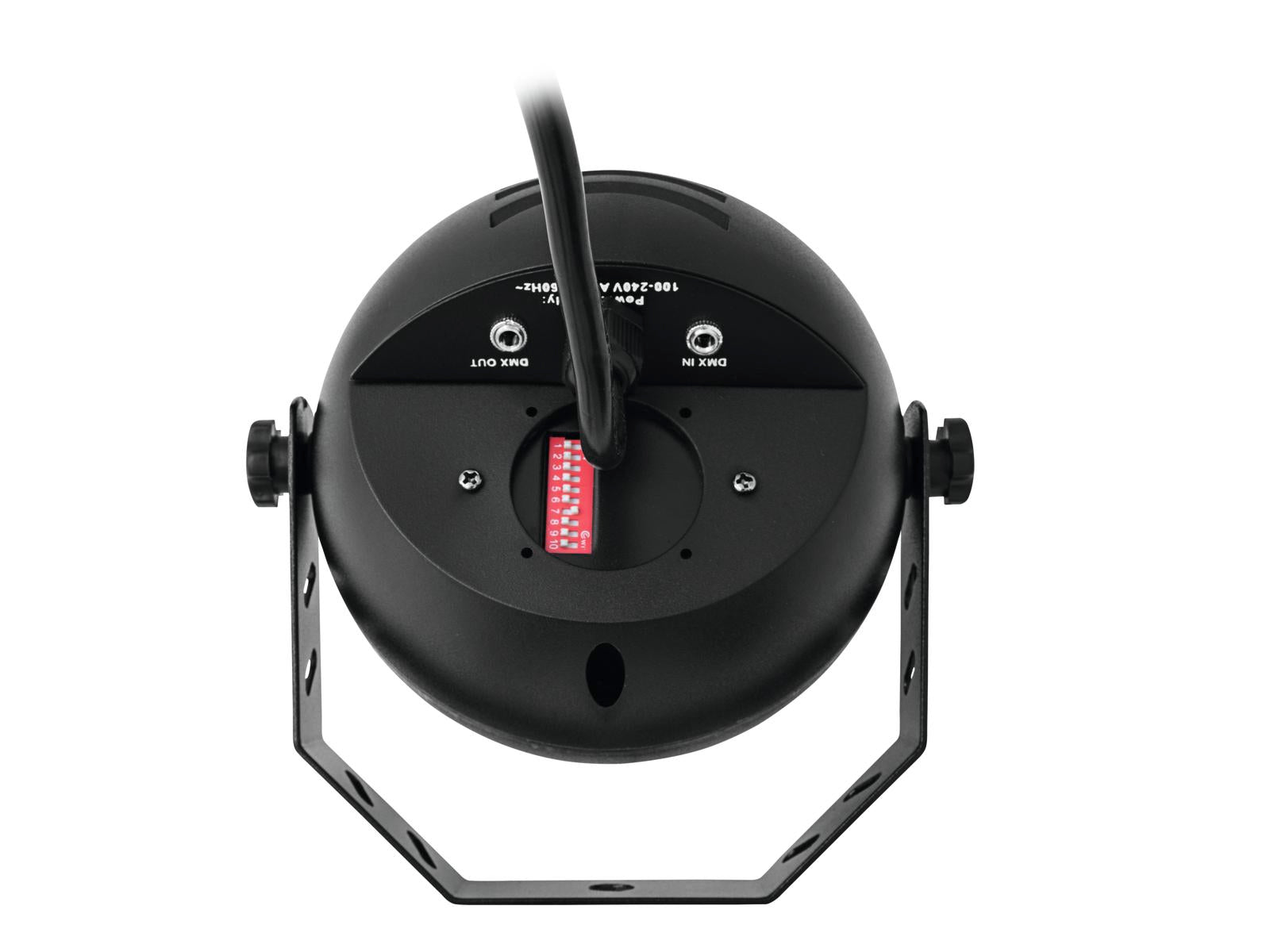

| DMX input: | 1 x 3.5 mm jack (stereo) mounting version |
| DMX output: | 1 x 3.5 mm jack (stereo) mounting version |
| Control: | Stand-alone |
| DMX | |
| Master/slave function | |
| Beam angle (1/2 peak): | 6° |
| Housing color: | Black |
| Width: | 16.5 cm |
| Height: | 17 cm |
| Depth: | 13.5 cm |
| Weight: | 0.67 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
PACKAGING UNITS
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4026397403718 | 0,77 kg | 19cm x 14cm x 14cm |
| 8 | 4026397403701 | 6,50 kg | 40cm x 30,5cm x 30,5cm |
