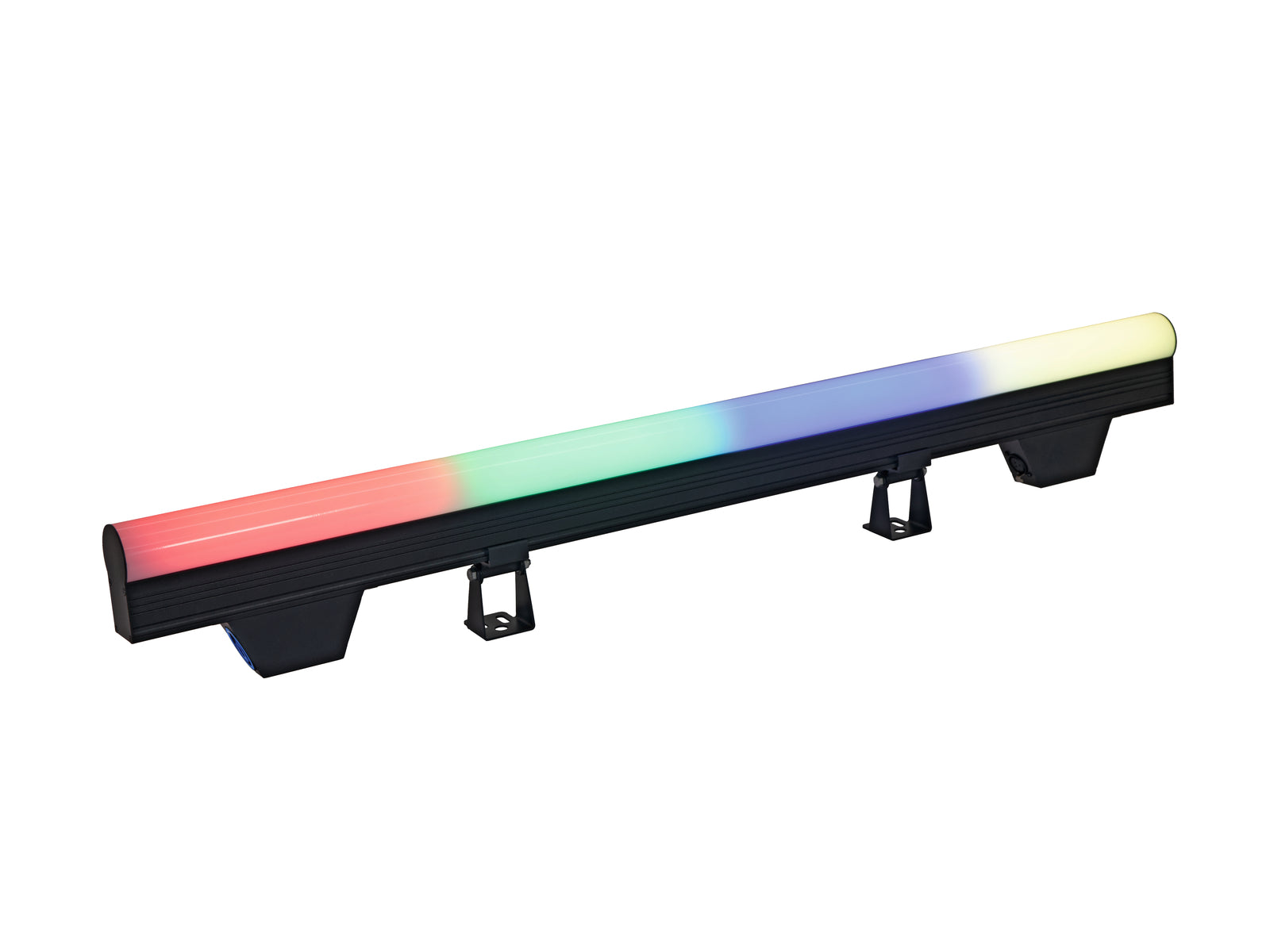

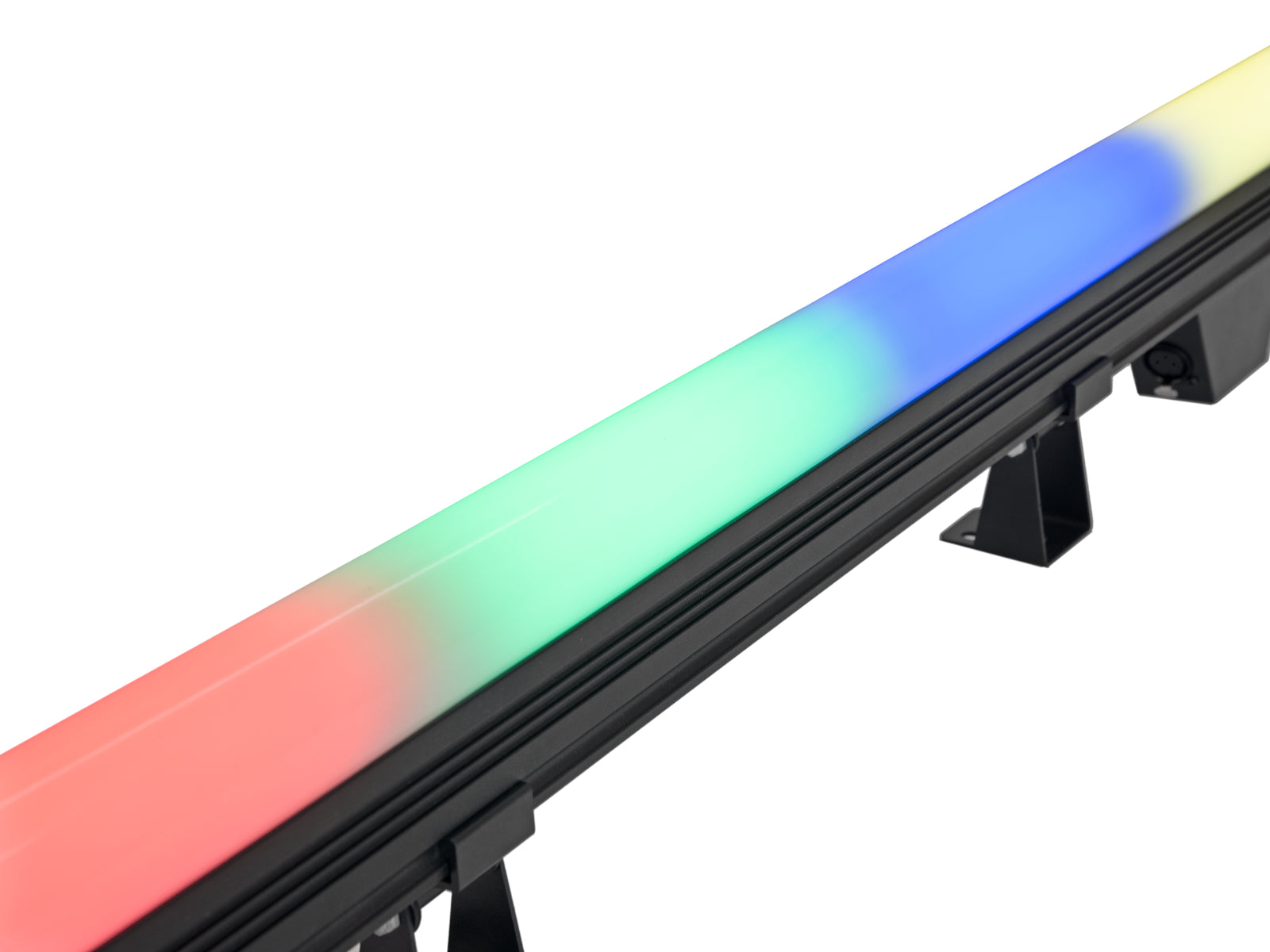

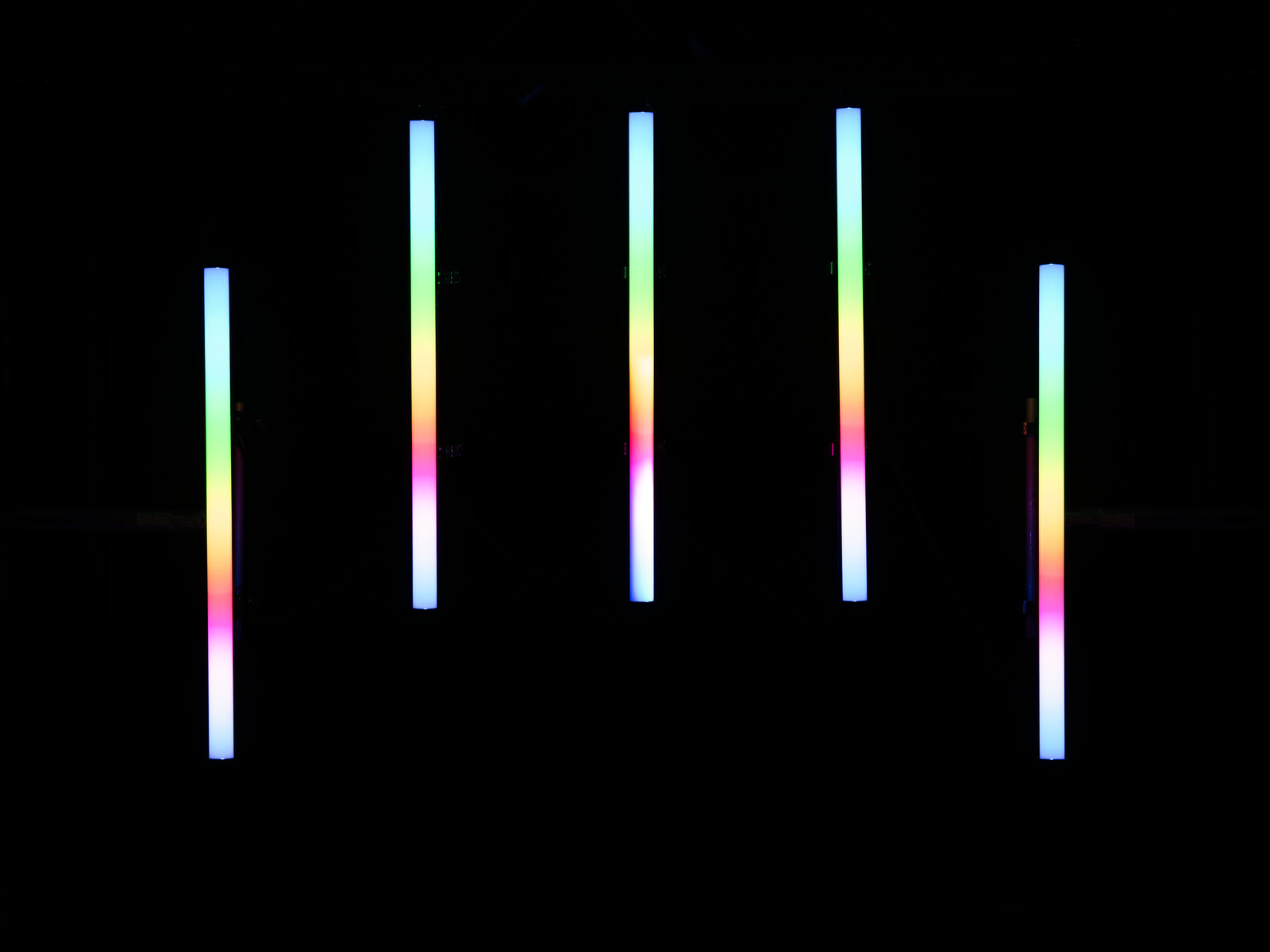

DMX-controllable pixel tube with RGB color mixing
- Tube with 96 high-power RGB LEDs (3in1) for washlight effects

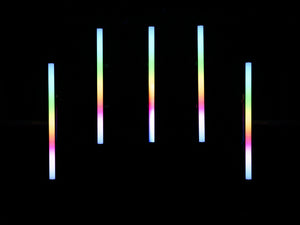

- Subdivided into 32 pixels (illumination units à 3 LEDs) which can be controlled individually by DMX
- Auto, music, master/slave and DMX mode
- Functions: static colors, automatic color change, internal programs with variable speed, dimmer settings
- Built-in auto and music show programs

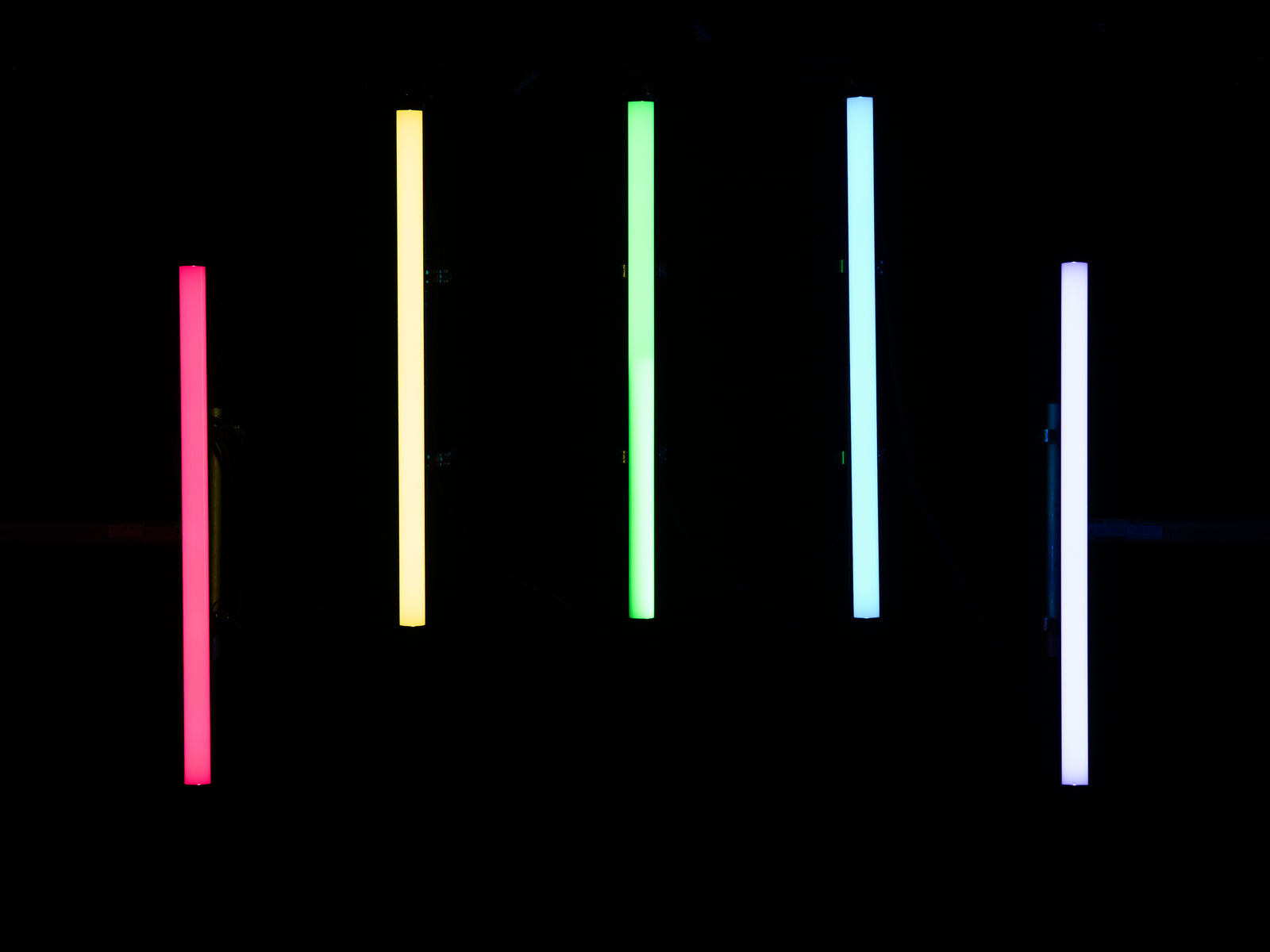

- Direct color selection for 17 preset colors
- 3, 5, 8, 48 or 96 DMX channels selectable
- DMX and power terminals intelligently designed for easy wiring
- Sound-control via built-in microphone with adjustable microphone sensitivity

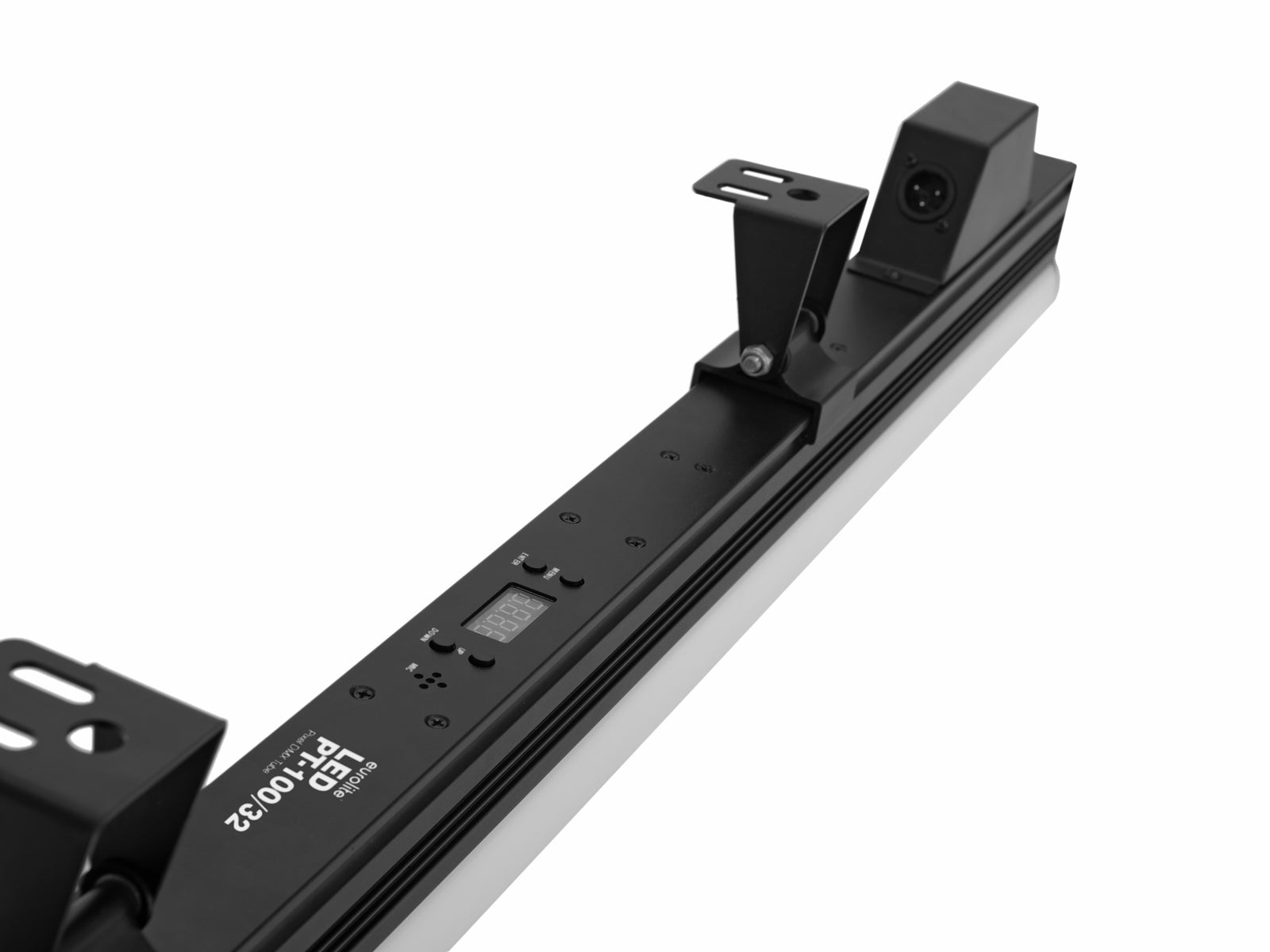

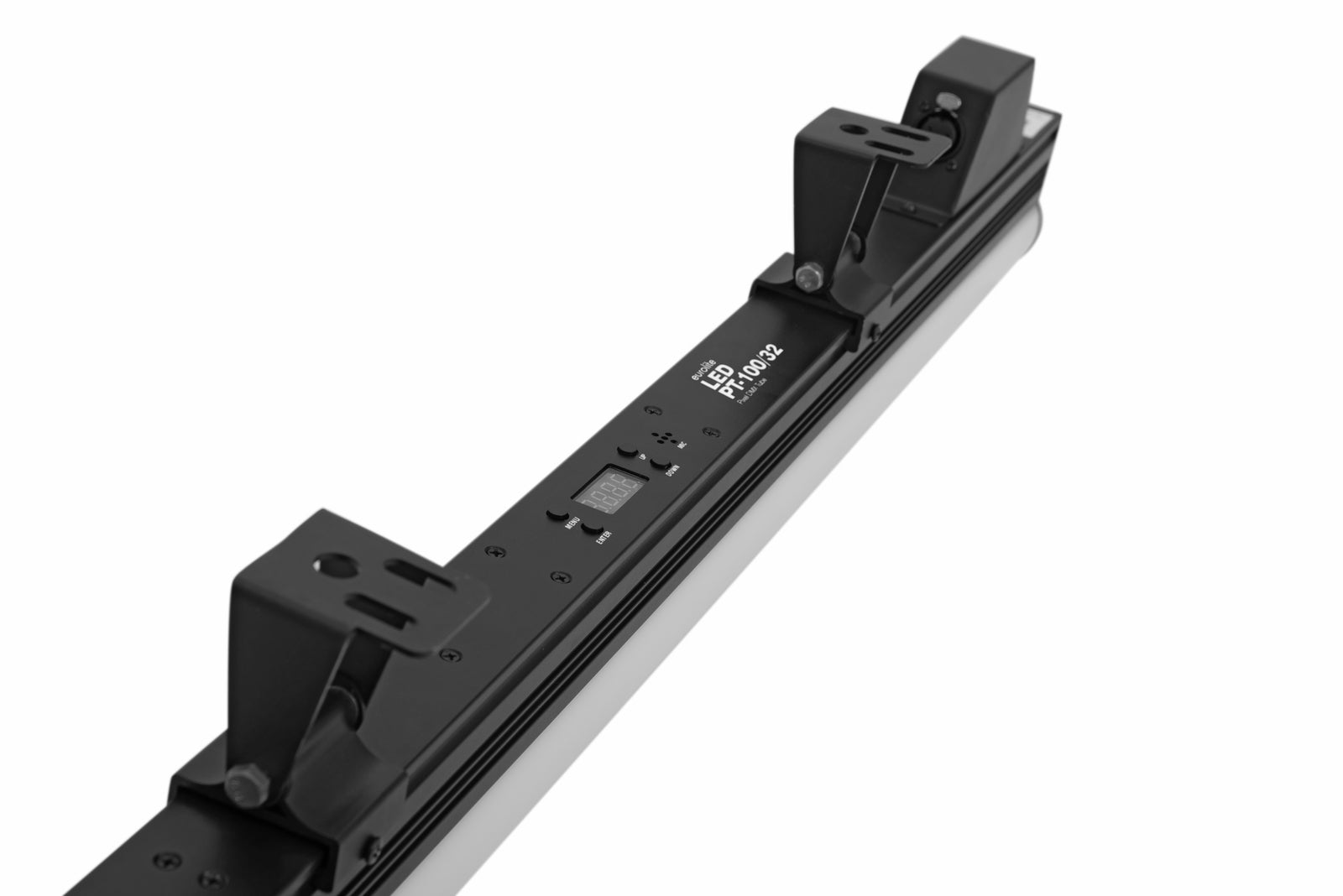

- Addressing and setting via control panel with 4-digit LED display

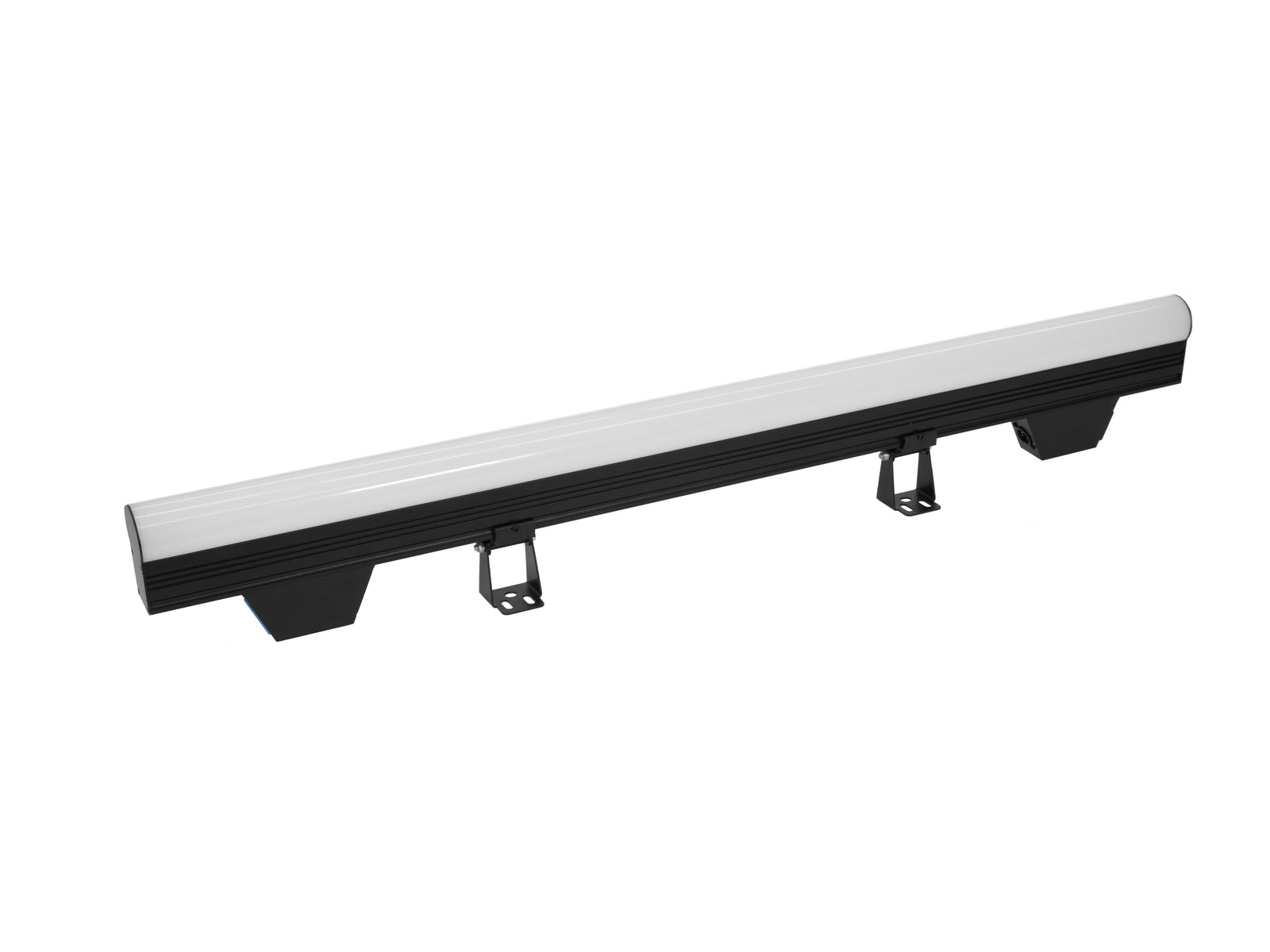

- Metal housing with swivel mounting brackets
- P-Con terminals for power linking up to 8 units
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 96 x SMD 5050 3in1 TCL RGB (homogenous color mix)
- Control: Stand-alone; DMX; Sound to light via Microphone
- Projection: flicker-free
Power supply: | 100-240 V AC, 50/60 Hz |
Power consumption: | 30 W |
IP classification: | IP20 |
Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
Power output: | 1 x P-Con (gray), mounting version |
LED: | 96 x SMD 5050 3in1 TCL RGB (homogenous color mix) |
Flash rate: | 20 Hz |
DMX channels: | 3; 5; 8; 48; 96 |
DMX input: | 3-pin XLR (M) mounting version |
DMX output: | 3-pin XLR (F) mounting version |
Cooling: | passivcooling by convection |
Control: | Stand-alone |
DMX | |
Sound to light via Microphone | |
Beam angle (1/2 peak): | 120° |
Housing color: | Black |
Length: | 99.9 cm |
Width: | 5.9 cm |
Height: | 15.3 cm |
Weight: | 2.10 kg |
Legal specifications | |
Ecodesign regulation: | Yes |
Special product: | Not designed for household room illumination |
Purpose: | Show effect lighting |
PACKAGING UNITS
PU | EAN | WEIGHT | DIMENSIONS |
---|---|---|---|
1 | 4026397672589 | 2,62 kg | 104,2cm x 9,7cm x 19,5cm |
4 | 4026397672596 | 11,60 kg | 105,7cm x 40,3cm x 23cm |
