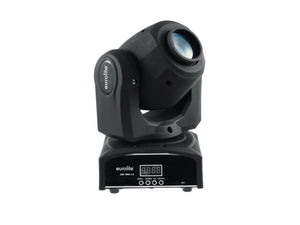

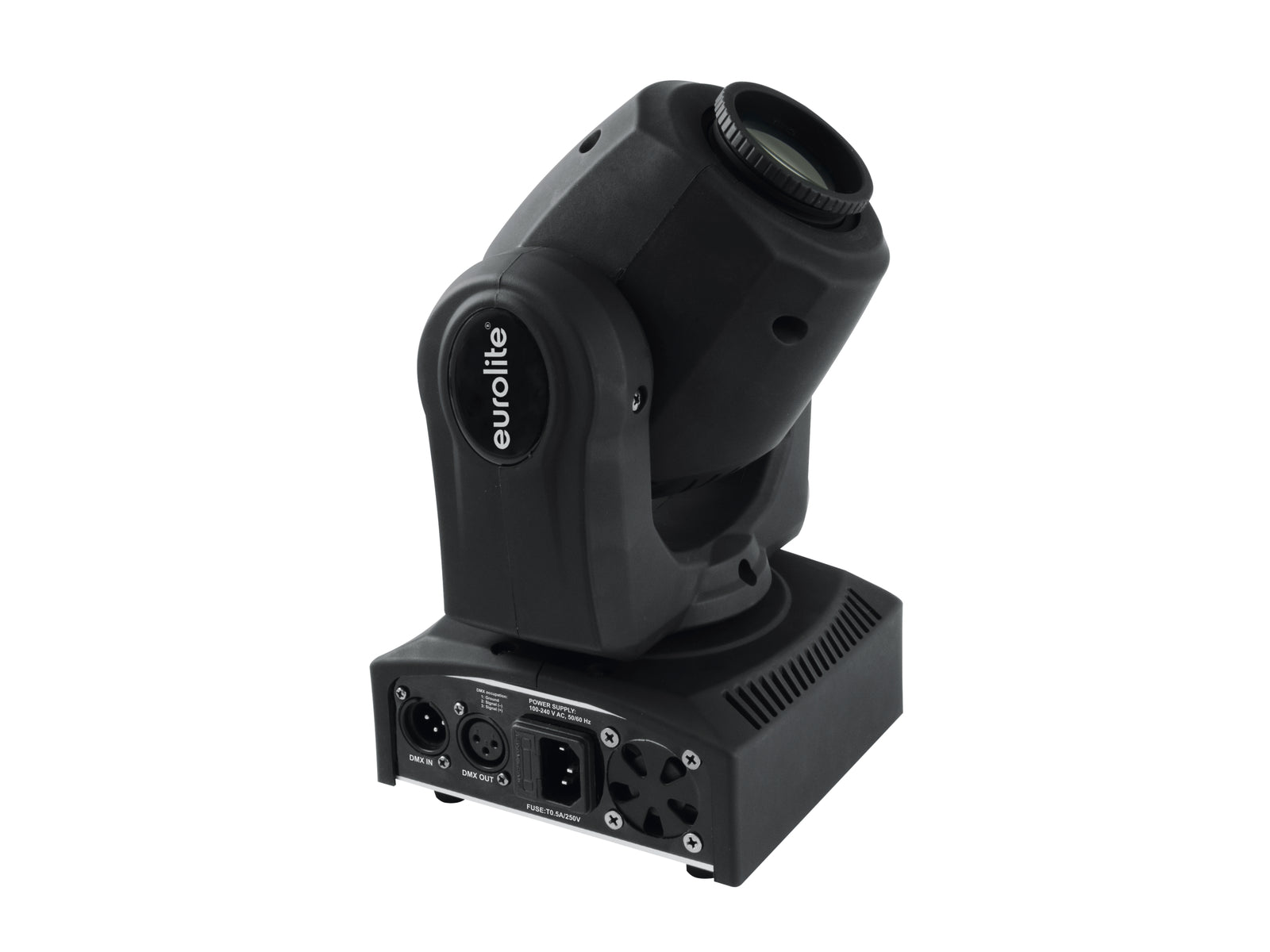

Handy-size spotlight with 10 W LED, gobos and color wheel
- Compact lightweight
- Equipped with a 10 W CREE LED
- 9 or 11 DMX channels selectable
- 7 brilliant, dichroic colors plus white
- Rainbow effect with adjustable speed

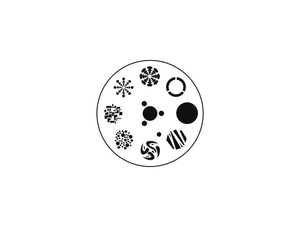

- Gobo wheel with 7 static gobos plus open
- Electronic dimmer
- Strobe effect with adjustable speed
- Internal programs
- Sound-control via built-in microphone; sensitivity adjustable

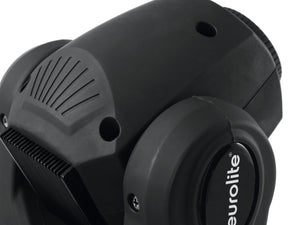

- Fan-cooled
- Manual focus
- Exact positioning via 16 bit PAN/TILT movement resolution
- Positioning within 540° PAN and 200° TILT
- DMX-controlled operation or stand-alone operation with Master/Slave function

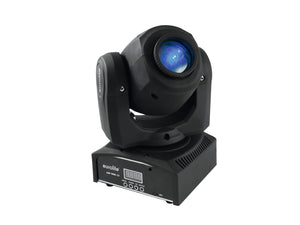

- Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
- Switch-mode power supply for operation between 100 and 240 volts
- LED: 1 x high-power 10 W Color wheel
- Color wheel 7 dichroic filters plus open
- Control: Stand-alone; Sound to light via Microphone; DMX
- Effect: Gobo effect; Single Beam
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 30 W |
| IP classification: | IP20 |
| Power connection: | Mains input IEC connector (M) mounting version Power supply cord with safety plug (provided) |
| LED: | 1 x high-power 10 W Color wheel |
| Max. TILT movement: | Exact positioning (16 bit resolution) 200° |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° |
| Equipment: | Gobo wheel with static gobos |
| Color generation: | Color wheel 7 dichroic filters plus open |
| Gobos: | Gobo wheel with static gobos, 7 gobos and open |
| DMX channels: | 9; 11 |

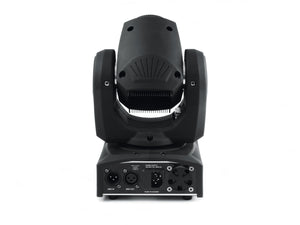

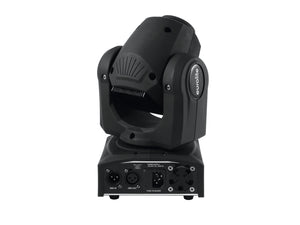

| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone |
| Sound to light via Microphone | |
| DMX | |
| Beam angle (1/2 peak): | 13° |
| Illuminance in Lux (lx): | CW 3m: 342 lx, 6m: 86 lx |
| Housing color: | Black |
| Width: | 16 cm |
| Height: | 28 cm |
| Depth: | 15.8 cm |
| Weight: | 2.50 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
PACKAGING UNITS
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4026397553604 | 3,03 kg | 29cm x 22cm x 27cm |
| 6 | 4026397553611 | 19,25 kg | 67cm x 31cm x 58cm |
