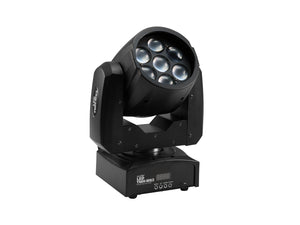

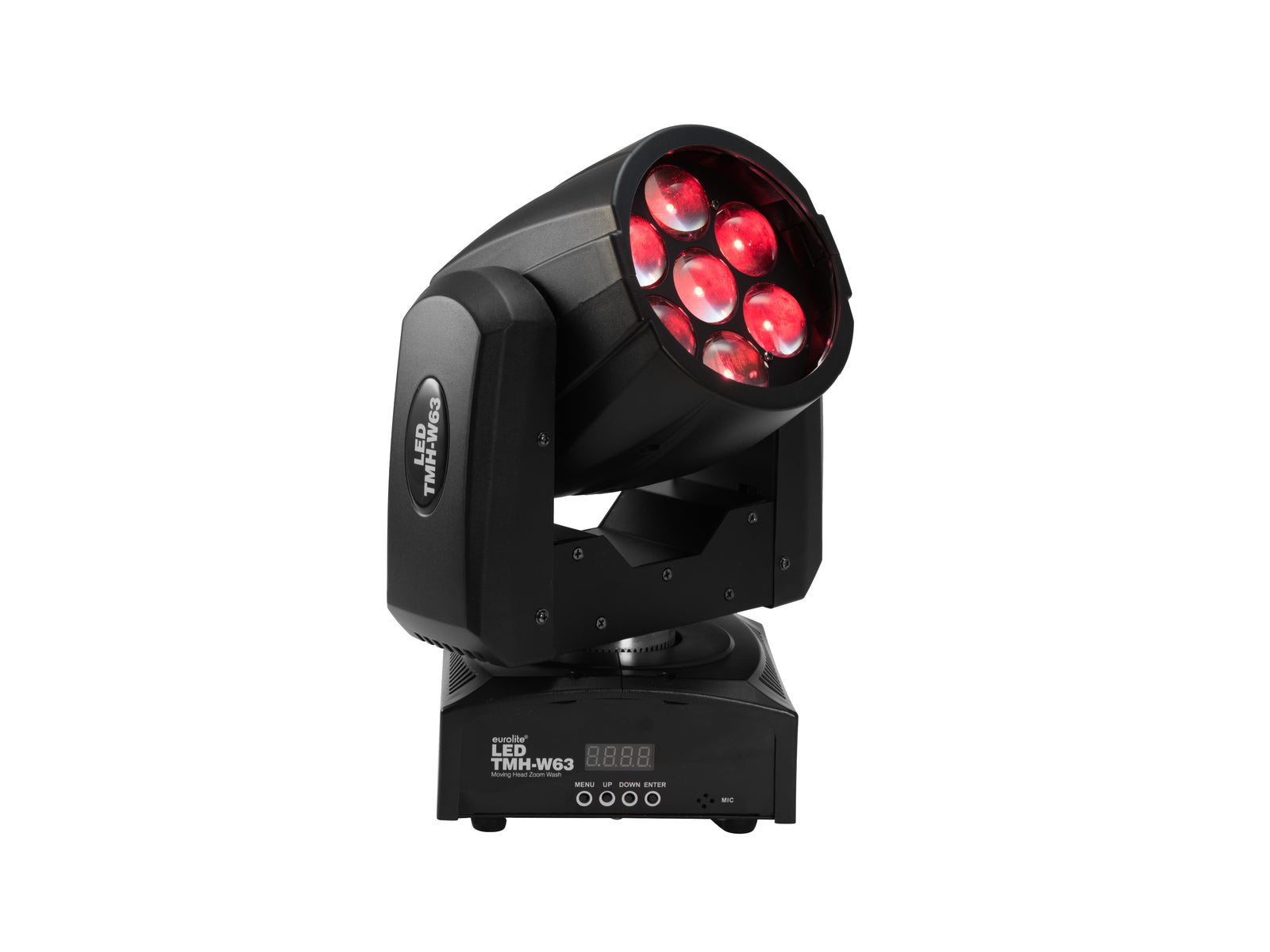

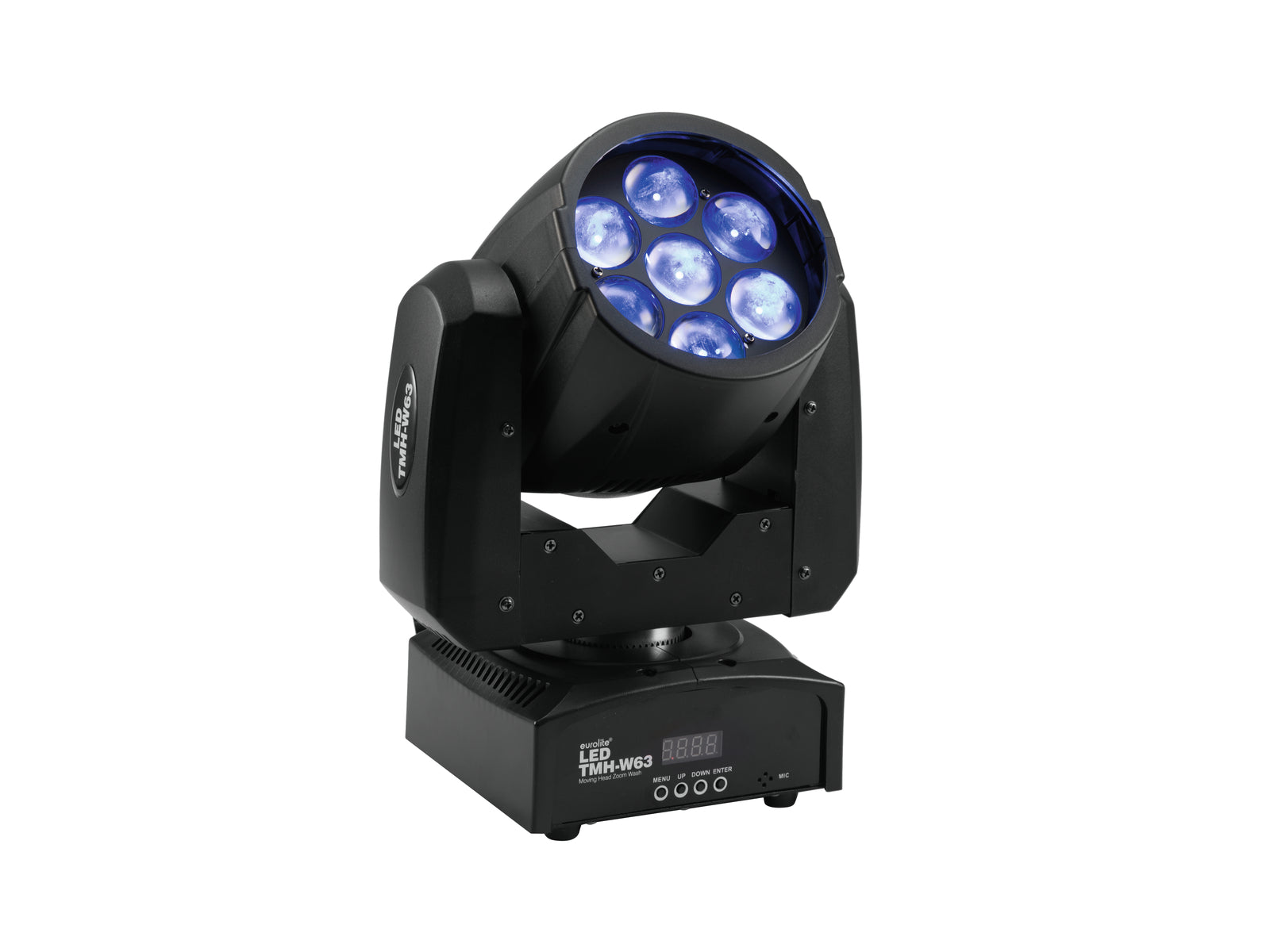

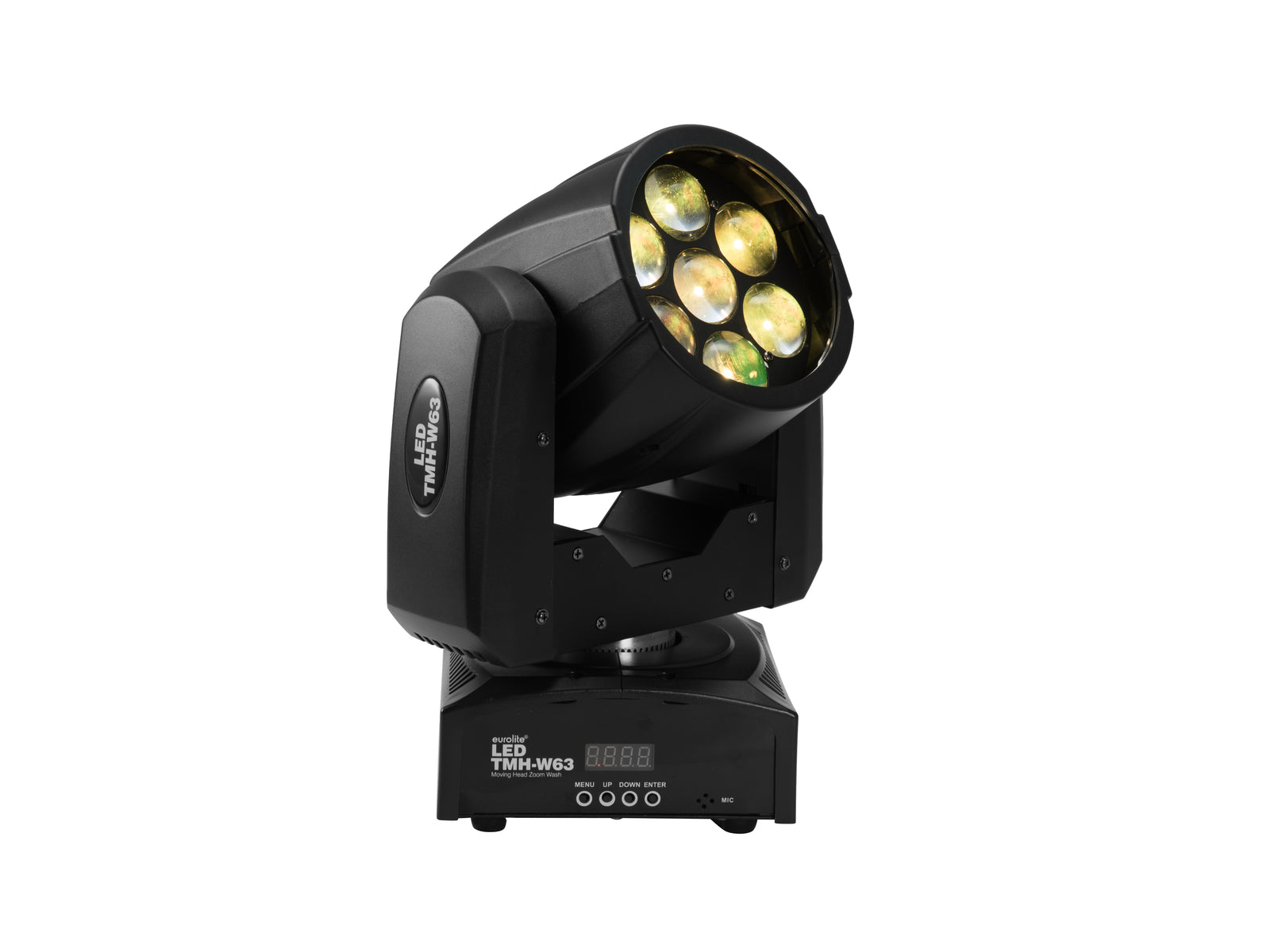

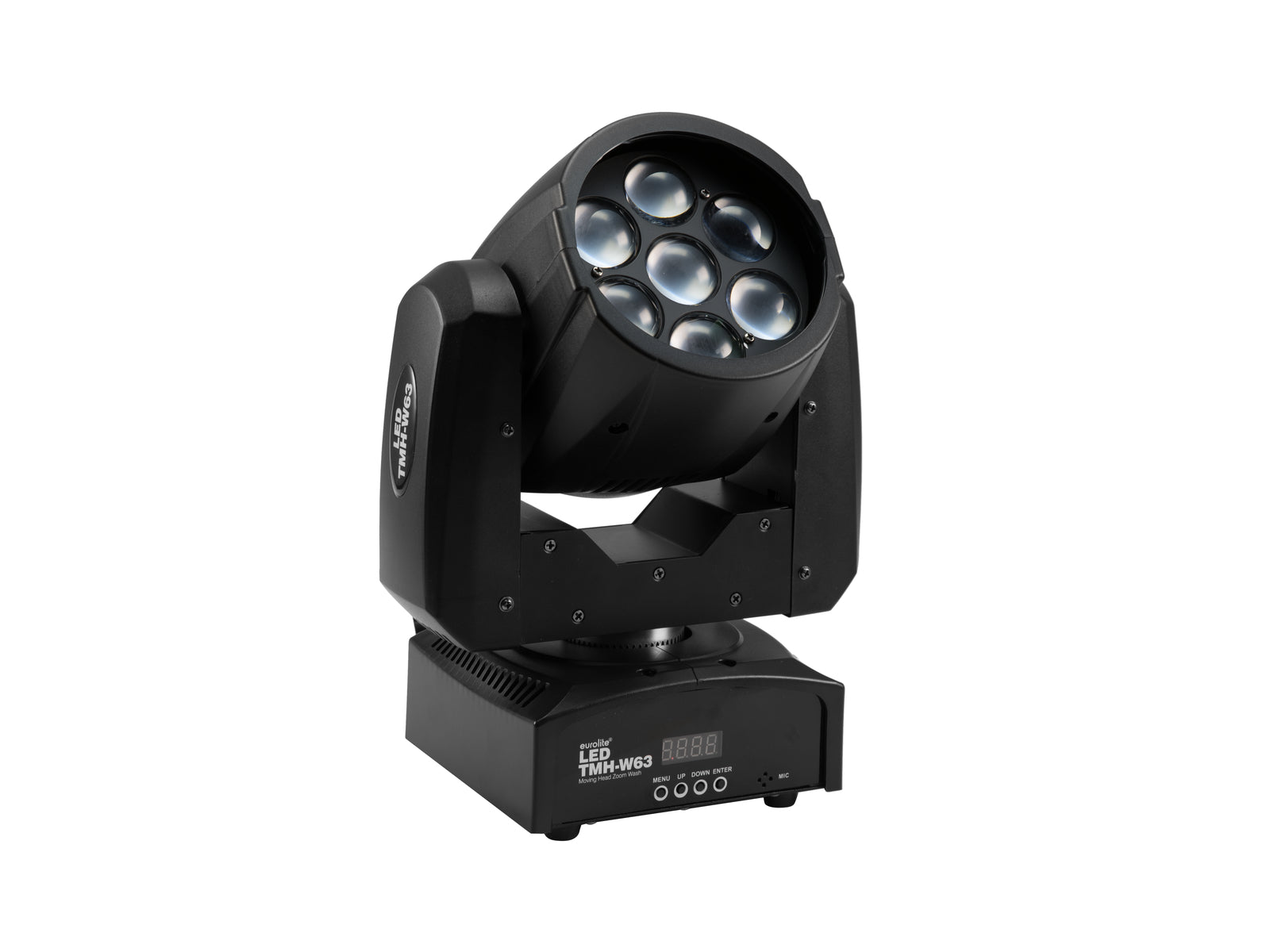

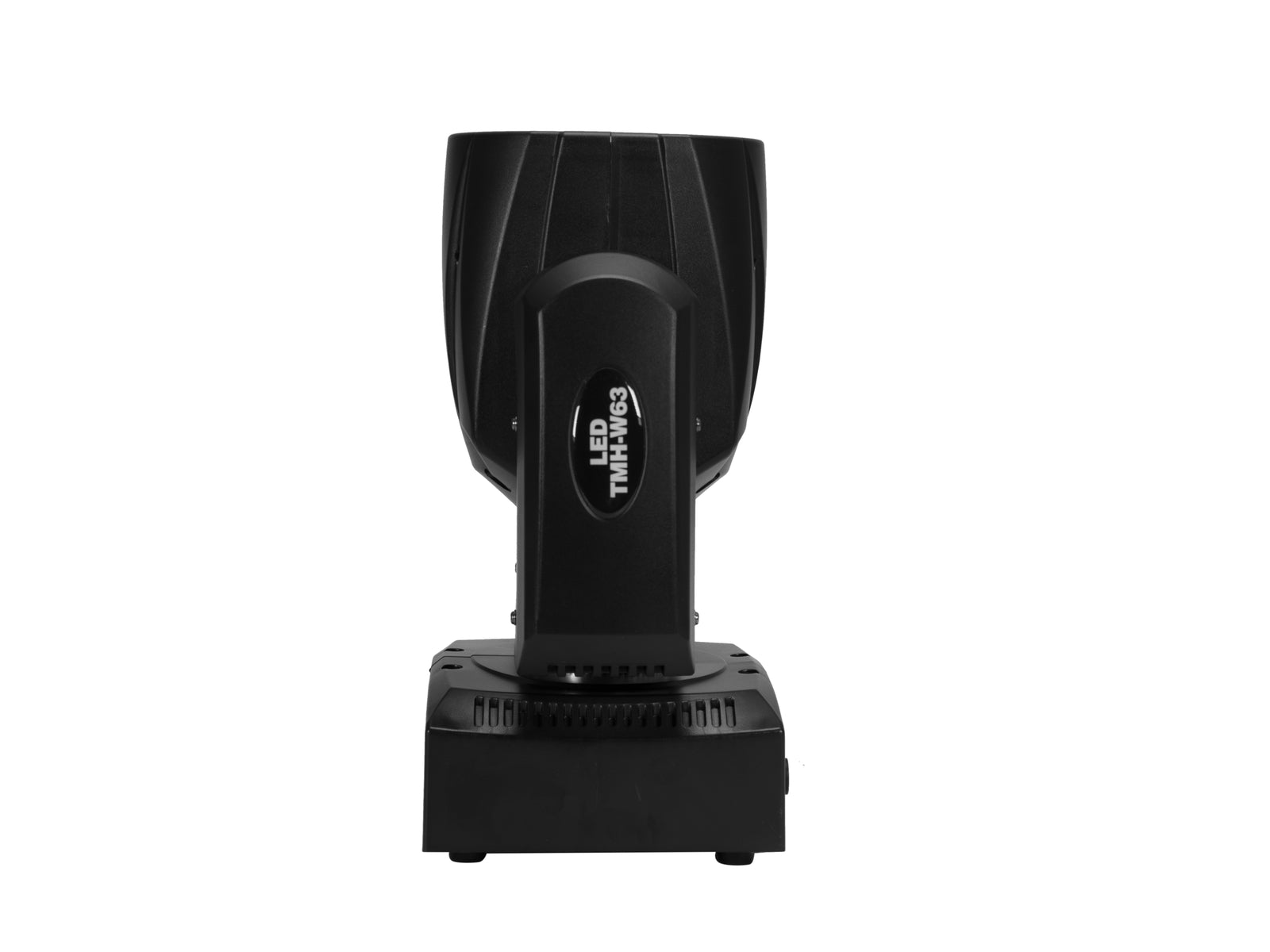

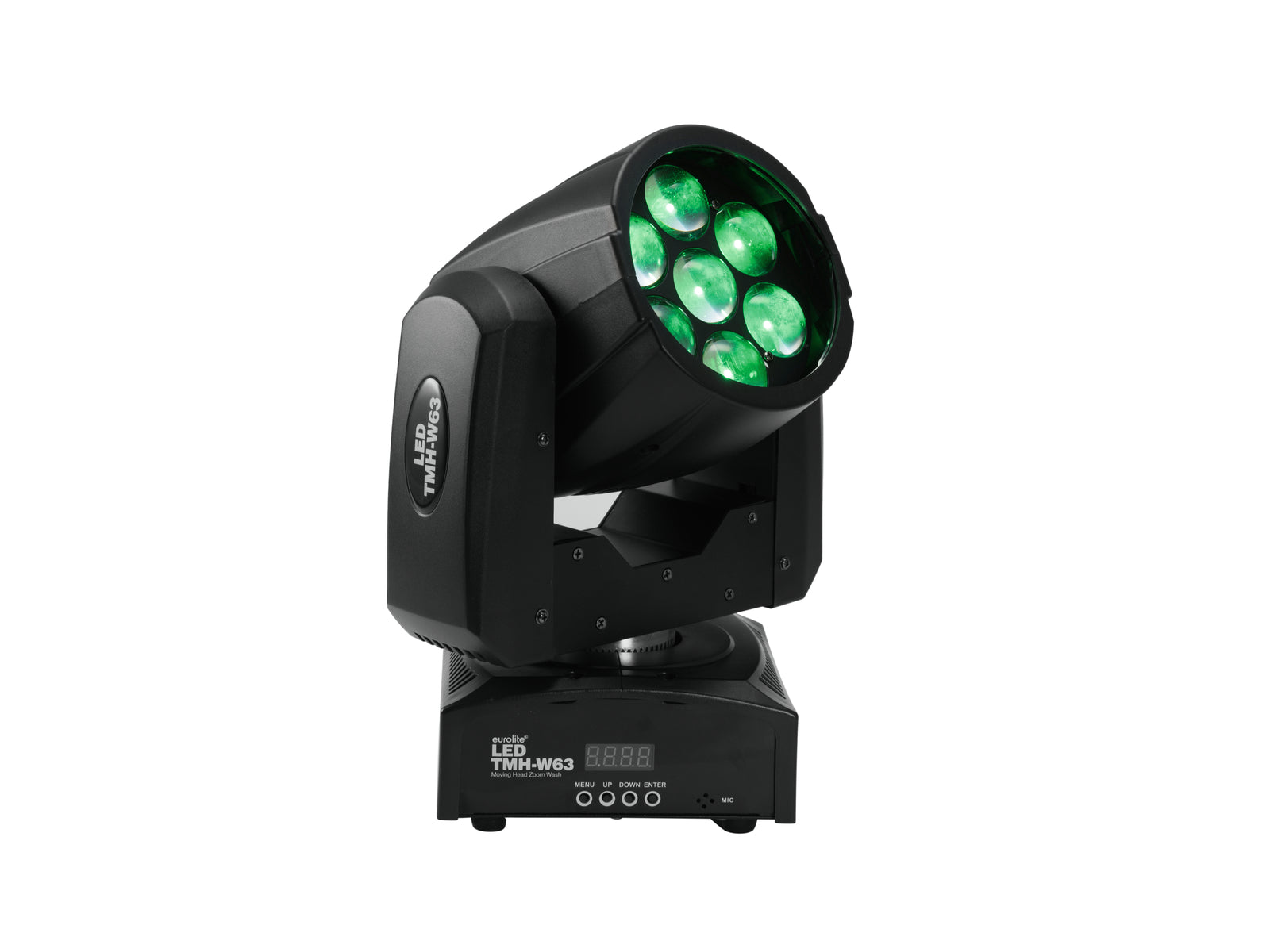

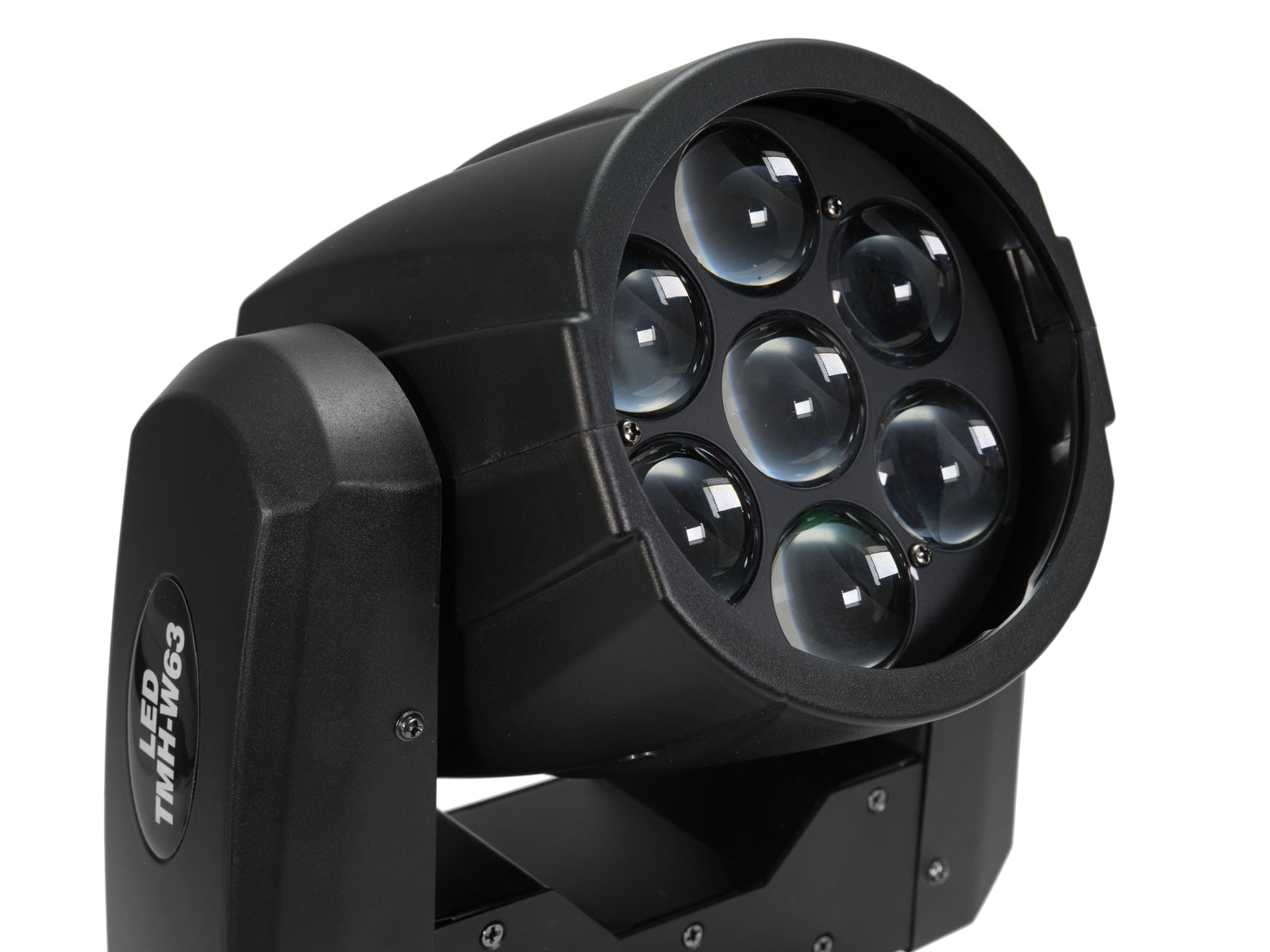

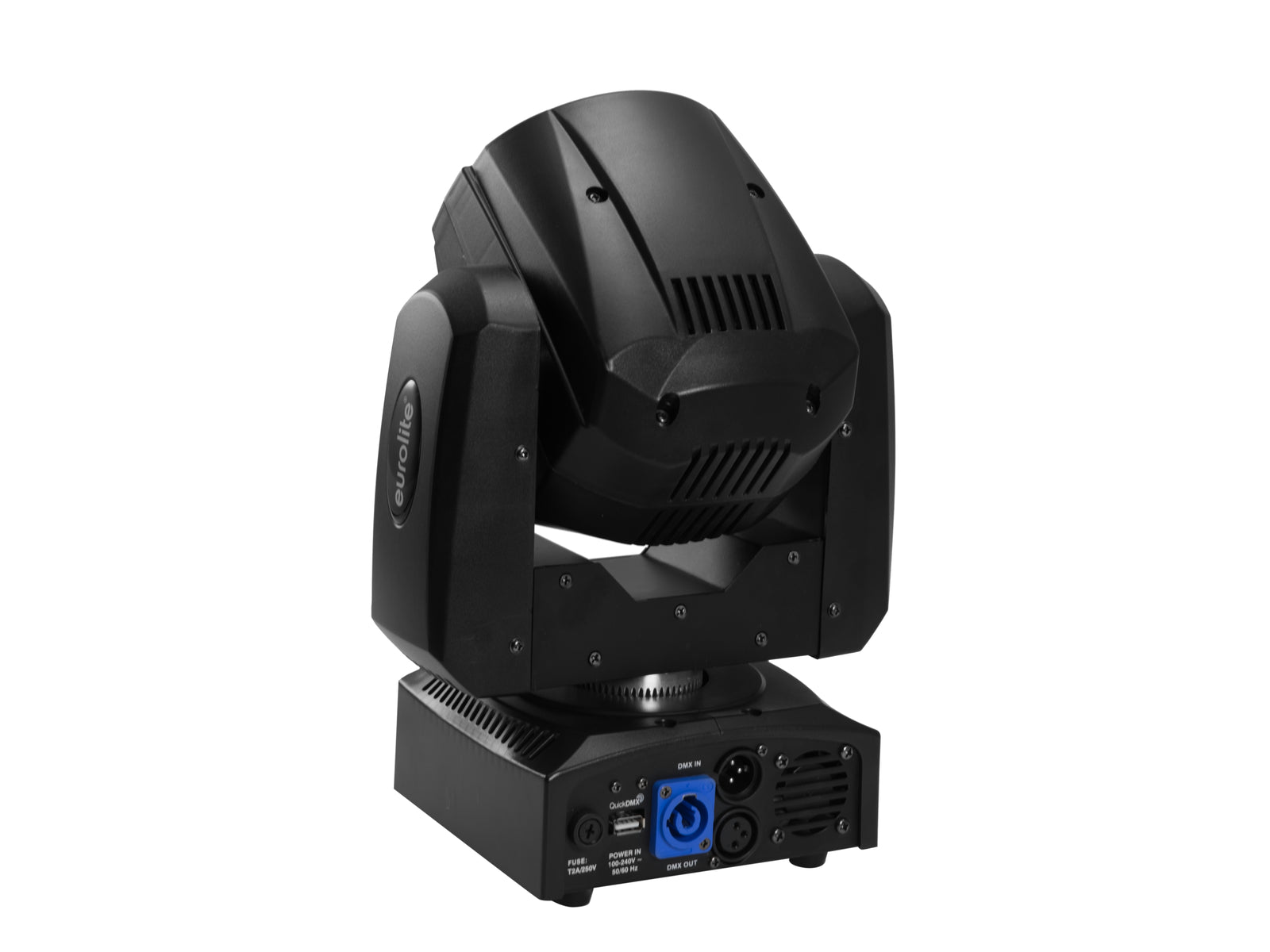

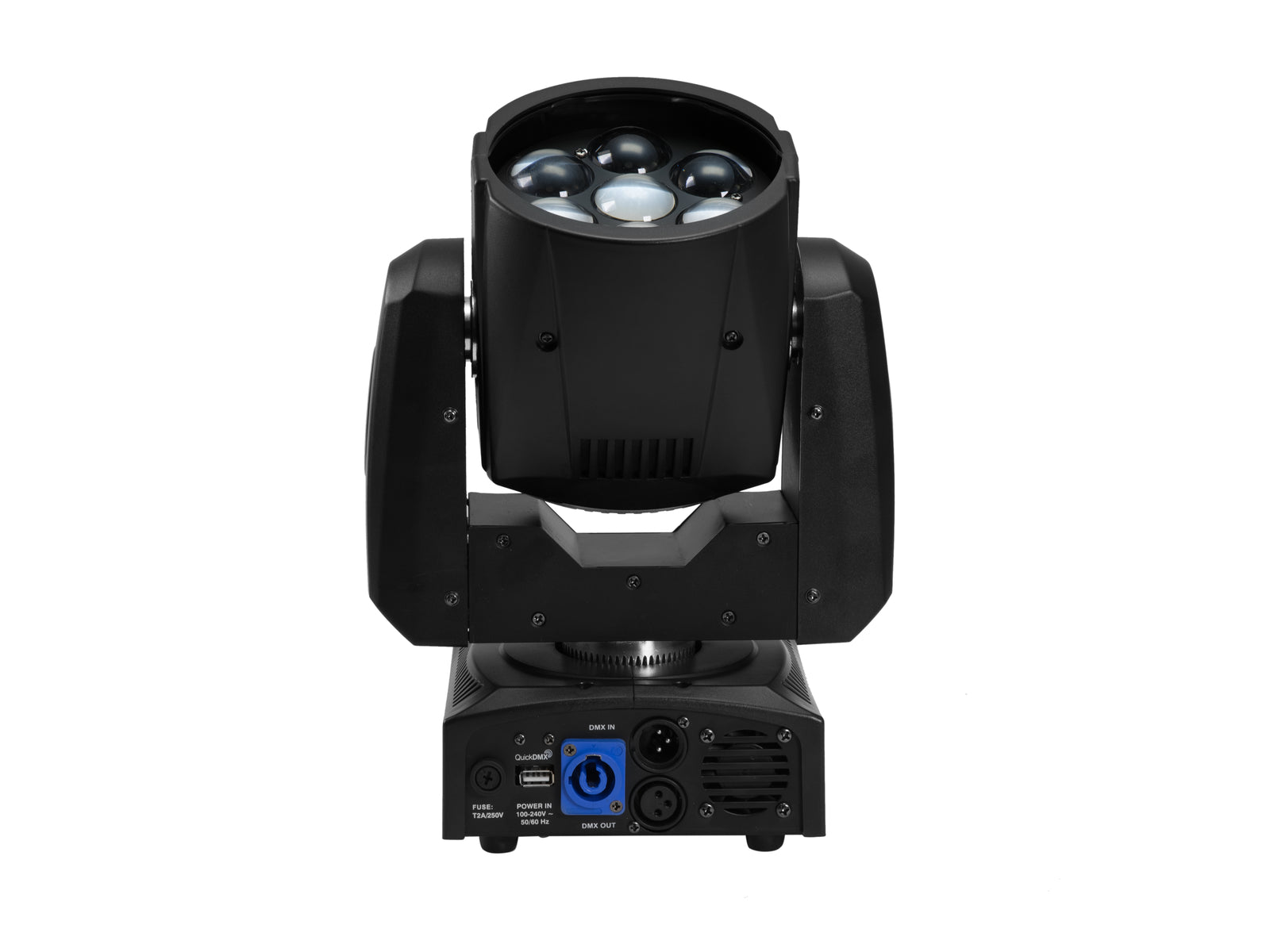

Washlight with 7 intense 9 W LEDs (4in1) and motorized zoom

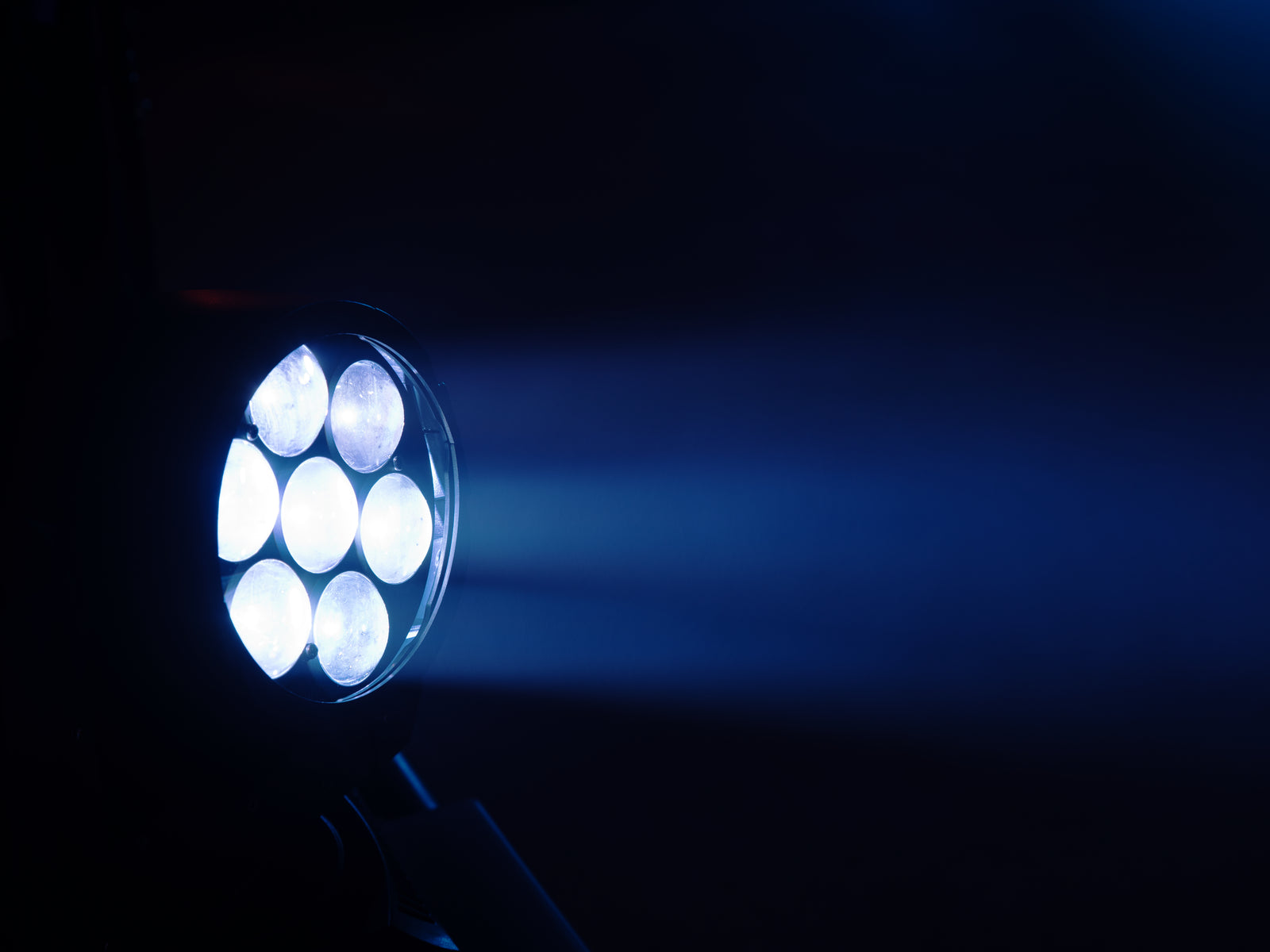

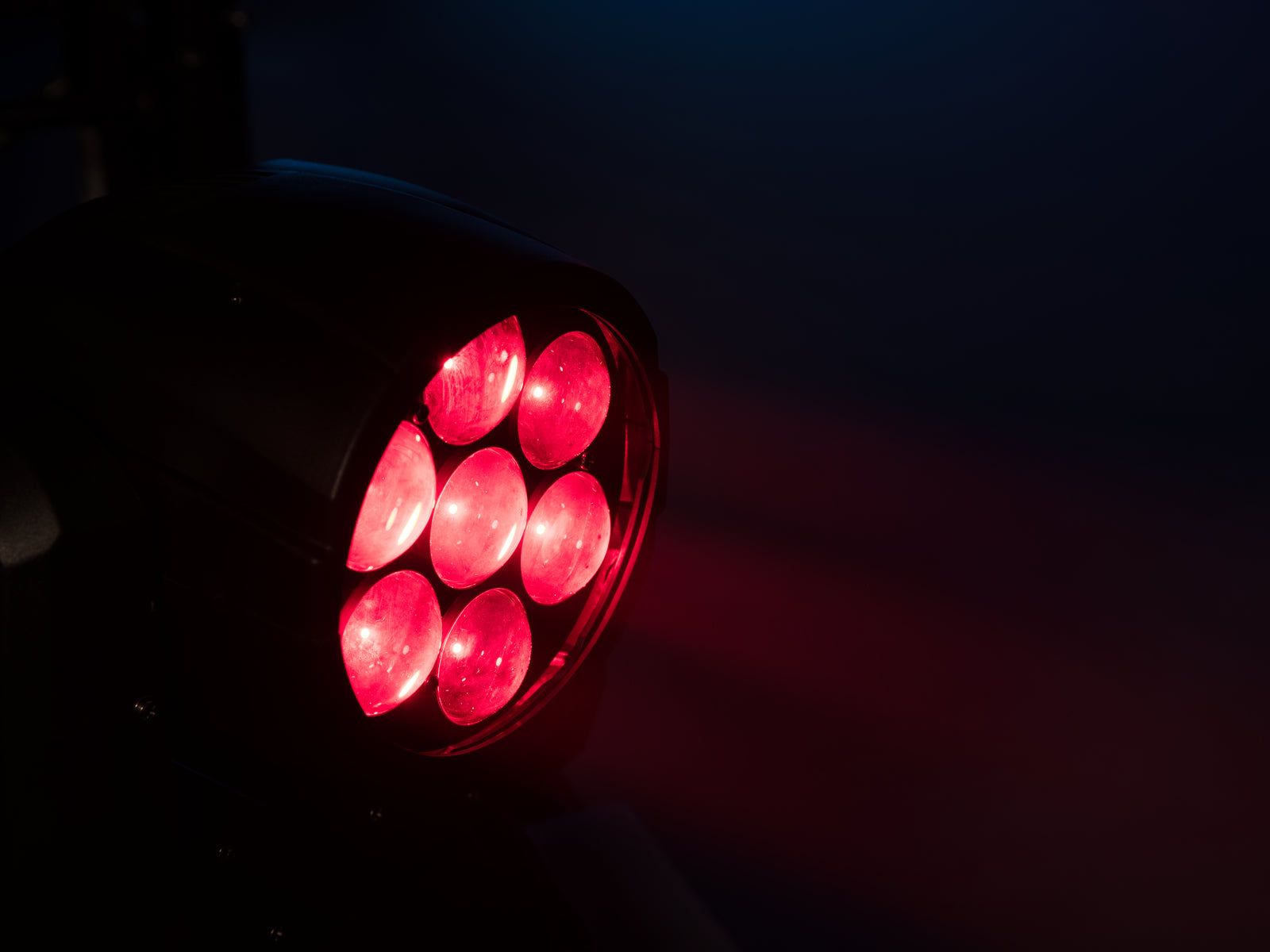

- 7 high-power 9 W RGBW LEDs (4in1)
- Positioning within 540° PAN and 220° TILT
- Stepless RGBW color mixture
- Built-in auto and music show programs
- Motion macros
- Strobe effect with variable speed
- Strobe effect by random generator
- Dimmer
- Motorized zoom with 6-18° beam angle
- Supports QuickDMX - the wireless DMX-system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- Sound-control via built-in microphone with adjustable microphone sensitivity
- Exact positioning via 16 bit PAN/TILT movement resolution
- Fan-cooled
- Auto, music, master/slave and DMX mode

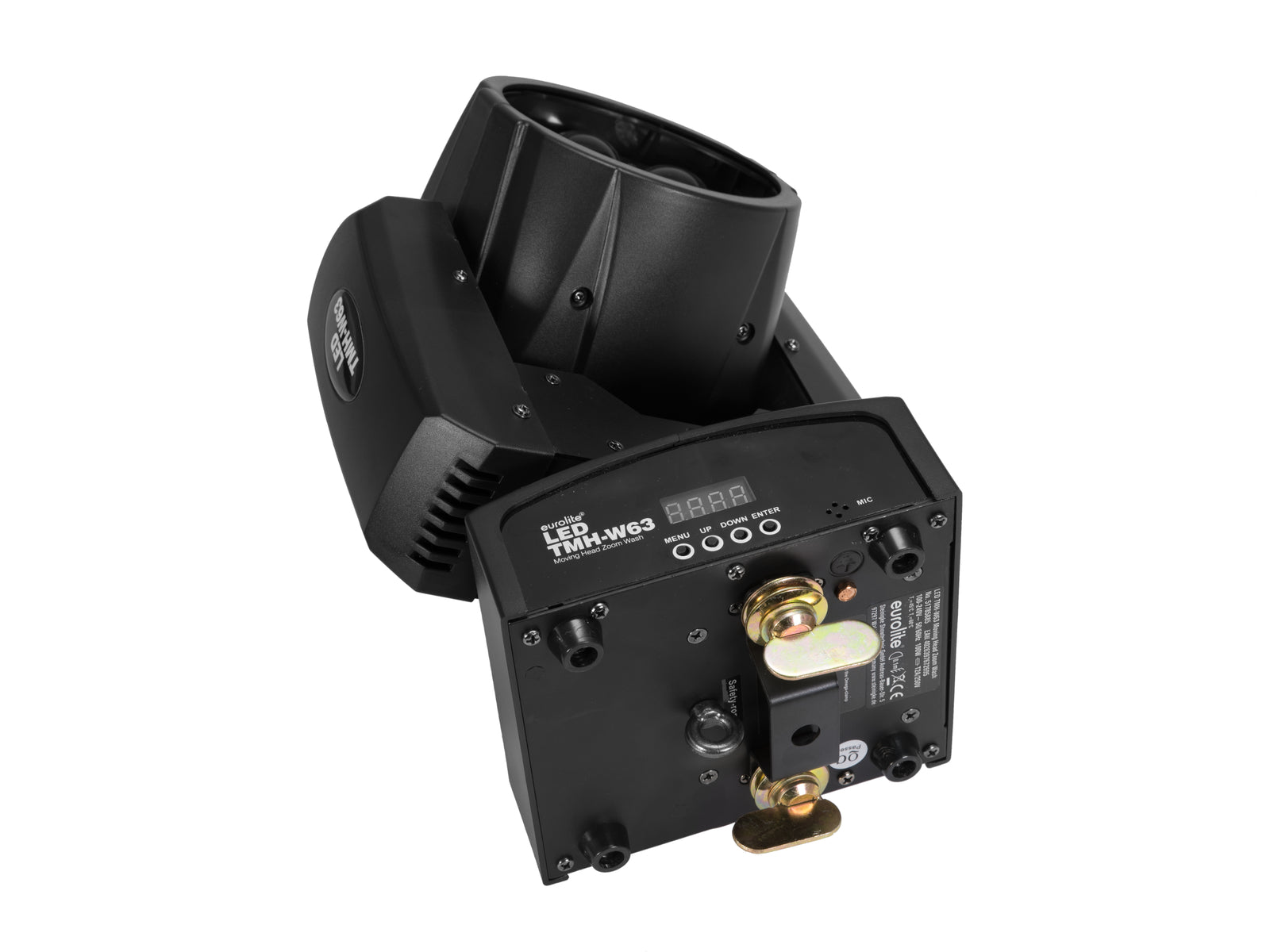

- Control board with 4-digit LED display for adjusting the DMX-starting address, PAN/TILT Reverse, Program, Reset
- Switch-mode power supply for operation between 100 and 240 volts

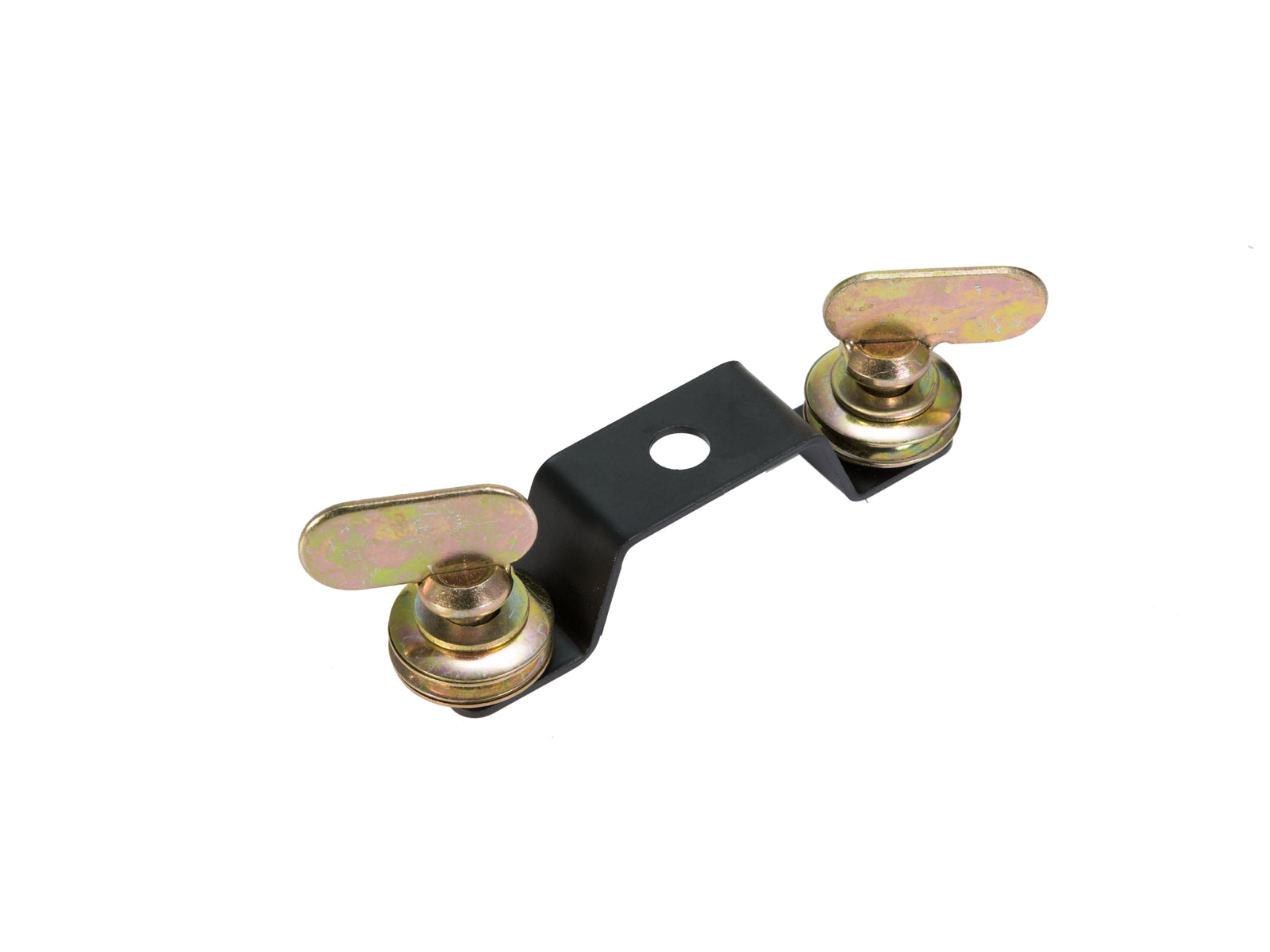

- Additional rubber feet when the spot shall be positioned on the floor
- LED: 7 x high-power 9 W 4in1 QCL RGBW (homogenous color mix)
- Control: Stand-alone; DMX; QuickDMX via USB (optional); Master/slave function; Sound to light via Microphone
- Projection: flicker-free
| Power supply: | 100-240 V AC, 50/60 Hz |
| Power consumption: | 100 W |
| IP classification: | IP20 |
| Power connection: | Mains input P-Con (blue), mounting version Power supply cord with safety plug (provided) |
| Fuse: | 5 x 20 mm T, 2 A Fuse replaceable |
| LED: | 7 x high-power 9 W 4in1 QCL RGBW (homogenous color mix) |
| Max. TILT movement: | Exact positioning (16 bit resolution) 220° |
| Max. PAN movement: | Exact positioning (16 bit resolution) 540° |
| Equipment: | Zoom motor-driven |
| DMX channels: | 15 |
| DMX input: | 3-pin XLR (M) mounting version |
| DMX output: | 1 x 3-pin XLR (F) mounting version |
| Cooling: | Cooling fan |
| Control: | Stand-alone |
| DMX | |
| QuickDMX via USB (optional) | |
| Master/slave function | |
| Sound to light via Microphone | |
| Beam angle (1/2 peak): | 6 - 18° |
| Beam angle (1/10 peak): | 11 - 29° |
| Illuminance in Lux (lx): | R red 1m: 7863 lx, 3m: 1074 lx, 6m: 269 lx |
| G green 1m: 15691 lx, 3m: 2179 lx, 6m: 549 lx | |
| B blue 1m: 2497 lx, 3m: 406 lx, 6m: 103 lx | |
| CW 1m: 17115 lx, 3m: 2398 lx, 6m: 605 lx | |
| all 1m: 40258 lx, 3m: 5714 lx, 6m: 1432 lx | |
| Housing color: | Black |
| Width: | 21.0 cm |
| Height: | 29.5 cm |
| Depth: | 16.0 cm |
| Weight: | 4.17 kg |
| Legal specifications | |
| Ecodesign regulation: | Yes |
| Special product: | Not designed for household room illumination |
| Purpose: | Show effect lighting |
PACKAGING UNITS
| PU | EAN | WEIGHT | DIMENSIONS |
|---|---|---|---|
| 1 | 4026397672695 | 4,70 kg | 27cm x 27cm x 34cm |
| 4 | 4026397675764 | 15,50 kg | 55,2cm x 35,5cm x 55,2cm |
