Jem Compact Hazer Pro

Jem Compact Hazer Pro

Prezzo di listino
€1.110,00
Prezzo scontato
€1.110,00
Prezzo di listino
€1.297,00
Esaurito
Prezzo unitario
per
Imposte incluse.

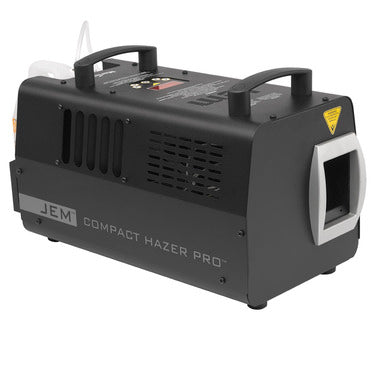

Robust yet small and lightweight, the JEM Compact Hazer Pro is a versatile haze machine designed for the highly demanding professional market. Its ability to produce exceptional atmospheric haze effects in a short period of time while operating at low noise levels make it ideal for nearly any application from shows and events to theatre, TV studios, clubs, cruise ships, theme parks and more.

  • Ultra-fast 1 minute ready time
  • Shutdown cycle to prevent clogging
  • Actors' Equity/Broadway League Approved

FEATURES

  • Continuous effect output.
  • Sealed fluid system with quick-connect fittings
  • User-friendly on board digital control panel.
  • Independent variable haze and fan control.
  • Water-based fluid provides dense particles and even haze.
  • 2.5 l fluid reservoir - up to 20 hours on full output.
  • Optical Density Timer Control system.
  • Advanced Pump Technology (APT)
  • Optional flying kit, air director and digital remote control.
  • Small footprint - lightweight, less than 25 lb. filled.


SPECIFICATIONS

PHYSICALLength: 532 mm (21 in.)Width: 224 mm (8.9 in.)Height: 278 mm (11 in.)Height with hanging bracket: 296 mm (11.7 in.)Weight, dry: 8.5 kg (18.8 lbs.)Weight, filled: 11 kg (24.3 lb.)

PERFORMANCECoverage volume:

3800 m3 (134,196 ft3) per hour
Operating time with 2.5 l of fluid (min/max): 20/70 HoursReady time: 1-minuteContinuous effect output

CONTROL AND PROGRAMMINGControl options: Digital control panel, DMX, optional digital remote control, master/slave link modeControl parameters: Continuous or timer-controlled outputHaze and fan: Independent variable output, 0-100%DMX channels: 3 (Haze, Fan, Control)Self-cleaning cycle: Manually engaged or DMX triggerDMX compliance: ANSI E1.11 - USITT DMX512-A

CONSTRUCTIONHousing: Steel & aluminumColor: BlackAirflow control: Optional Air DirectorHeat exchanger: 900 W, thermally protectedBlower fan: Integrated, 200-2500 RPMFluid pump: Oscillating piston, high pressureFluid management: Fluid out sensing, sealed for transportationFluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting

INSTALLATIONMounting: Standing or optional hanging kitOrientation: Up to +/- 30° from horizontalClearance around machine: 100 mm (4 in.)

CONNECTIONSAC Power: Neutrik PowerCONDMX, link mode in/out: 5-pin locking XLRRemote control: 3-pin locking XLRFirmware: AVR socket

ELECTRICALEU Model:

AC Power : 220-240 V, 50/60 Hz
Main fuse: 6.3 AT (slow-blow), 250 V
Typical power and current: 1010 W, 4.4 A*
US Model:
AC Power: 110-120 V, 50/60 Hz
Main fuse: 10 AT (slow-blow), 125 V
Typical power and current: 1042 W, 8.68 A*
*Measurements made at nominal voltage. Allow for a deviation of +/- 10%

THERMALMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Exterior surface temperature: 30° C (86° F)Maximum nozzle temperature: 290° C (554° F)

APPROVALSEU safety: EN 60335-1+A15, EN 62233EU EMC: EN 61000-6-3EU immunity: EN 61000-6-1US safety: UL 998 (pending)Canadian safety: CSA C22.2 No 104-01 (pending)Australia/NZ: RCM (pending)Calibration factors have been developed and approved by the Actors’ Equity Association and the Broadway League for use in measuring theatrical haze with the JEM Compact Hazer Pro and JEM C-Plus Haze Fluid

INCLUDED ITEMSFluid reservoir, 2.5 l: P/N 34300521Power input cable, EU, powerCON, stripped ends, 2.5 m (8.2 ft): P/N 11501041Power input cable, US, powerCON, molded NEMA 5-15P, 2.5 m (8.2 ft): P/N 11501042
