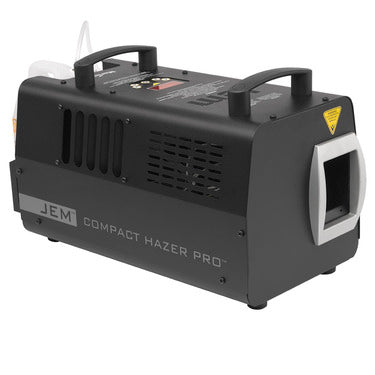

The JEM Hazer Pro is a top of the range water-based haze machine designed for the highly demanding professional market. Its ability to produce exceptionally fine atmospheric haze in a short period of time while operating at low noise levels makes it an ideal choice for rental houses, medium to large shows, theatres, studios, clubs, bars, cruise ships, theme parks and more.

Robust yet small and lightweight, the JEM Hazer Pro is capable of dispersing an even, continuous haze with superior optical clarity and reflectivity, the perfect small-particle haze for highlighting today’s highly defined light beams. The highly efficent JEM C-Plus Haze fluid was developed for the JEM Hazer Pro and a full reservoir can yield up to 65-hours of run time before refilling is neccessary.

The JEM Hazer Pro features a battery-powered automatic shutdown system that purges the trackless heat exchanger system, thus preventing clogging, reducing maintenance and extending product life. Robust control options allow the machine to be controlled independently, remotely or with DMX featuring RDM compatability.

  • Finest haze production in its class
  • Programmable fast access control keys
  • Actors' Equity/Broadway League Approved.

FEATURES

  • Continuous effect output
  • Water-based fluid provides dense particles and even haze
  • Sealed fluid system with quick-connect fittings
  • 2.5 l fluid reservoir -  10.5hours on full output
  • User-friendly on-board digital control panel
  • Pre-programmed 'silent' mode
  • Independent  variable haze and fan control
  • DMX Control with RDM
  • Road-worthy industrial design
  • Lightweight and small footprint
  • Optional Flying Kit and Digital Remote Control
  • Battery powered automatic shutdown system - prevents clogging

SPECIFICATIONS

PHYSICALLength: 565 mm (22.3 in.)Width: 271 mm (10.7 in.)Height: 298 mm (11.8 in.)Height with rigging kit: 294 mm (11.6 in.)Weight, dry: 15 kg (33.1 lbs.)Weight, filled: 17.5 kg (38.6 lbs.)

PERFORMANCECoverage volume:

5500 m3 (194,231 ft3) per hour
Operating time with 2.5 l fluid (minimum/maximum): 10.5/65 hoursOperating time: ContinuousReady time: 6-minutesAmbient noise: Silent mode

CONTROL AND PROGRAMMINGControl options: Digital control panel, programmable fast access keys, DMX, optional digital remote control, master/slave link modeControl parameters: Continuous or timer-controlled outputHaze and fan: Independent variable output, 0-100%DMX channels: 3 (Haze, Fan, Control)Self-cleaning cycle: Battery powered automatic shutdown, manually engaged, or DMX triggerDMX compliance: ANSI E1.11 - USITT DMX512-ARDM compliance: ANSI/ESTA E1.20 RDM

CONSTRUCTIONHousing: Steel and aluminumColor: BlackHeat exchanger: 600 W trackless heat exchanger, thermally protectedBlower fan: Integrated, 200-2500 RPMFluid pump: Oscillating piston, high pressureFluid management: Fluid out sensing, sealed for transportationFluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting

INSTALLATIONMounting: Standing or optional flying kitOrientation: Up to +/- 30° from horizontalClearance around machine: 100 mm (4.0 in.)

CONNECTIONSDMX, link mode in/out: 3- and 5-pin locking XLRRemote control: 3-pin locking XLRFirmware: AVR socket

ELECTRICALEU Model:

AC power: 220-240 V, 50/60 Hz
Main fuse: 6.3 AT (slow blow), 250 V
Typical power and current: 675 W, 3.1 A*
US Model:
AC power: 100-130 V, 50/60 Hz
Main fuse: 10 AT (slow blow), 125 V
Typical power and current: 675 W, 6 A*
AC power: Neutrik powerCon*Measurements made at nominal voltage. Allow for a deviation of +/- 10%

THERMALMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 5° C (41° F)Exterior surface temperature, steady state: 30° C (86° F)Maximum nozzle temperature: 290° C (554° F)

APPROVALSEU safety: EN 60 335-1+A15, EN 62233EU EMC: EN 61000-6-3EU immunity: EN 61000-6-1US safety: UL 998 (pending)Canadian safety: CSA C22.2 No. 104-01 (pending)Australia/NZ: RCM (pending)Calibration factors have been developed and approved by the Actors’ Equity Association and the Broadway League for use in measuring theatrical haze with the JEM Hazer Pro and JEM C-Plus Haze Fluid.

INCLUDED ITEMSFluid reservoir, 2.5 l: P/N 34300521Power input cable, EU, powerCON, stripped ends, 2.5 m (8.2 ft): P/N 11501041Power input cable, US, powerCON, molded NEMA 5-15P, 2.5 m (8.2 ft): P/N 11501042
