Laserworld EL-500RGB KeyTEX è un laser per la proiezione di pattern e testo RGB in grado di funzionare senza software né controller aggiuntivi. Viene fornito con una speciale tastiera e un telecomando a infrarossi.
La tastiera consente di controllare il l'intero sistema di illuminazione. La staffa di montaggio del laser EL-500RGB KeyTEX può essere utilizzata per montare il proiettore su pareti, soffitti o su altri punti idonei.
Features of the EL-500RGB KeyTEX are:
- write texts live with the keyboard
- save texts and recall them later
- animate the texts: scrolling, flipping, typing of single letters, rotations and many more features available through the keyboard
- trigger saved texts with infrared remote control
- play the preset patterns and effects in automatic mode or sound mode - this can be switched with the keyboard or the infrared remote control
- clock feature: set time and project it on any surface
- the projection (texts, patterns) can be multiplied through a diffraction grating at the laser aperture
- controllable via DMX
- RGB projections
- many more features available!
This text laser is equipped with a strong red (650 nm, 180 mW), green (532 nm DPSS, 80 mW) and blue (445 nm, 160 mW) laser source, so the projections are well visible. The scanning systems allows for simple text projections and runs at ca. 15 kpps@4°.

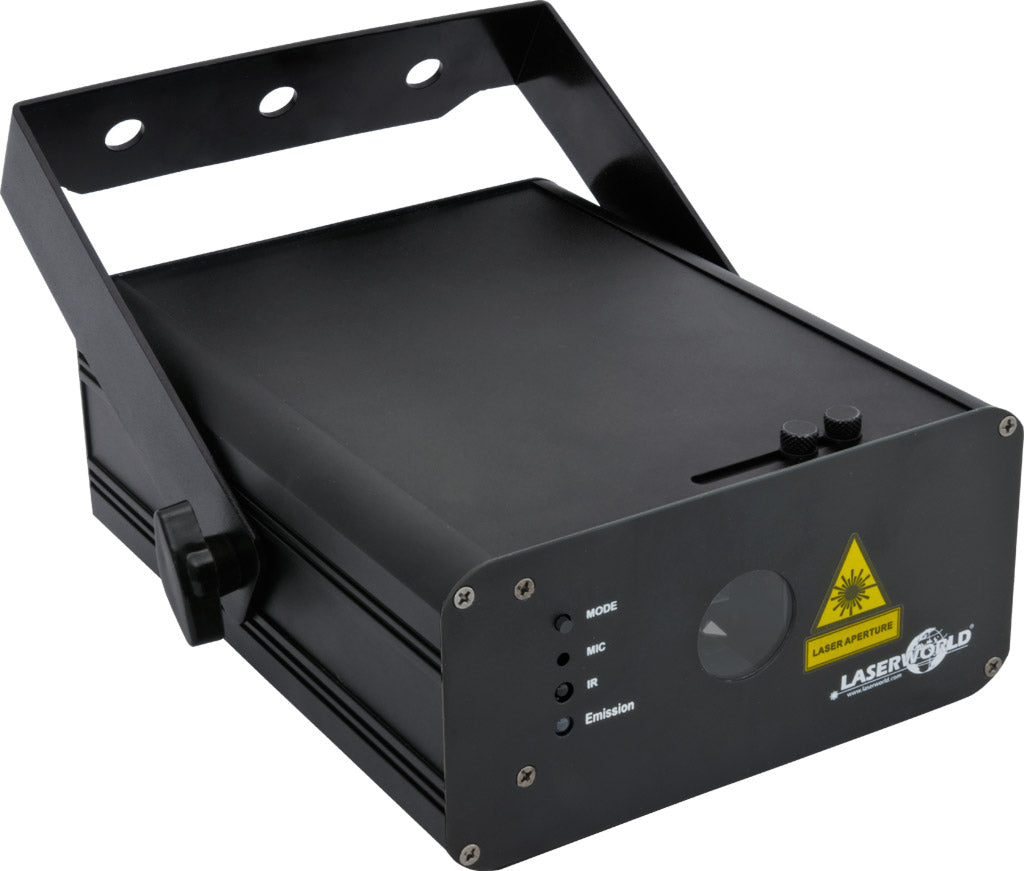

The mounting bracket of the EL-500RGB KeyTEX laser can be used to mount the projector at walls, ceilings or at other appropriate objects.

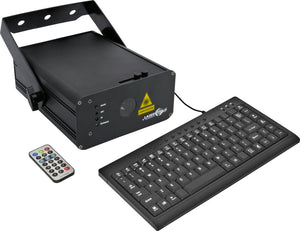

Included in delivery are:
- EL-500RGB KeyTEX laser projector
- Keyboard for EL-500RGB KeyTEX
- USB extension cable for keyboard
- Infrared remote control
- Interlock adapter
- keys for the key switch
- external power supply
Total Power typical: | 490 mW |
---|---|
Guaranteed power: | 400 mW |
Power Red: | 180 mW / 650 nm |
Power Green: | 80 mW / 532 nm |
Power Blue: | 160 mW / 445 nm |
Beam Specifications: | ca. 3 mm / 2 mrad |
Laser Sources: | DPSS, Diode |
Laser Class: | 3B |
Operation Modes: | Stand alone mode, Music mode, Text mode, Clock mode, DMX |
Scanner: | ca. 15 kpps@4°, graphics capable |
Scan Angle max.: | Grating ca. 90°, projection ca. 20° |
Basic Patterns: | ca. 50 |
Accessories: | Keyboard, USB extension cable, infrared remote control, Interlock adapter, keys, external power supply 12 V |
Power Supply: | 100 - 250 V AC |
Power Consumption: | 10 W |
Dimensions: | 210 x 165 x 85 mm |
Weight: | 1.64 kg |
