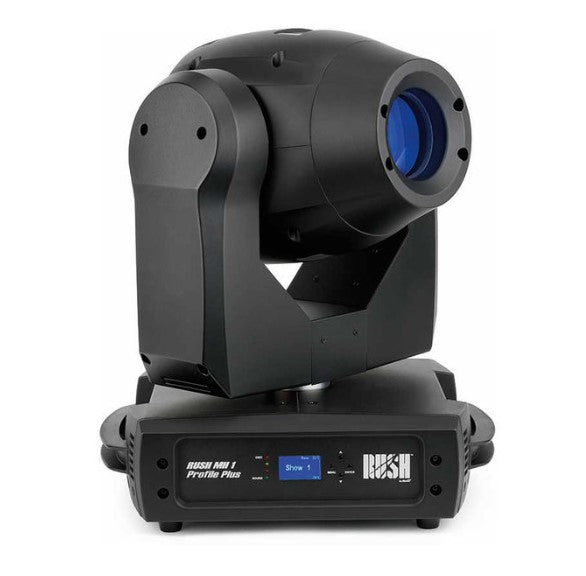

Martin Rush MH 1 Profile Plus

Martin Rush MH 1 Profile Plus

Prezzo di listino
Prezzo scontato
Prezzo di listino
Prezzo unitario
Imposte incluse.

This super bright LED profile moving head is even brighter than its predecessor RUSH MH 1 Profile with  50% more output. Efficient optics with an increased beam angle from 13 degrees to 16 degrees punches out a variety of effects and colors from two gobo wheels and two color wheels. For added versatility and effect, it also houses an electronic dimmer and strobe, iris and 3-facet prism and an improved cooling system for quieter operation.

  • 50 % increase in lumen output
  • 16 degree beam angle
  • Regulated fan control for quiet operation


  • LED profile moving head
  • Super bright - efficient optics
  • Rotating gobo wheel
  • Fixed gobo wheel
  • 2 x color wheels
  • Electronic dimming and strobe
  • Iris and 3-facet prism
  • 3 & 5 pin XLR

PHYSICALLength: 418 mm (16.5 in.)Width: 328 mm (13.0 in.)Height: 588 mm (23.2 in.)Weight: 18 kg (39.7 lbs.)

DYNAMIC EFFECTSElectronic shutter effect: Strobe effect, pulse effects, instant open and blackoutElectronic dimming: 0 - 100%, four dimming curve optionsColor wheel 1: 7 colors plus open, rotation with variable direction and speedColor wheel 2: 7 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speedRotating gobo wheel: 7 gobos plus open, wheel rotation, gobo indexing, rotation and shakeStatic gobo wheel: 8 gobos plus open, wheel rotation and shakeIris: MotorizedFocus: MotorizedPrism: Indexing and rotation with variable direction and speedPan: 540°Tilt: 270°Pan and tilt speed: Adjustable via onboard control panel and DMX

CONTROL AND PROGRAMMINGControl options: DMX, standaloneSetting and addressing: Control panel with backlit graphic displayDMX channels: 17Standalone trigger options: Music trig, auto trigStandalone sequences: 4 pre-programmed showsStandalone memory: 20 scenesMusic trig sensitivity: AdjustableDMX compliance: USITT DMX512/1990

OPTICSLight source: 180 W LED engineMinimum LED lifetime: 20,000 hours (to >70% luminous output)**Figure obtained under manufacturer´s test conditions.

PHOTOMETRIC DATAEfficacy: 25.5 lumens per wattCut-off angle: 16°Total output: 7100 lumen

CONSTRUCTIONHousing: High-impact flame-retardant thermoplasticColor: BlackProtection rating: IP20

GOBOSGobo diameter: 26.8 mm +/- 0.2 mm (1.1 in. +/- 0.008 in.)Maximum image diameter: 22.0 mm (0.87 in.)Gobo thickness, minimum: 0.3 mm (0.01 in.)Gobo thickness, maximum: 3.5 mm (0.14 in.)Gobo material: Steel, aluminum or borosilicate glass

INSTALLATIONMounting points: Two quarter-turn brackets for rigging clampsLocation: Dry location only, must be fastened to surface or structureOrientation: Any

ELECTRICALAC power: 100-240 V nominal, 50/60 HzTypical total power consumption: 300 WPower consumption figures are typical, not maximum. Allow for +/-10% variation.

THERMALCooling: Forced air, temperature controlledMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)Total heat dissipation (calculated, +/- 10%): 1010 BTU/hr. (at full intensity, full white)

APPROVALSEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR Part 15 Class AAustralia/NZ: RCM
