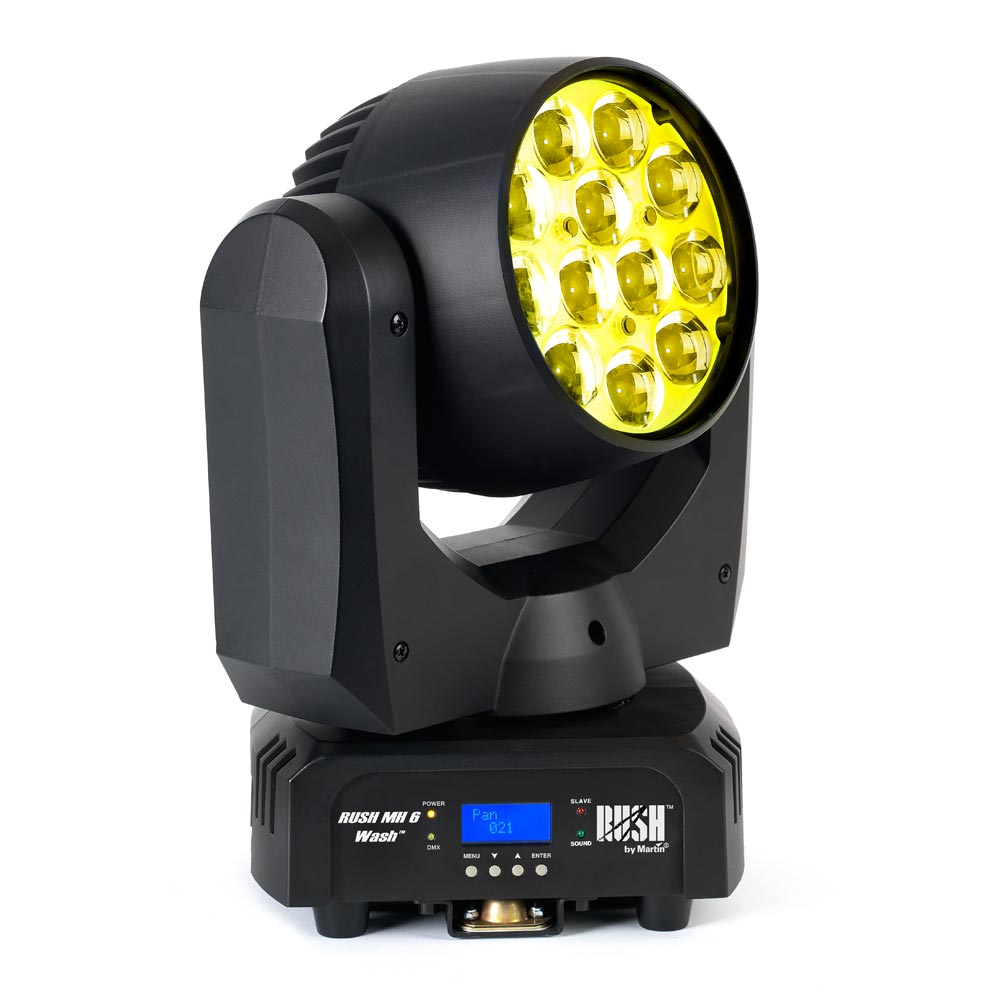

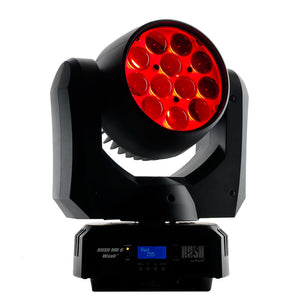

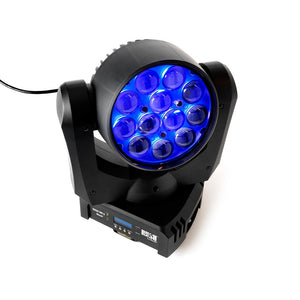

Martin Rush MH 6 Wash

PHYSICALLength: 290 mm (11.4 in.)Width: 189 mm (7.4 in.)Height: 360 mm (14.2 in.)Weight: 7.1 kg (15.7 lbs.)

DYNAMIC EFFECTSElectronic shutter effect: Instant open and blackoutElectronic dimming: 0 - 100%, four dimming curve optionsStrobe and pulse effects: Variable speed and action, random strobeColor mixing: RGBWColor presets: 36 color presets plus full white, ‘color wheel’ effectsZoom: MotorizedPan: 540°Tilt: 200°

CONTROL AND PROGRAMMINGControl options: DMX16-bit fine control: Dimming, pan and tiltWhite balance control: RGB adjustmentDMX channels: 14DMX address setting: Control panel with LCD displayDMX compliance: USITT DMX512/1990

OPTICSZoom range: 10° - 60°Light source: 12 x 10 W RGBW Osram Ostar LEDsMinimum LED lifetime: 50,000 hours (to >70% luminous output)**Figure obtained under manufacturer's test conditions.

CONSTRUCTIONHousing: High-impact flame-retardant thermoplasticColor: BlackIngress protection rating: IP20

INSTALLATIONMinimum clearance around fan and air vents: 100 mm (4 in.)Mounting points: One quarter‐turn bracket for rigging clampLocation: Indoor use only, must be fastened to surface or structureOrientation: AnyMinimum distance to combustible materials: 100 mm (4 in.)Minimum distance to illuminated surfaces: 200 mm (8 in.)

CONNECTIONSAC power in, thru: Neutrik PowerConDMX data in, thru: 3-pin and 5-pin locking XLR

ELECTRICALAC power: 100-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeFuse: T 3.15 ATypical half-cycle RMS inrush current: 11.3 A (at 240 VAC)Recommended Miniature Circuit Breaker: Type D*

TYPICAL POWER AND CURRENT120 V, 60 Hz: 1.3 A, 150 W, PF 0.99230 V, 50 Hz: 0.7 A, 150 W, PF 0.94Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
