Martin Rush PAR 4 COB UV

€534,00
€534,00
€580,00
Esaurito
Imposte incluse.

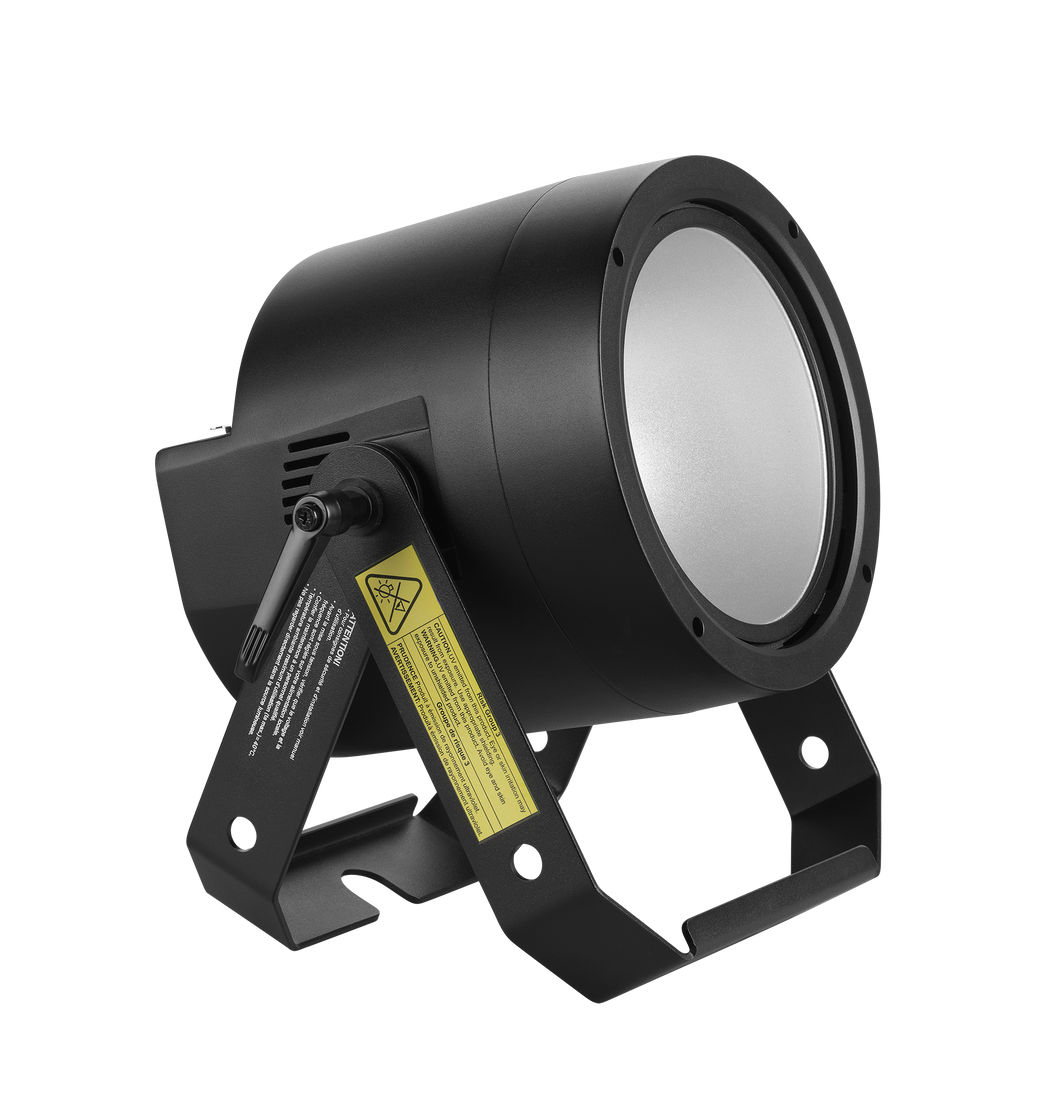

The RUSH PAR 4 UV is a bright single-lens UV LED PAR can light fixture for use in blacklight applications. The fixture includes a 100 watt COB 400nm UV LED mounted in a reflector for high-output ultraviolet light, and has regulated air cooling for quiet operation. With electronic dimming and strobe and a bracket suitable for floor or truss mounting, the RUSH PAR 4 UV is ideal for a variety of nightlife, stage, and concert applications.

  • Single-lens 100W UV LED PAR
  • Electronic dimming and strobe

FEATURES

  • 100 watt COB 400nm UV LED
  • Forced air cooling for quiet operation
  • Electronic dimming and strobe
  • Bracket suitable for floor or truss mounting
  • Lightweight construction (4 kg / 8.8 lbs.)


SPECIFICATIONS

PHYSICALLength: 327 mm (12.8 in.)Width: 312 mm (12.3 in.)Height: 207 mm (8.1 in.)Weight: 4 kg (8.8 lbs.)

DYNAMIC EFFECTSDimming: 0 – 100%, coarse & fine controlShutter: Strobe & pulse effects, instant open and blackout

CONTROL AND PROGRAMMINGControl systems: USITT DMX512/1990 with RDMDMX channels: 3RDM compliance: ANSI/ESTA E.120Interface: Control panel with backlit LCD display

CONSTRUCTIONHousing: Cast aluminumColor: BlackProtection rating: IP20

INSTALLATIONMounting points: Adjustable bracket, surface or truss mountLocation: Indoor location onlyOrientation: AnyMinimum distance to combustible materials: 0.1 m (4 in.)Minimum distance to illuminated surfaces: 0.5 m (20 in.)

CONNECTIONSAC power input/output: Neutrik PowerConDMX/RDM in/out: 5-pin locking XLRRUSH PAR 4 UV User Manual 31

ELECTRICALAC power: 100-240 V nominal, 50/60 HzPower supply unit: Auto-ranging electronic switch modeTypical half-cycle RMS inrush current: 11.2 ARecommended Miniature Circuit Breaker when power linking: Type D**Per IEC 60898/UL489/CSA C22.2 No. 5Maximum total power consumption: 114 W

TYPICAL POWER AND CURRENT100 V, 60 Hz: 114 W, 1.2 A, PF 1.000120 V, 60 Hz: 114 W, 1.0 A, PF 0.996230 V, 50 Hz: 114 W, 0.5 A, PF 0.933Measurements made at nominal voltage. Figures are typical, not maximum, allow for a deviation of +/- 10%.

THERMALCooling: Forced air, temperature-regulatedMaximum ambient temperature (Ta max.): 40° C (104° F)Minimum ambient temperature (Ta min.): 0° C (32° F)

APPROVALSEU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493EU EMC: EN 55015, EN 55032, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547US safety: UL 1573US EMC: 47 CFR 15 Class ACanadian safety: CSA C22.2 No. 166Canadian EMC: ICES-003 Class AAustralia/NZ: RCM

INCLUDED ITEMSPower cable, 1.5 m without mains plug
