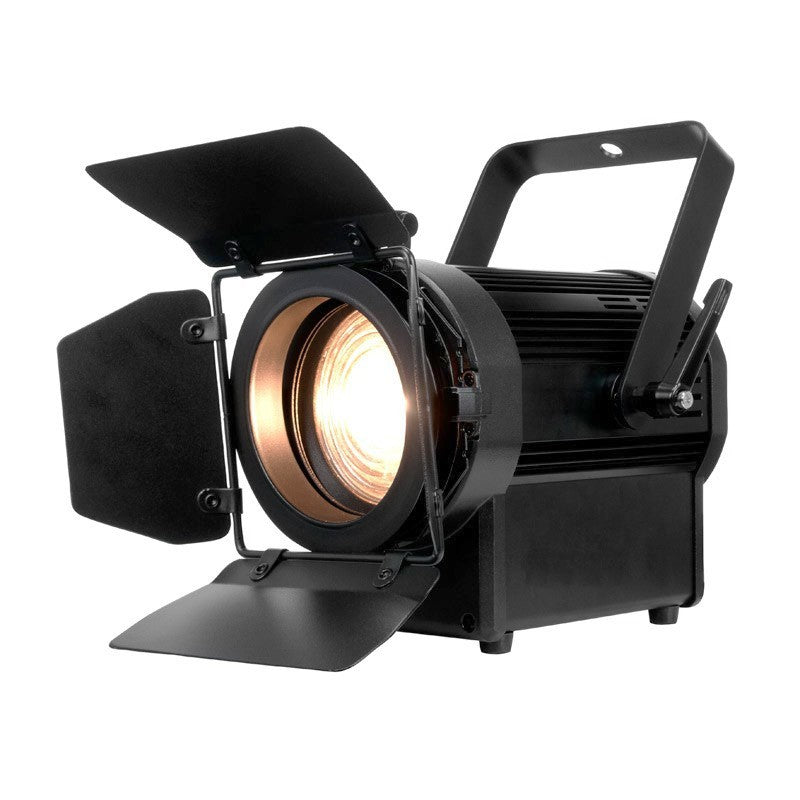

Part of the Encore stage lighting series, the Encore FR50Z lighting fixture is equipped with a 6-inch Fresnel lens and powered by a 50W LED engine. It produces a white wide, soft-edged beam for stage and theatre use at 3000K. It comes with barn doors to adjust the beam dispersion and a manual know to change the beam angle from 8 to 50 degrees.
The Encore FR50Z has a 4-button LCD operational menu, 3-pin DMX In/Out and Locking Power In/Out to daisy chain the power from one fixture to another.
|
Specifications: Source • Light Source: 1 WW COB-LED • Individual LED wattage : 50W • Average LED lifetime : approximately 50,000 hrs. • Color Temperature: 3000K • CRI: 96.9 Optics • Adjustable Beam Angle: 8-50 degrees • 6-inch/150mm Fresnel Lens Control • 2 operational Modes : Manual WW Dimmer Mode and DMX Control • 6 DMX Modes: 1, 2, 2-2, 3, 2-3 & 4-channel • RDM compatible • 16bit Electronic Dimming: 0 - 100% • 6 selectable Dim Curves (Standard, Stage, TV, Architectural, Theatre & Stage 2) • Adjustable Gamma Brightness : 1.0/2.0/2.2/2.4/2.8 • LED pulse and strobe effect • 4-button, DMX digital display on rear panel Colors • Warm White 3000K Construction • Robust extruded aluminium housing • Manual Zoom Knob • Barndoors included Electrical • Multivoltage 100-240V 50/60Hz • Power Consumption: 50W Connections • 3-pin Locking DMX In/Out connections • Locking Power In/Out connections • USB port for Firmware Update Dimensions & Weight • Dimensions (LxWxH): Without Barndoors: 232.8 x 238.05 x 298.25mm With Barndoors: 339.8 x 238.05 x 298.25mm • Weight: Without Barndoors: 3,8 kg. With Barndoors: 4,3 kg |
