- 12 x 10 watt Tri-LEDs 3-in-1 Cool White, Warm White and Amber
- Full white temperature control from Tungsten to CW (1,600 - 6,800 K)
- CRI 97 @ 2,800 K for natural colour rendering

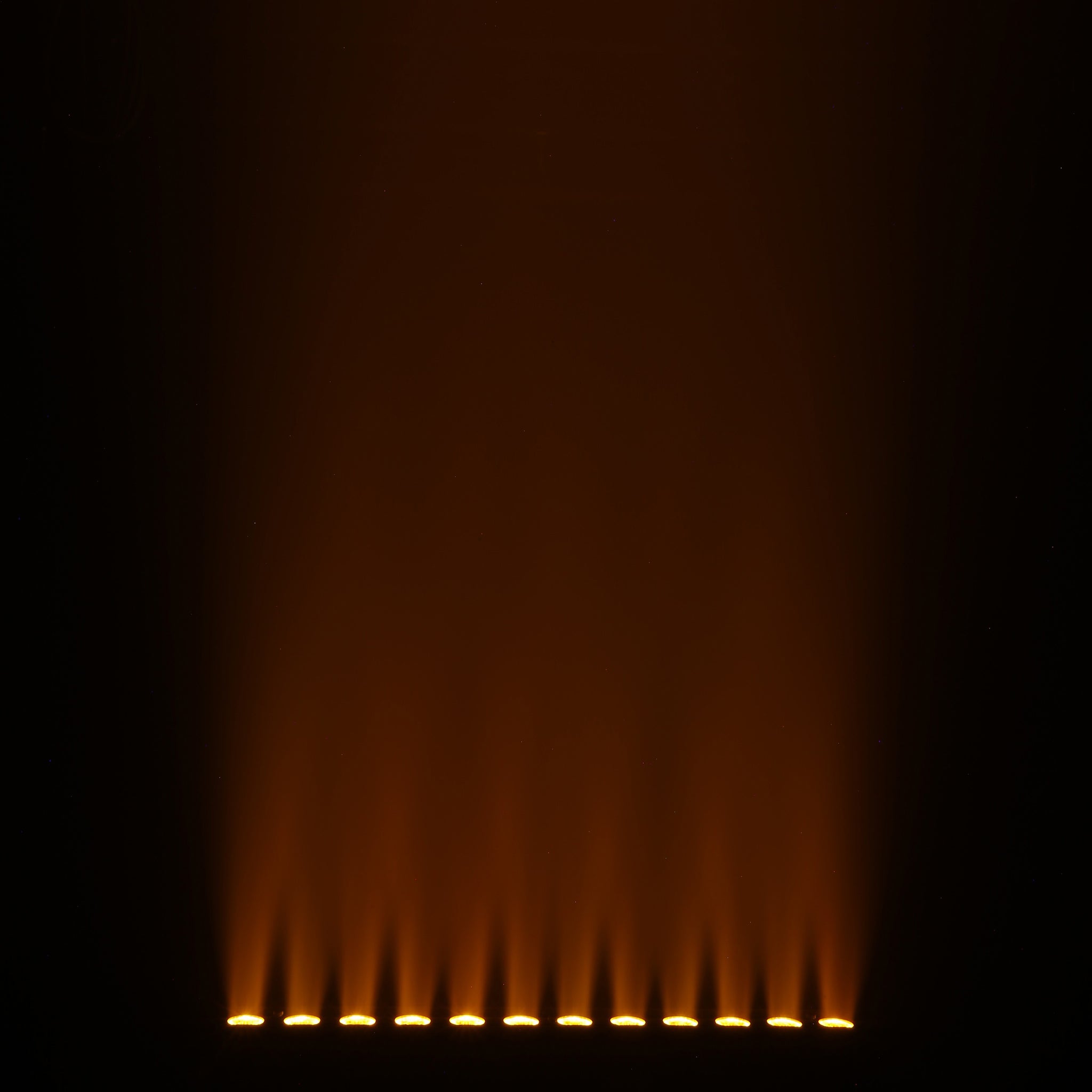

- Dim to Warm (DTW) technology to emulate halogen-style dimming

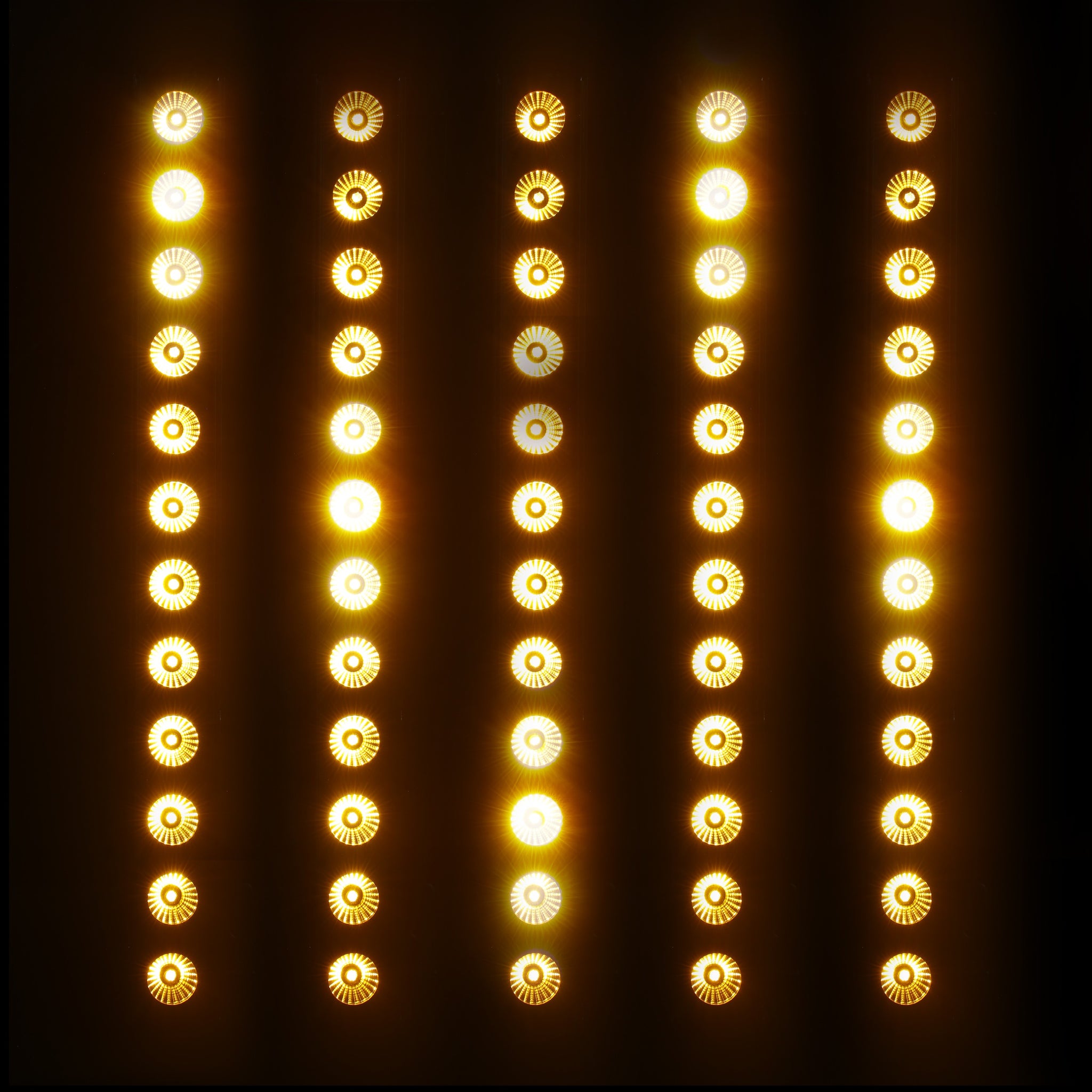

- Single pixel control for stunning chase and pixel mapping effects
- Selectable 16-bit dimming curves and response
- RDM enabled
- 9 DMX modes plus sound activation and automated operation
- Highly efficient convection cooling for noiseless operation
- Flicker free for use in TV and film applications

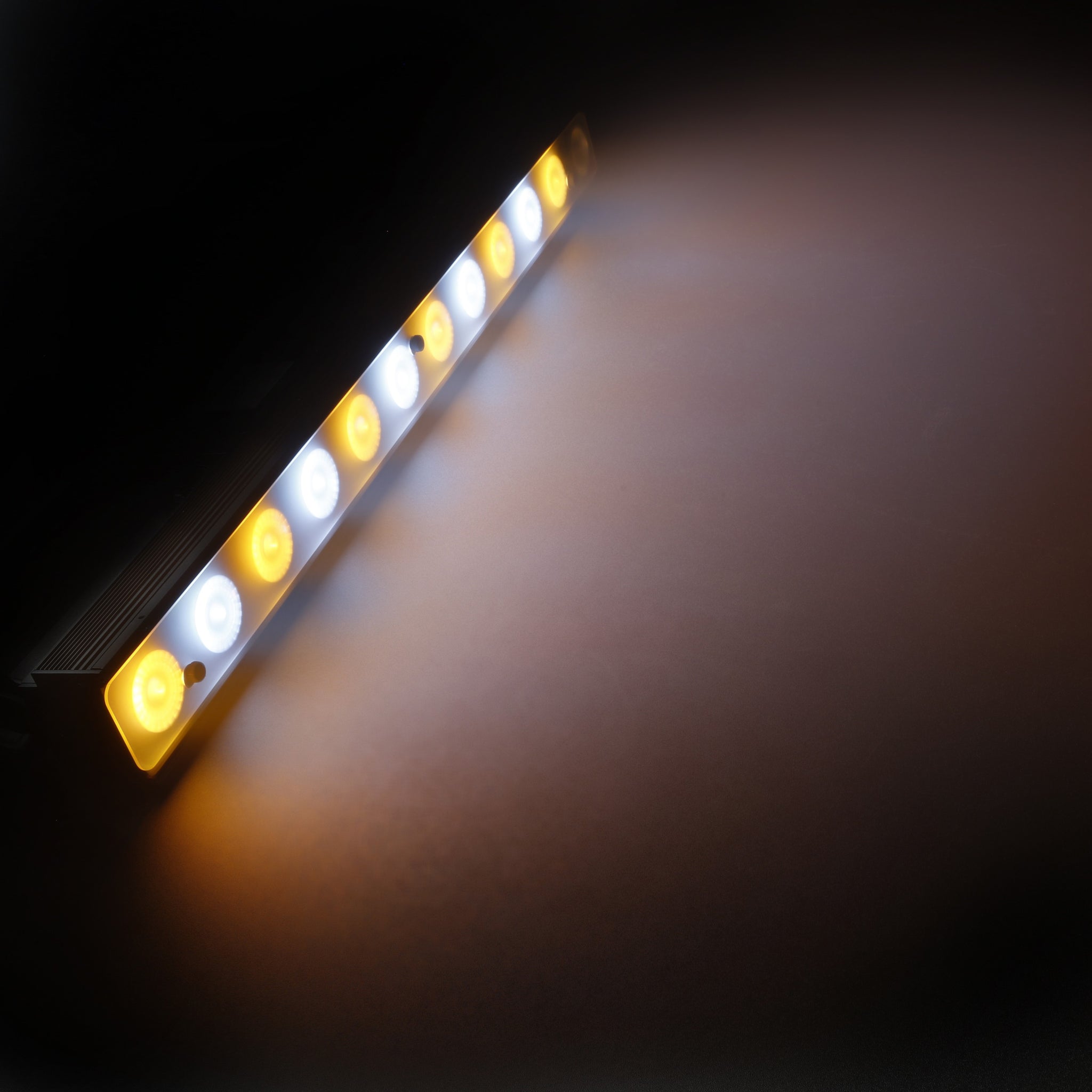

- Glare shield and frost filter included

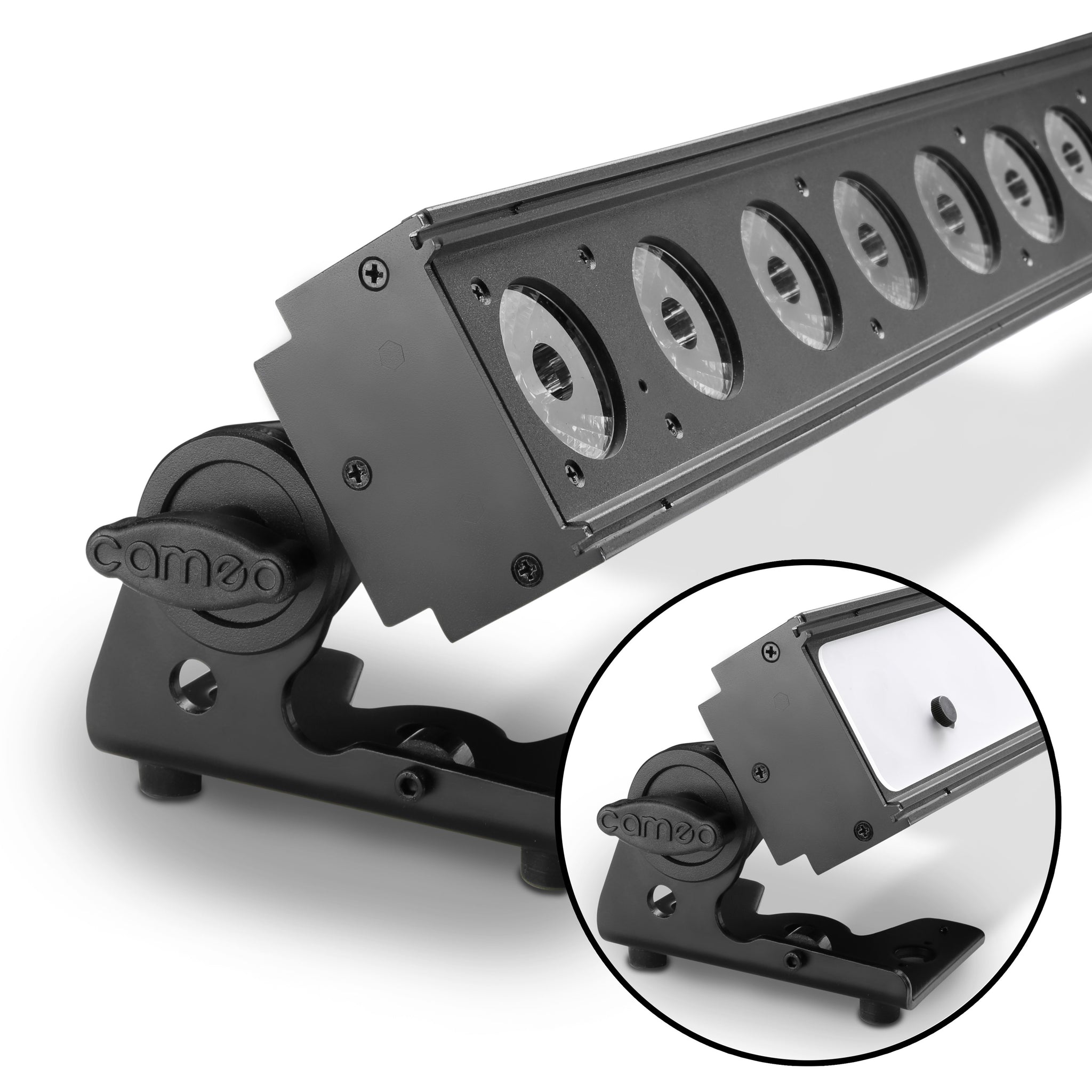

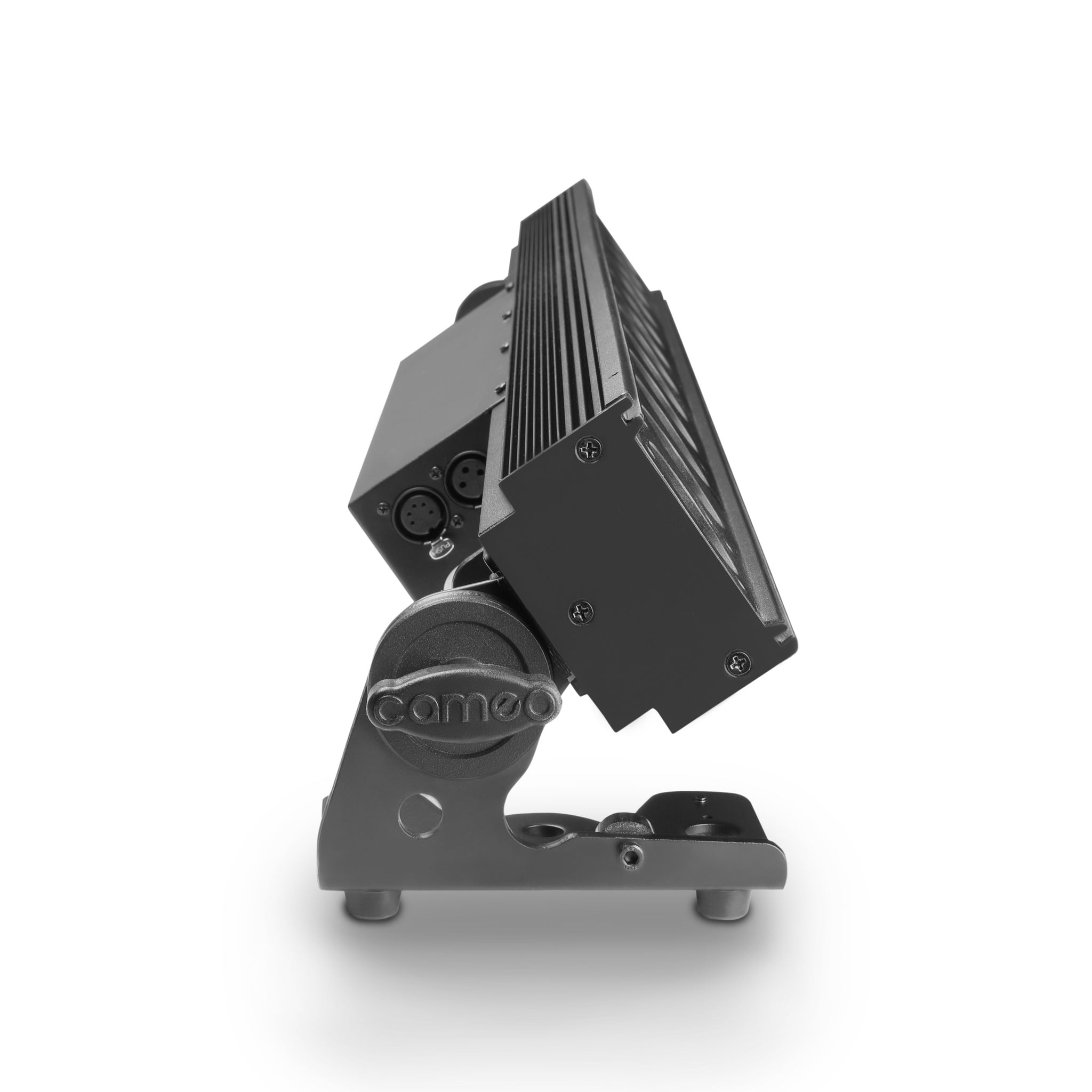

- Omega bracket set available as accessory

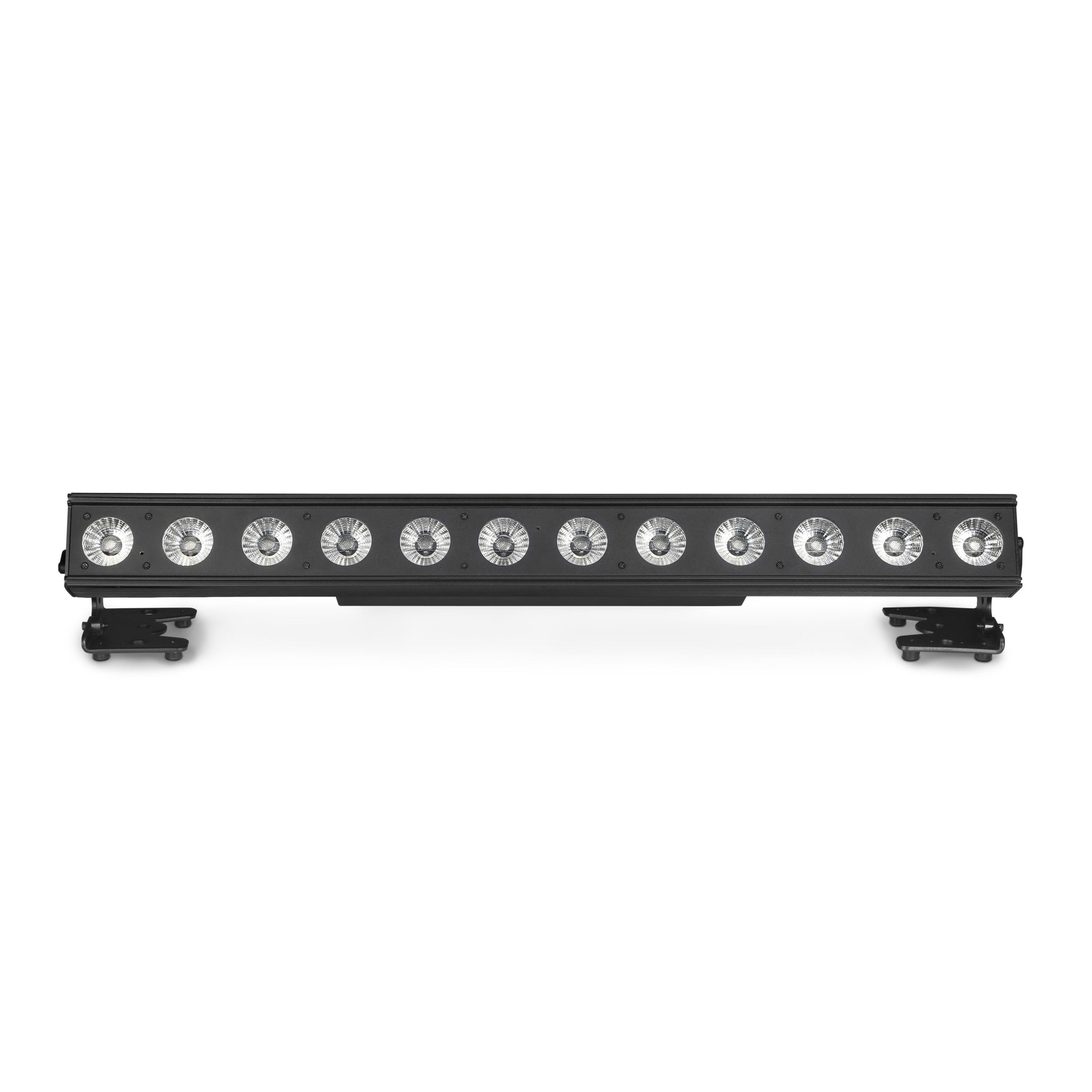

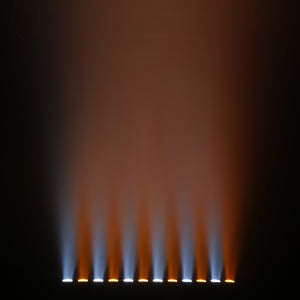

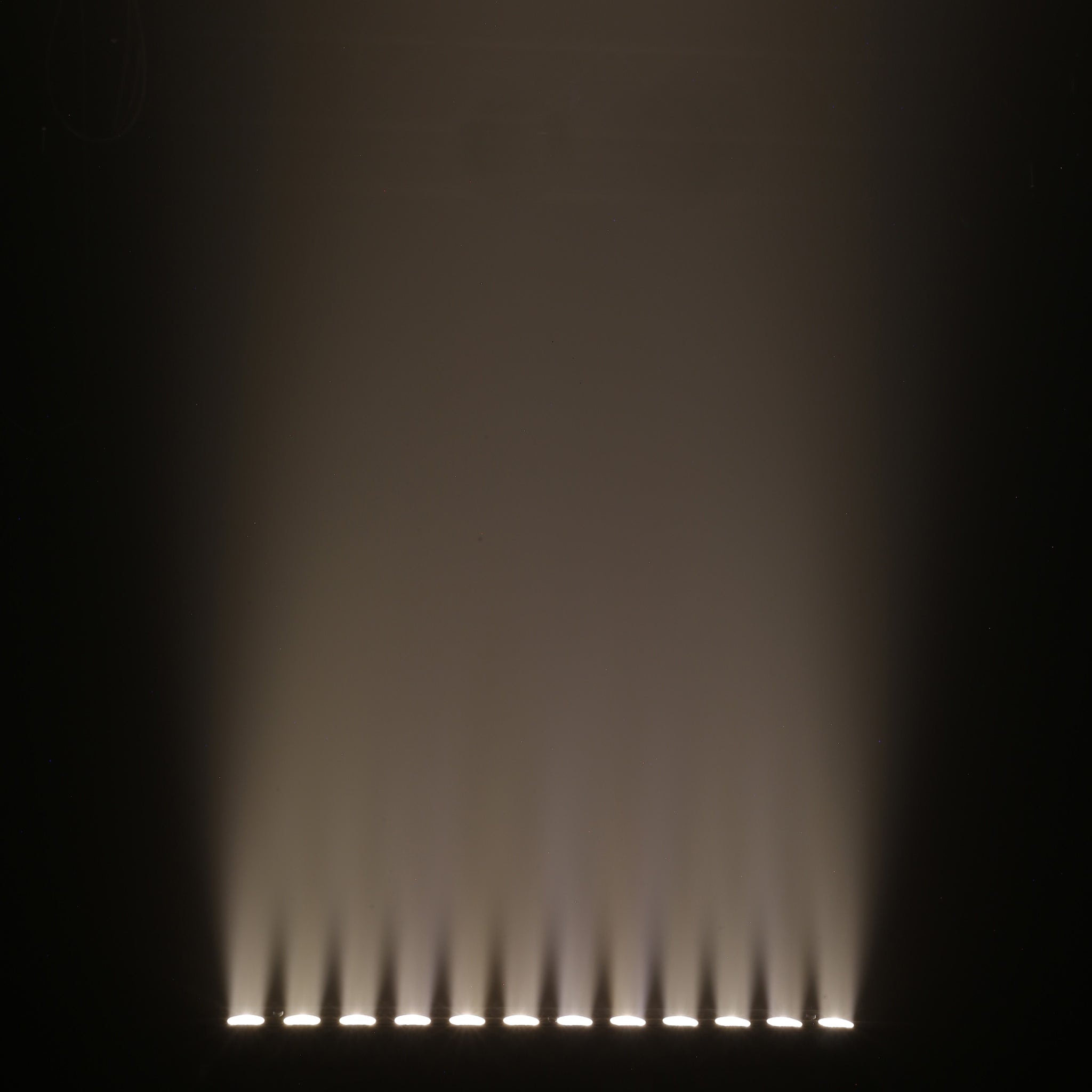

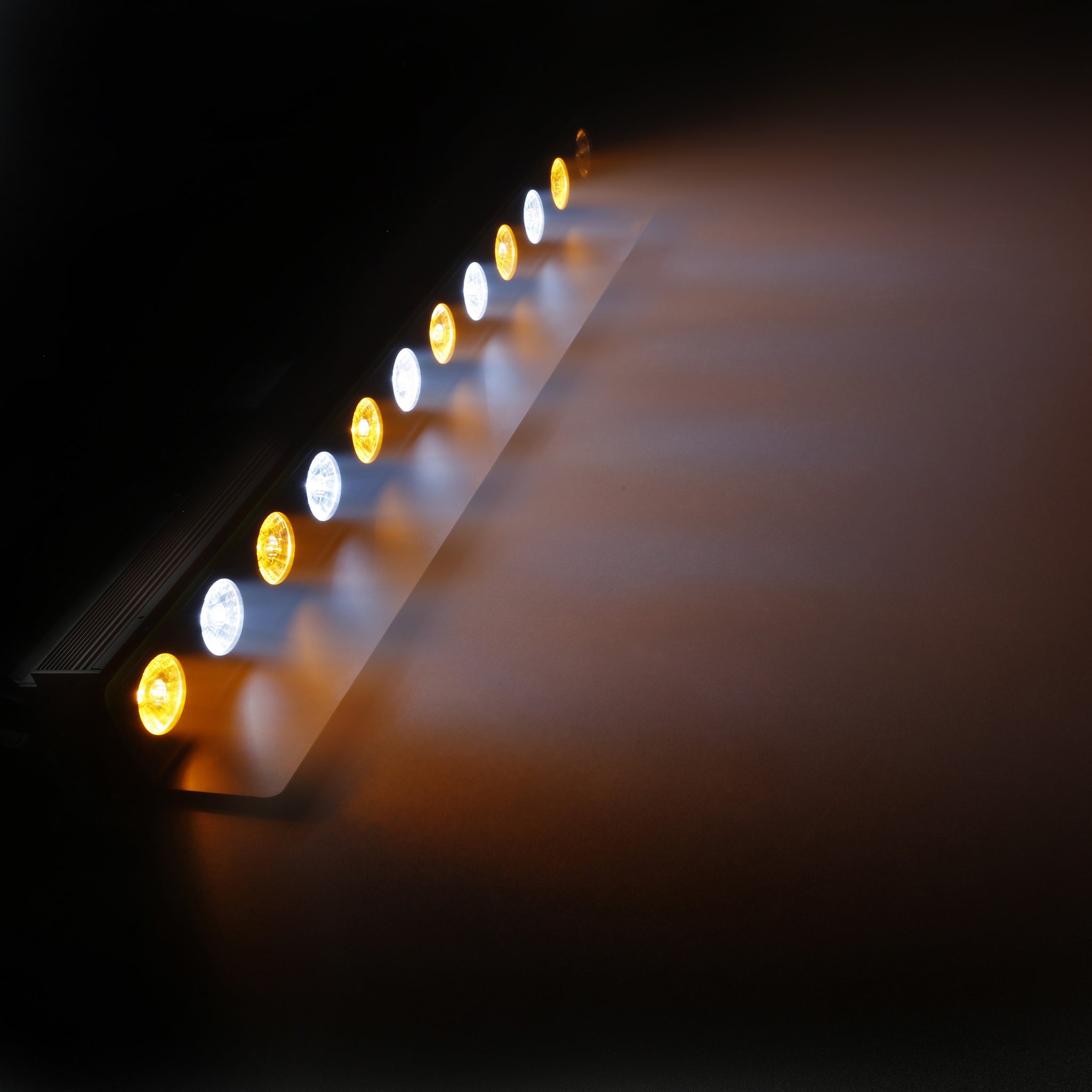

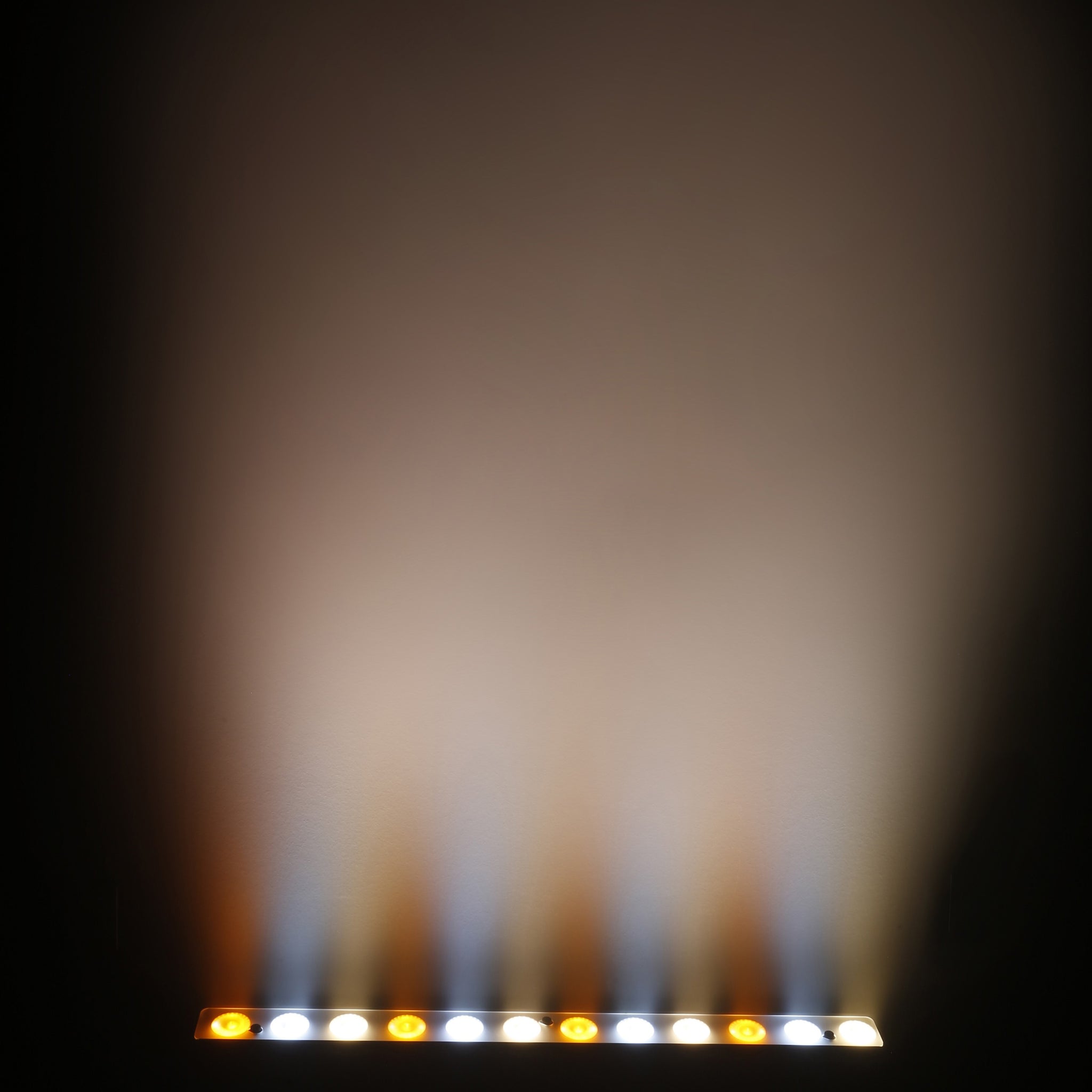

Featuring twelve 10 watt 3-in-1 cool white, warm white and amber Tri-LEDs, the Cameo PIXBAR DTW PRO permits full white temperature control from warm Tungsten white to ultra bright cool white. The professional LED bar features an 18° beam angle and Dim-to-Warm technology to emulate the smooth dimming of halogen lamps. Highly efficient convection cooling and a 3,000 Hz refresh rate ensure absolutely noiseless and flicker-free operation making it a perfect choice for TV and film applications.

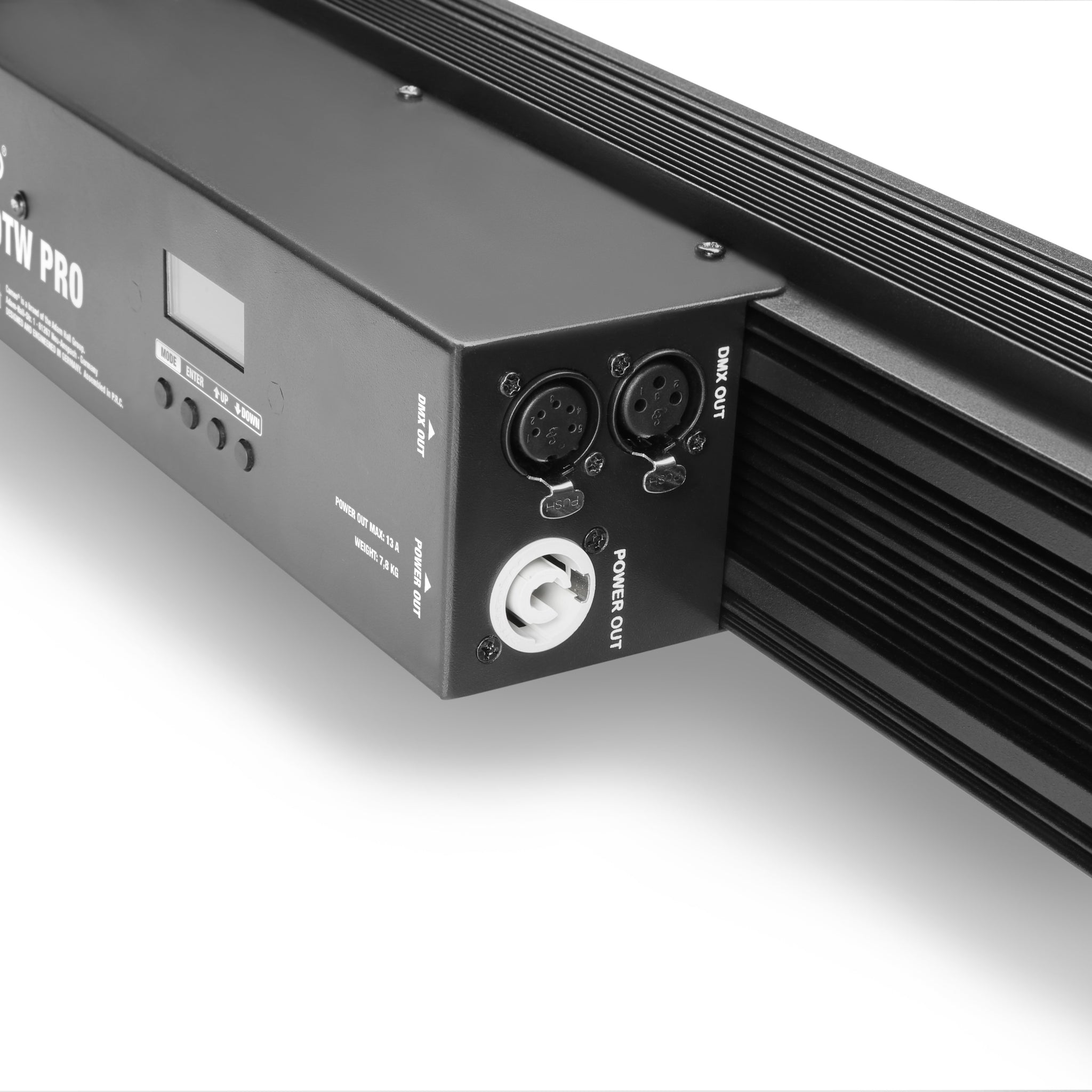

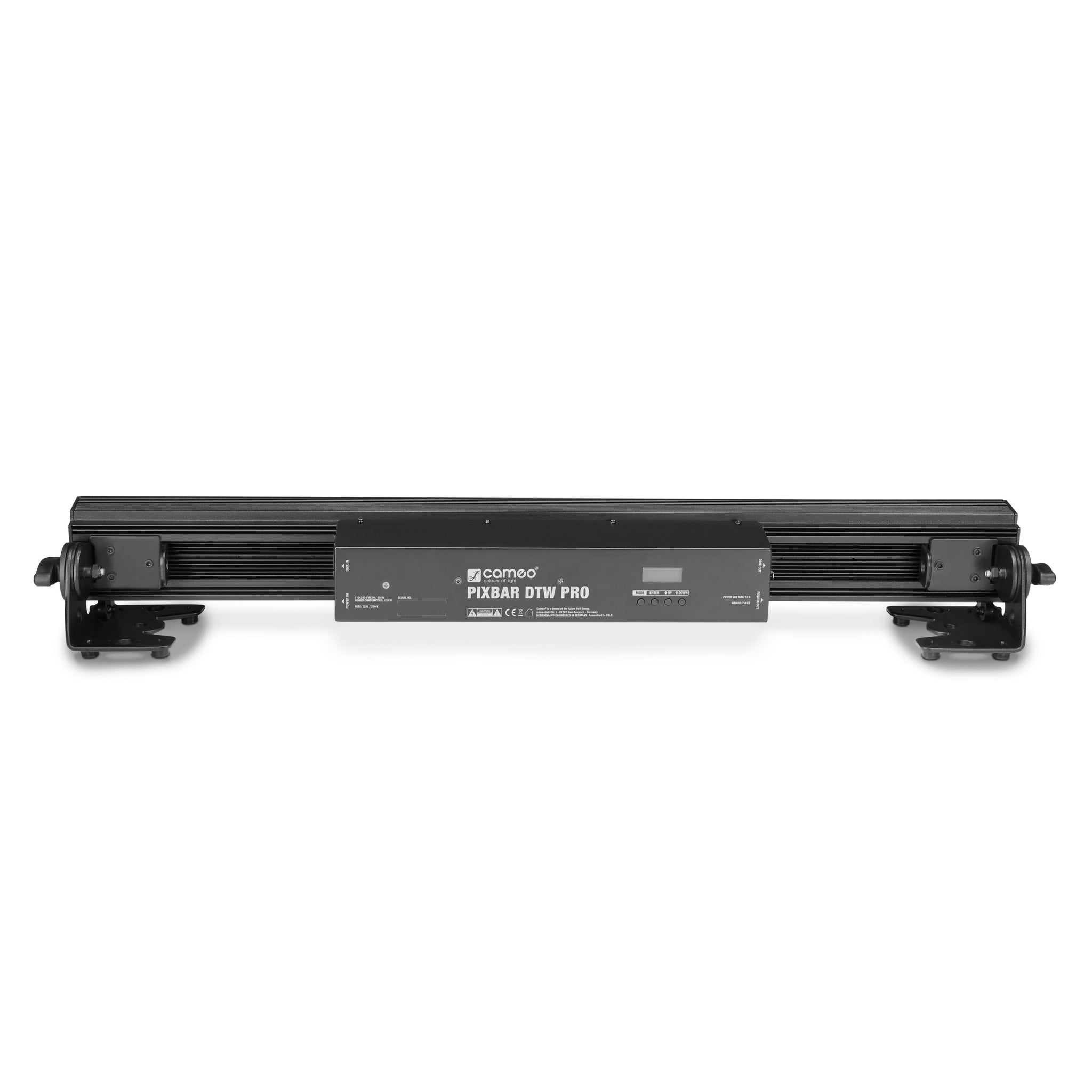

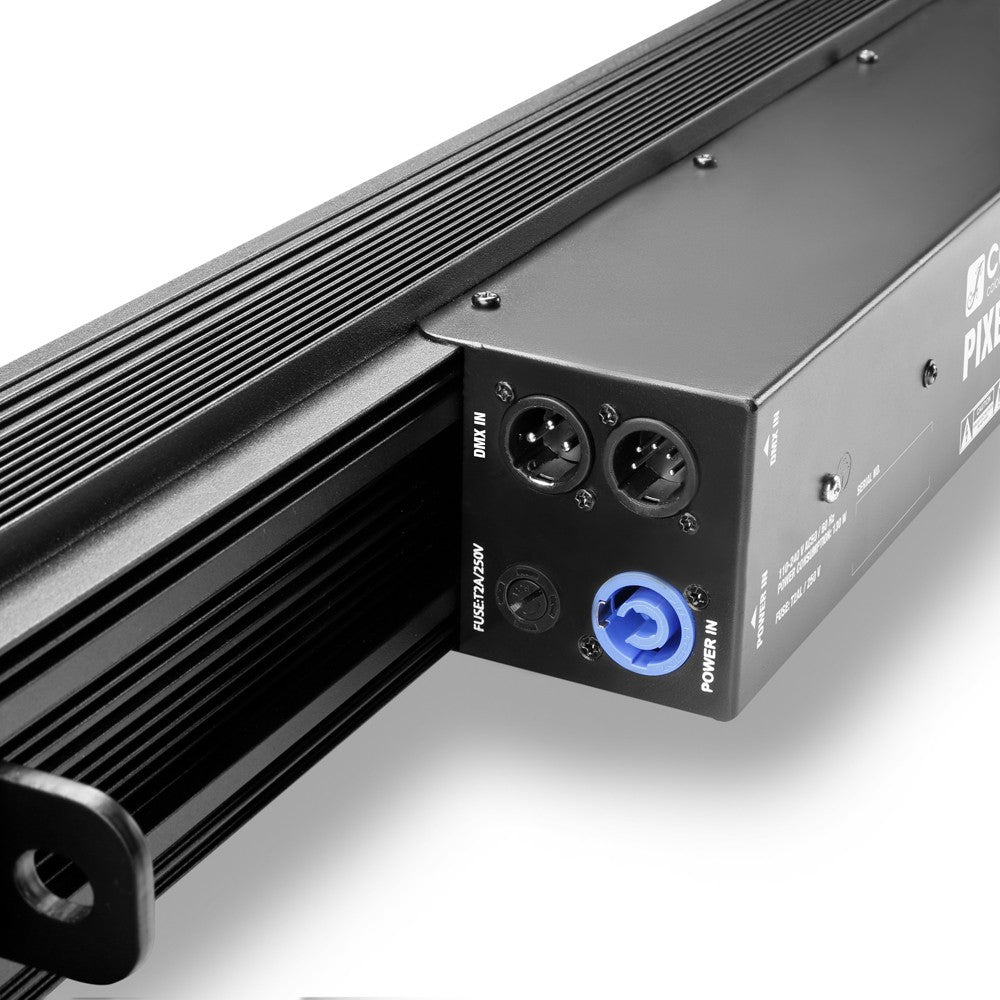

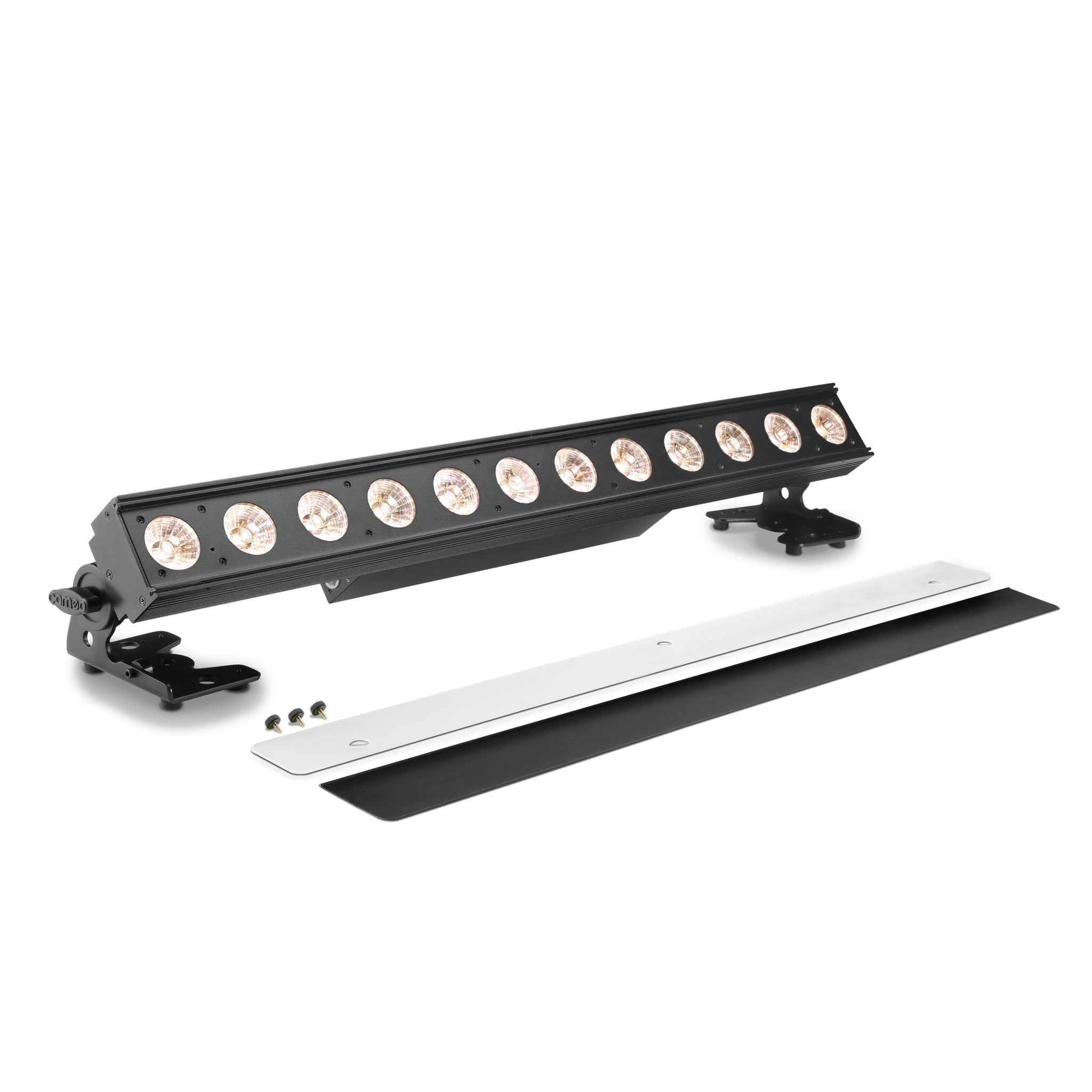

The PIXBAR DTW PRO is RDM enabled and provides 9 modes of DMX control, sound activation plus automated operation. The fixture includes single pixel control for impressive chase effects and pixel mapping, a high-speed strobe and selectable 16-bit dimming curves with adjustable response. A 4-button display enables easy configuration. The rugged aluminium housing features 3 and 5-pin DMX and Neutrik powerCON inputs and outputs that enable convenient daisy chaining. The PIXBAR DTW PRO comes with a glare shield and frost filter if softer washes are called for.
Tipo di prodotto | Barre LED |
Tipo | Washer |
Spettro cromatico | Bianco caldo , Bianco freddo , Giallo |
Numero di LED | 12 |
Tipo di LED | 10 W (ca. 50000 operating hours) |
Frequenza di ripetizione | 3000 Hz |
Angolo di proiezione | 18° Beam, 30° Beam Field (without Diffusor) ° |
Lente | PE |
Ingresso DMX | Presa XLR maschio a 3 poli |
Uscita DMX | Presa XLR femmina a 3 poli |
Modalità DMX | 13 canali , 3 canali , 36 canali , 6 canali , 9 canali , A 1 canali , A 2 canali |
Funzioni DMX | Dim to Warm , Dimmer , Modalità Auto , Strobe |
Modalità standalone | Modalità master / slave , Static |
Elementi di comando | Down , Enter , Mode , Up |
Indicatori | Schermo a cristalli liquidi |
Alimentazione | Glare Shield , Neutrik Power Cable |
Potenza assorbita | 130 W |
Collegamento alimentazione elettrica | Neutrik powerCON IN/OUT |
Materiale cassa | Alluminio |
Colore cassa | Nero |
Classe di protezione IP | 20 |
Raffreddamento | Convection Cooling |
Flusso luminoso | 3240 lm |
Efficienza | 25 lm/W |
Temperatura di esercizio | -15 - 45 °C |
Larghezza | 93 mm |
Altezza | 130 mm |
Lunghezza | 900 mm |
Peso | 7,8 kg |
Accessori (forniti in dotazione) | FROST Filter , Glare Shield , Neutrik Power Cable |
